Manual auxiliary connector, ComPacT NSX100 to NSX630, fixed and moving part, withdrawable circuit breakers, 1 to 9 wires

Old price: $203.94 INC GST
$166.82 INC GST
Available for Shipping : 08-Dec-2025
Manual auxiliary connector, ComPacT NSX100 to NSX630, fixed and moving part, withdrawable circuit breakers, 1 to 9 wires
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet

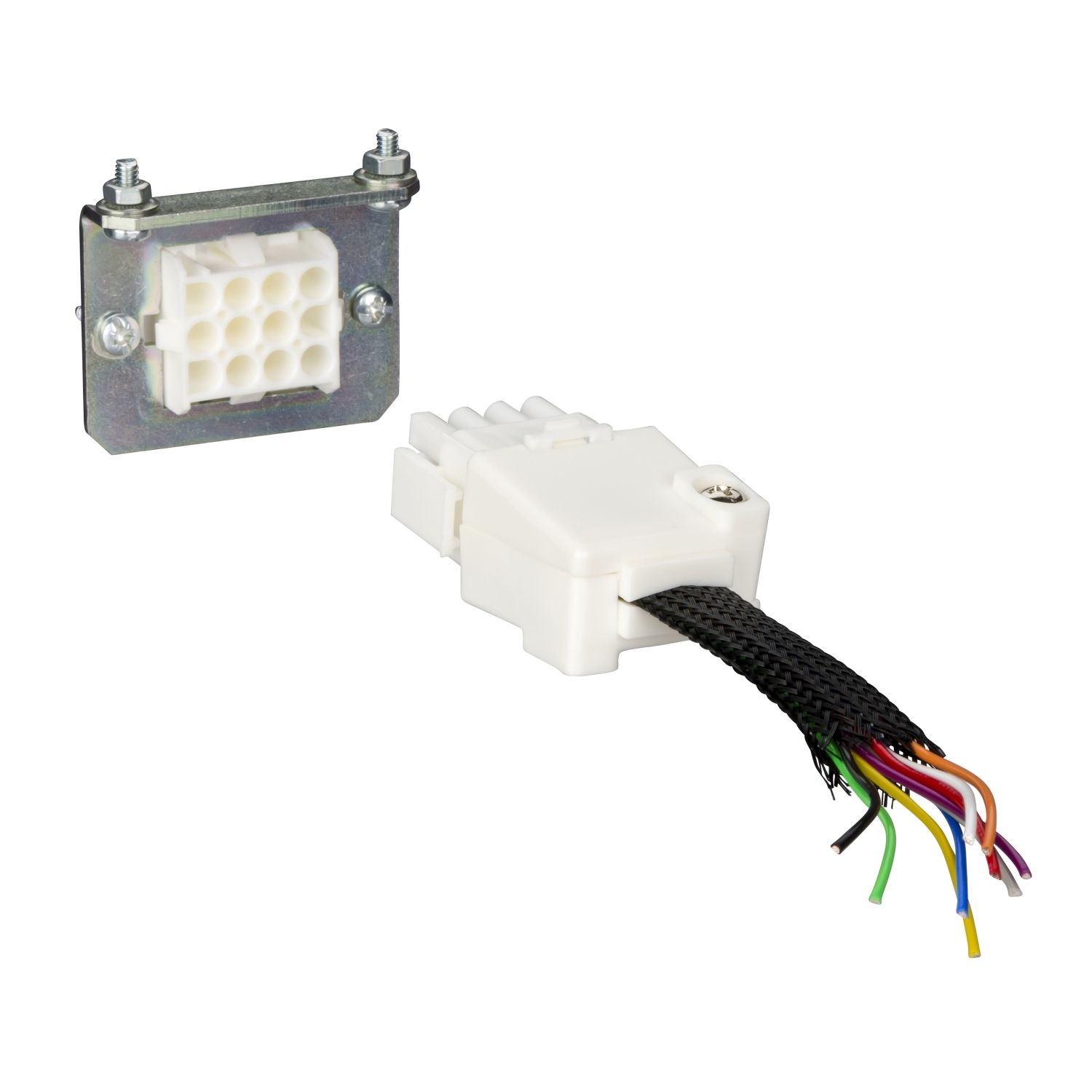

This is a manual connector for Compact NSX 100 to 630 auxiliaries connection. It is adapted for withdrawable circuit breakers. It is made of a fixed and a moving part with 9 wires. The terminal block has numbered terminals for the connection of wires. The wire section is 1.5mm² for auxiliary contacts and voltage releases. The wire section is 2.5mm² for motor mechanisms. The circuit breaker can be equipped with 3 manual connectors with 9 wires each. When the withdrawable circuit breaker is in disconnected position, the auxiliaries remain connected.

Products specifications

Attribute name Attribute value
Main
Device short name 9-wire auxiliary connector
Device application wiring
Range ComPacT
Range of product ComPact NSX400...630 DC, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX100...250, ComPacT NSX400...630 DC new generation, ComPacT NSX100...250 DC new generation, ComPacT NSX400...630 new generation, ComPacT NSX100...250 new generation
Product or component type connector kit
Range compatibility ComPact ComPact NSX DC, ComPact ComPact NSX, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX new generation
Complementary
Total number of wires 9
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 25.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 152.400 g
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.448 kg
