SKU:

LV429236

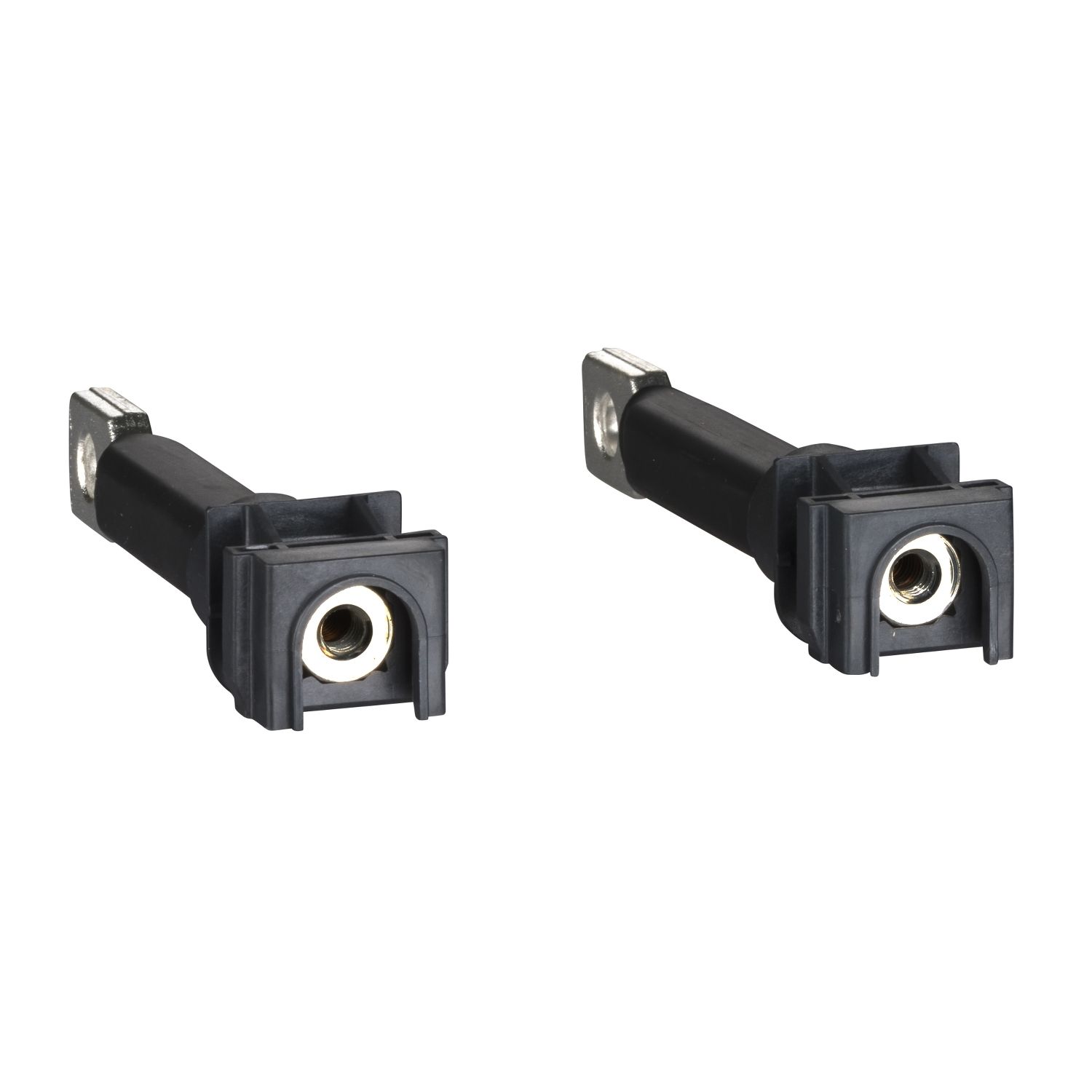

Long rear connections, ComPacT NSX, EasyPact CVS, 250A, set of 2 parts

Old price: $110.66 INC GST

Price: $90.52 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

Long rear connections, ComPacT NSX, EasyPact CVS, 250A, set of 2 parts

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Meet your needs with flexibility to achieve system efficiency during the design phase

ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters

Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection

Multiple international standards certificated

Green Premium with recognized environmental claims

Be the first to review this product

Manufacturer: Schneider Electric

Environmental Disclosure

Instruction sheet

Catalog

User guide

Product Page Link

Product Data Sheet

These accessories are short rear connections for Compact NSX 100/160/250 and EasyPact CVS 100/160/250. The rear connection is simply fitted to the device connection terminals. Device mounting on a backplate with suitable holes enables rear connection. The length is approximately 88mm. The rated current is up to 250 A. They are sold by set of 2 parts.

Products specifications

Attribute name	Attribute value
Main
Poles description	3P, 4P
[In] rated current	250-250 A
Range	ComPacT
Product or component type	long rear connection
Accessory / separate part category	connection accessory
Range compatibility	ComPacT new generation Compact INV, ComPacT new generation ComPacT INS, ComPacT new generation EasyPact CVS250, ComPacT new generation EasyPact CVS160, ComPacT new generation EasyPact CVS100, ComPacT new generation Compact NSX250 DC, ComPacT new generation Compact NSX160 DC, ComPacT new generation Compact NSX100 DC, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
Range of product	ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Complementary
Shape	long
Location of connection	rear
Quantity per set	set of 2
Localisation on device	top and bottom
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.400 cm
Package 1 Width	11.200 cm
Package 1 Length	13.200 cm
Package 1 Weight	275.200 g
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	10.500 cm
Package 2 Width	20.000 cm
Package 2 Length	35.000 cm
Package 2 Weight	3.522 kg
Unit Type of Package 3	3
Number of Units in Package 3	60
Package 3 Height	30.000 cm
Package 3 Width	40.000 cm
Package 3 Length	60.000 cm
Package 3 Weight	17.272 kg
