SKU:

LV429223

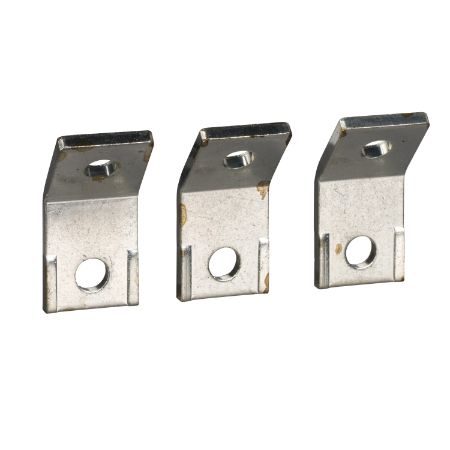

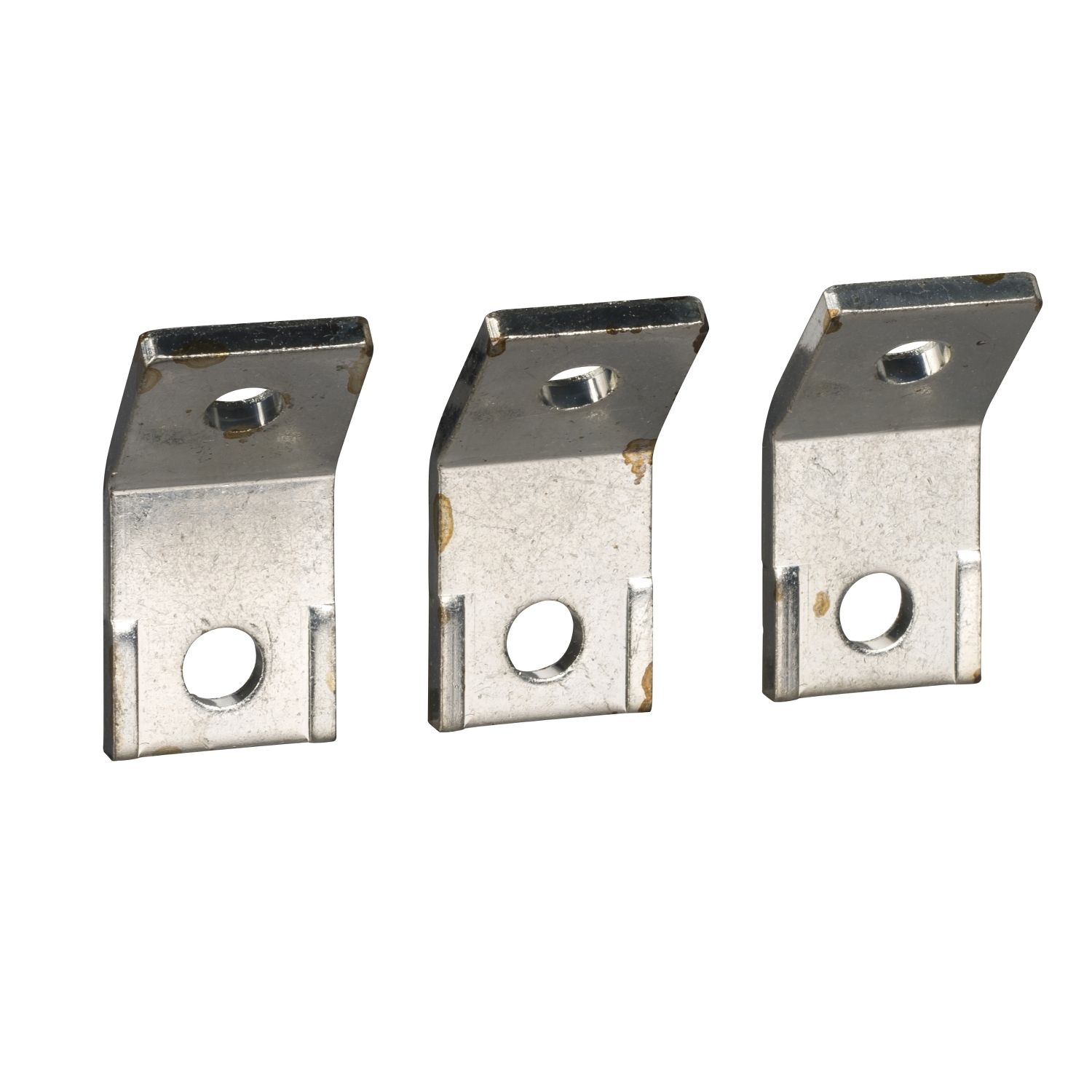

Terminal extensions, ComPacT NSX 100/160/250, 45 degrees, set of 3 parts

$66.91
Available for Shipping : 05-Jan-2025
Terminal extensions, ComPacT NSX 100/160/250, 45 degrees, set of 3 parts
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Manufacturer: Schneider Electric
These accessories are 45° terminal extensions for Compact NSX 100/160/250. These terminal extensions have anti-rotation ribs and can be attached to the standard terminals. The rated current is up to 250 A. These terminal extensions are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 3 parts.

Products specifications

Attribute name Attribute value
Main
Mounting position 45°
Quantity per set 3
Poles description 3P
Range ComPacT
Product or component type terminal extension
Accessory / separate part category connection accessory
Range compatibility ComPact Compact NSX250 DC, ComPact Compact NSX160 DC, ComPact Compact NSX100 DC, ComPact ComPact NSX250, ComPact ComPact NSX160, ComPact ComPact NSX100, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX250 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation
Range of product ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
Complementary
[In] rated current 250-250 A
Connection pitch 35 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.5 cm
Package 1 Width 11.2 cm
Package 1 Length 11.4 cm
Package 1 Weight 235.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 12.135 kg
