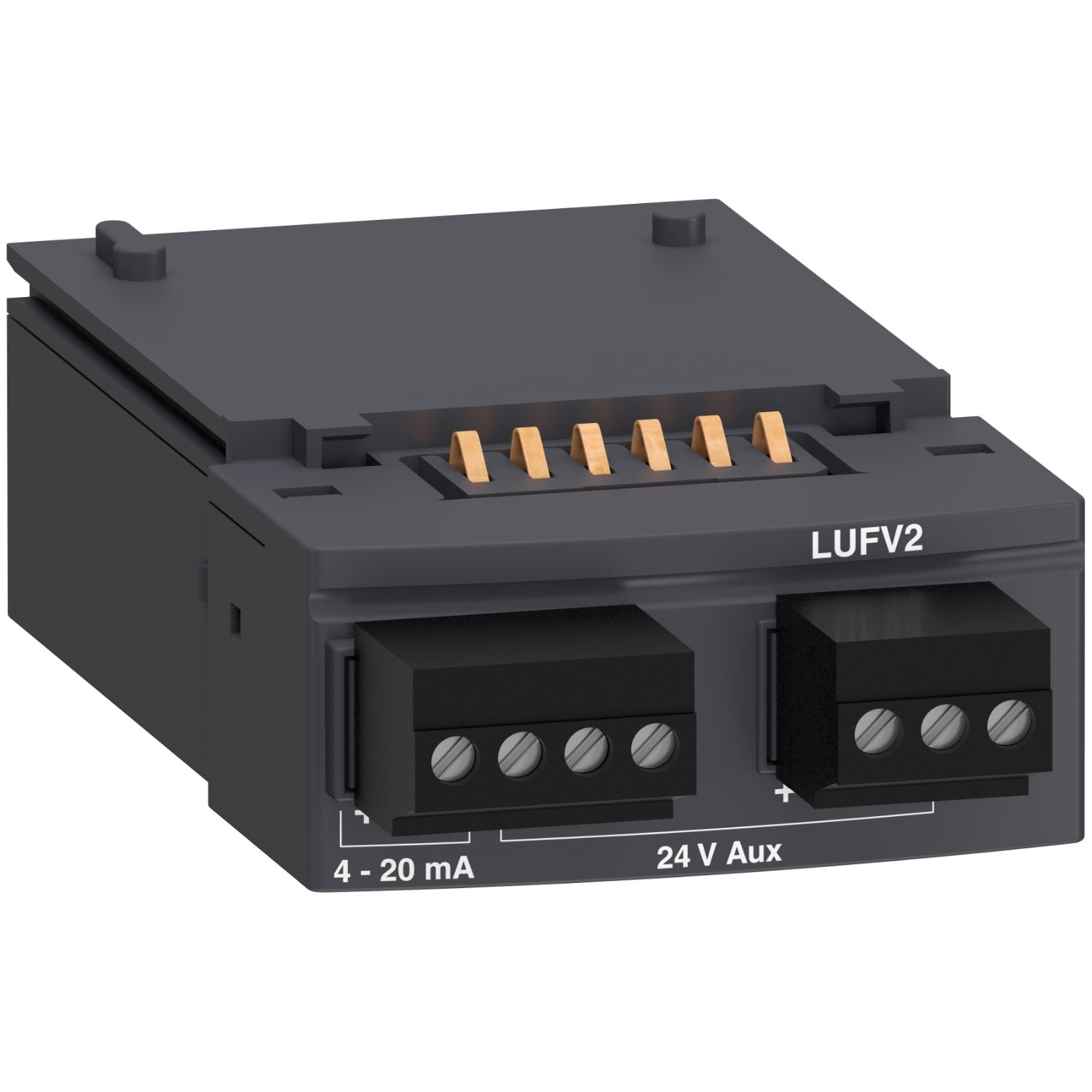

Picture of Function module, TeSys Ultra, 24VDC, front side, indication of motor load 4 to 20 mA
SKU:

LUFV2

Function module, TeSys Ultra, 24VDC, front side, indication of motor load 4 to 20 mA

Old price: $455.95 INC GST
$387.56 INC GST
Available for Shipping : 12-Jan-2026
Function module, TeSys Ultra, 24VDC, front side, indication of motor load 4 to 20 mA
  • To be inserted in the cavity of a power base provided for the auxiliary modules
  • requires an external power supply
  • Modular, plug & play structure helps you to perform quick maintenance
  • Direct access to detailed information for every motor starter of your installation
  • Advanced motor management system
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for motor load monitoring. It provides a 4-20mA output signal, image of the load ratio, to be connected to a load impedance 100 Ohm typical (500 Ohm max). It measures the phase currents and computes the ratio I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD, and of 0 to 3 for LUCC control units. It requires an external power supply 24V DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LUF
Product compatibility LUCD, LUCB, LUCM, LUCC
Range TeSys
Product or component type function module
Range of product TeSys Ultra
Complementary
Tightening torque 0.2-0.25 N.m - with screwdriver 2.5 mm flat
[Us] rated supply voltage 24 V DC
Compatibility code LUF
Load impedance ohmic <= 500 Ohm, 100 Ohm typical
Mounting mode plug-in
Measurement accuracy +/- 6 % with advanced control unit, +/- 10 % with multifunction control unit - resolution: 1 % of Ir
Function available indication of motor load
Mounting location front side
Net weight 0.05 kg
Connections - terminals screw clamp terminals 2 cable(s) 0.5-0.5 mm² flexible with cable end, screw clamp terminals 2 cable(s) 0.25-0.34 mm² flexible with cable end, screw clamp terminals 2 cable(s) 0.14-0.75 mm² flexible without cable end, screw clamp terminals 2 cable(s) 0.14-0.5 mm² rigid without cable end, screw clamp terminals 1 cable(s) 0.25-1 mm² flexible with cable end, screw clamp terminals 1 cable(s) 0.25-0.5 mm² flexible with cable end, screw clamp terminals 1 cable(s) 0.14-1 mm² rigid without cable end, screw clamp terminals 1 cable(s) 0.14-1 mm² flexible without cable end
Analogue output current 4-20 mA
Associated cable type AWG 26...AWG 16
Connection pitch 3.81 mm
Type of output signal value of I average/Ir ratio within the range of 0 to 3 for LUCC, value of I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.500 cm
Package 1 Width 3.300 cm
Package 1 Length 4.700 cm
Package 1 Weight 50.000 g
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.035 kg
