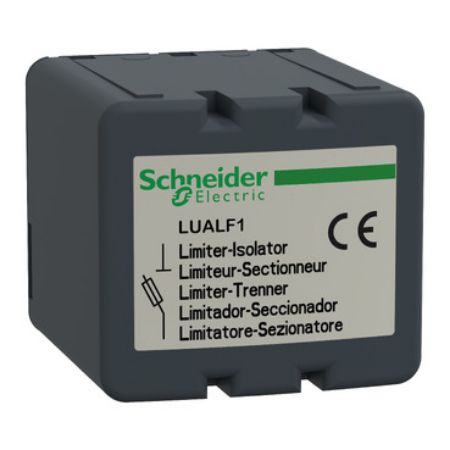

Picture of Limiter cartridge, TeSys Ultra, activation 50kA, 130kA at 440V, for use with limiter disconnector LUALB1
SKU:

LUALF1

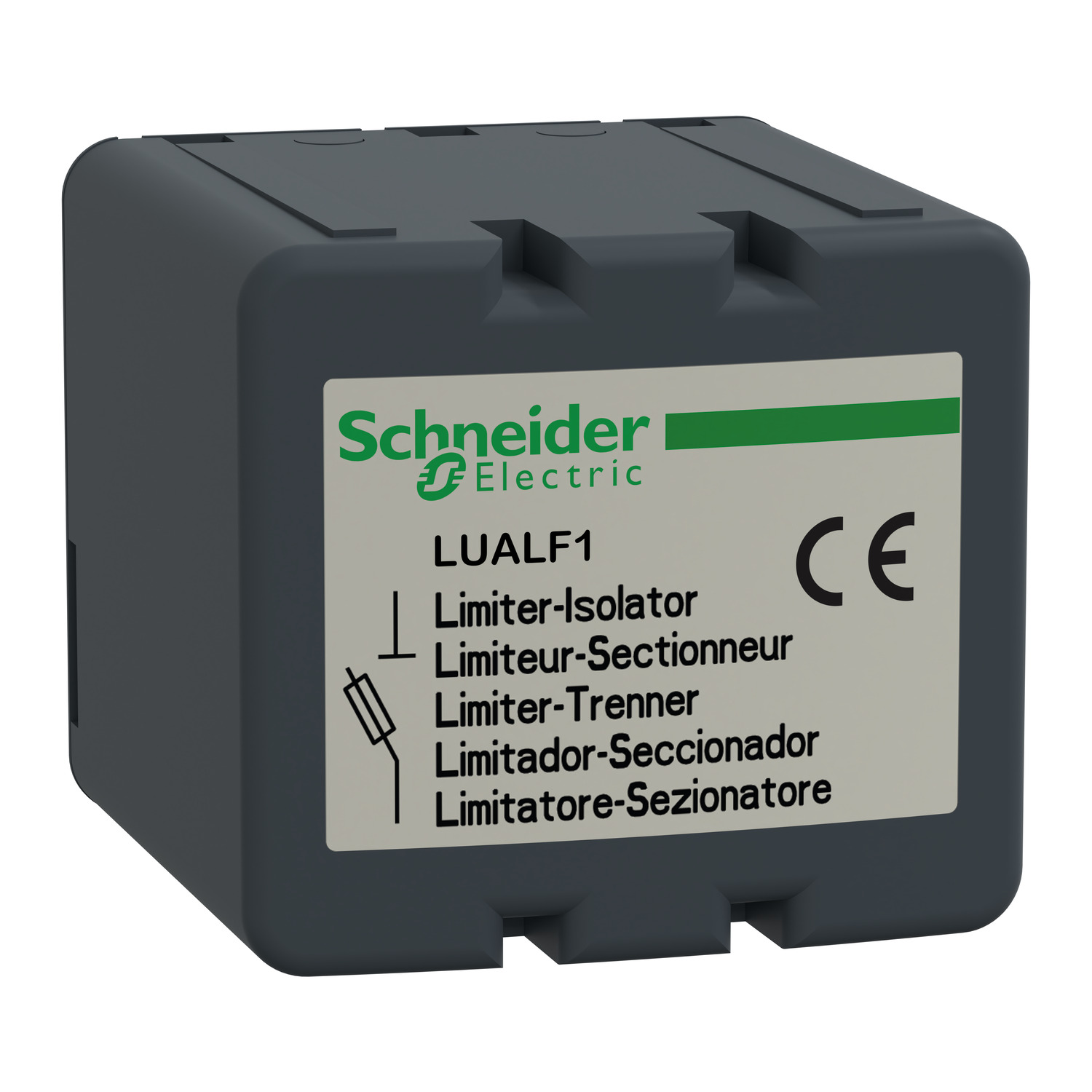

Limiter cartridge, TeSys Ultra, activation 50kA, 130kA at 440V, for use with limiter disconnector LUALB1

Old price: $391.05 INC GST
$332.39 INC GST
Available for Shipping : 12-Jan-2026
Limiter cartridge, TeSys Ultra, activation 50kA, 130kA at 440V, for use with limiter disconnector LUALB1
  • Mounted directly on the upstream terminals of a power base
  • Increases the starter controller ability to withstand the short circuit current
  • Modular, plug & play structure helps you to perform quick maintenance
  • Direct access to detailed information for every motor starter of your installation
  • Advanced motor management system
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
TeSys U short circuit current limiter block to be connected in series and upstream of a TeSys U starter controller. It increases the starter controller ability to withstand the short circuit current from 50 kA to 130 kA under 400 V. It includes a limiter cartridge LUALF1. To be mounted directly on the upstream terminals of a power base, it must be connected to one power base only. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LUA
Product compatibility LUALB1
Range TeSys
Product or component type limiter cartridge
Range of product TeSys Ultra
Complementary
Breaking capacity 130 kA at <= 440 V, 70 kA at 690 V
Activation threshold 50 kA
Compatibility code LUA
Mounting mode direct
Net weight 0.135 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.6 cm
Package 1 Width 4.7 cm
Package 1 Length 4.5 cm
Package 1 Weight 132 g
