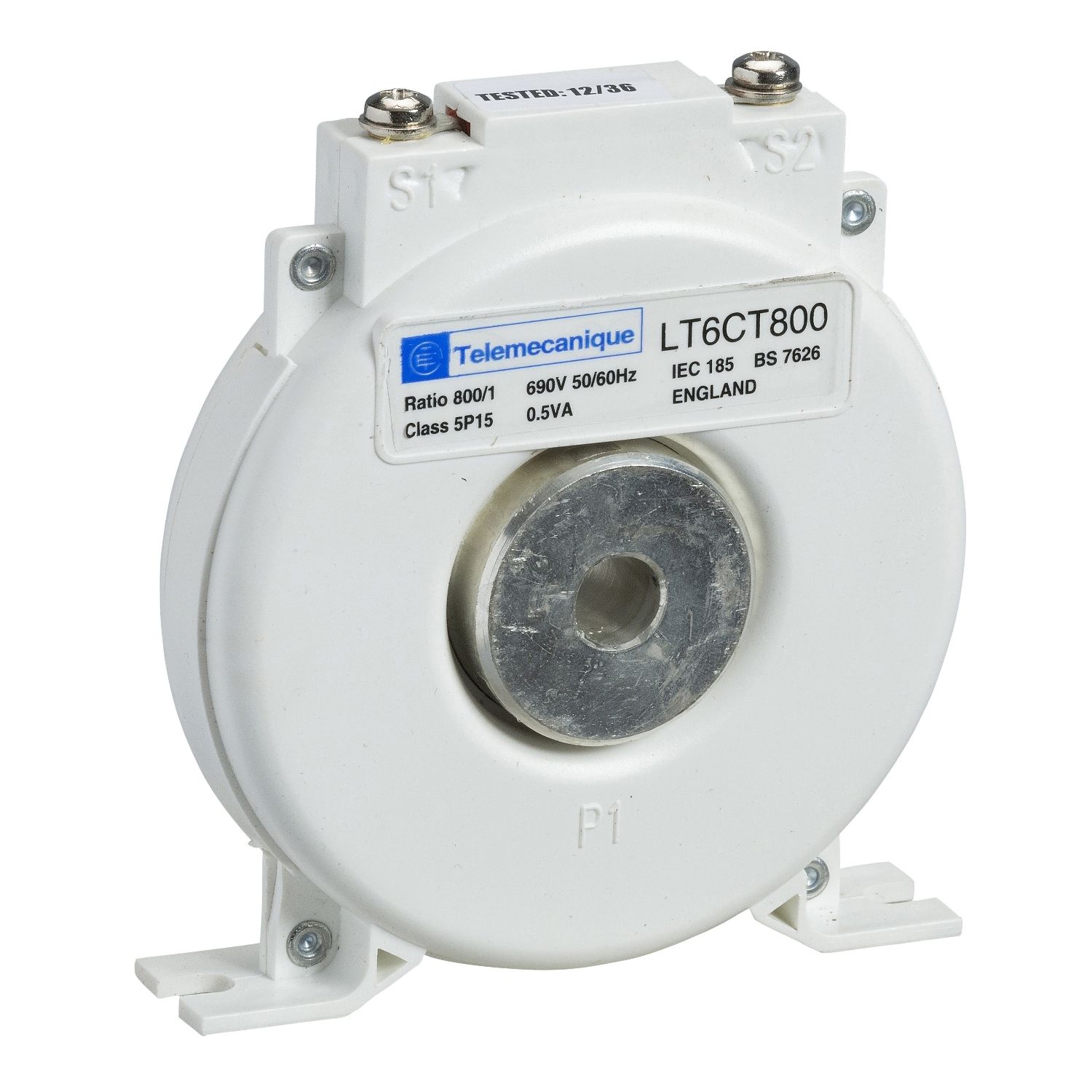

Picture of Current transformer, TeSys LT6, 800:1, class 5P accuracy, diameter 10mm
SKU:

LT6CT8001

Current transformer, TeSys LT6, 800:1, class 5P accuracy, diameter 10mm

Old price: $676.50 INC GST
$426.20 INC GST
Available for Shipping : 12-Jan-2026
Current transformer, TeSys LT6, 800:1, class 5P accuracy, diameter 10mm
  • Flexible multifunction protection
  • Can be configured locally or remotely
  • Intelligent protector
  • Ideal for highly demanding motor protection environment
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
User guide
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LT6CT
Range TeSys
Product or component type current transformer
Range compatibility TeSys TeSys T motor controller
Complementary
Depth 25 mm
Width 95 mm
Precision limit factor 15
Compatibility code LT6CT
Accuracy class class 5P
Cable cross section 300-300 mm²
Current transformer ratio 800/1
Net weight 0.68 kg
[Ui] rated insulation voltage 690 V
Diameter 10 mm
Height 107 mm
Environment
Maximum ambient air temperature for operation 50 °C
Standards BS 7626, IEC 60185
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 12.500 cm
Package 1 Length 10.600 cm
Package 1 Weight 735.000 g
Unit Type of Package 2 2
Number of Units in Package 2 14
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.964 kg
