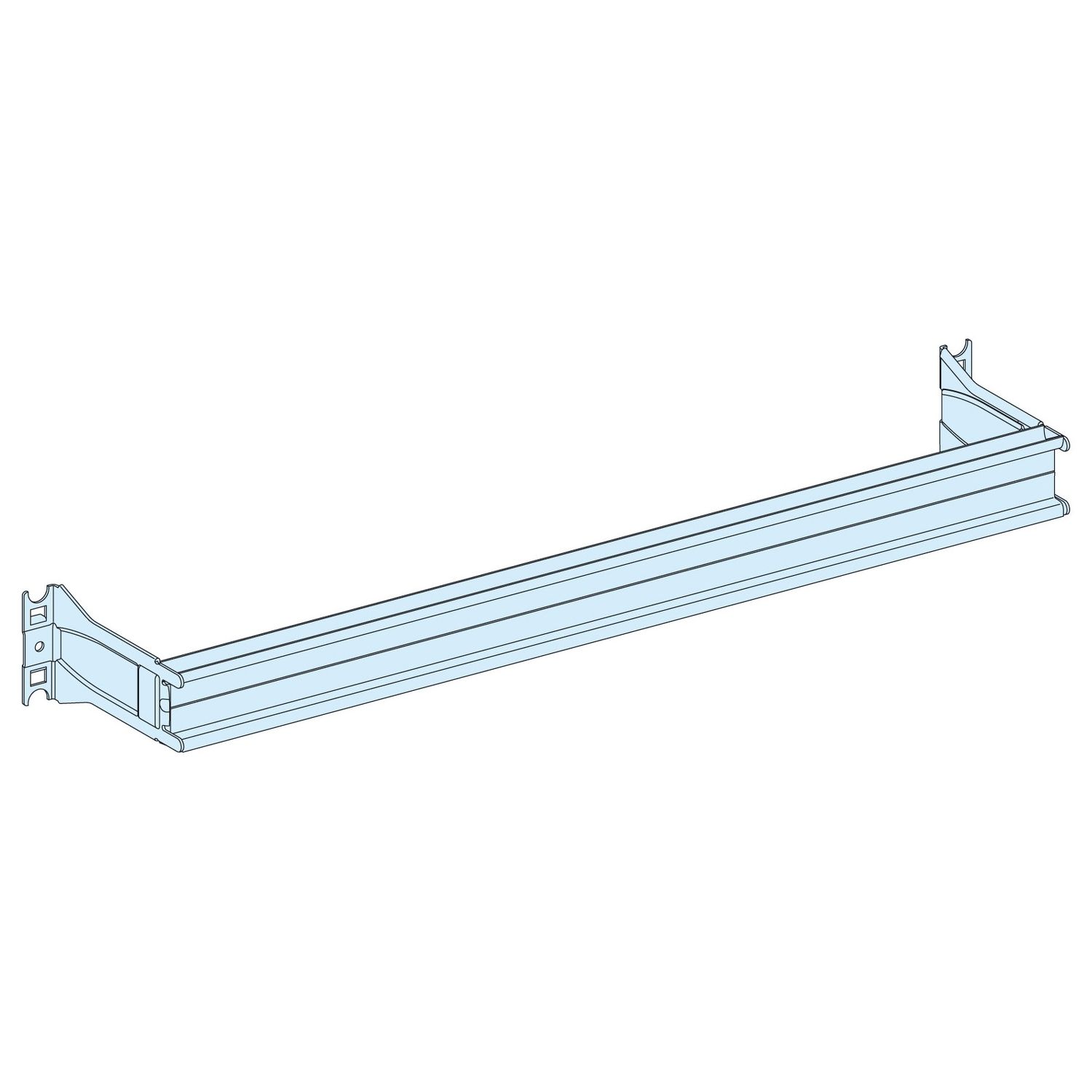

Picture of Prisma iPM M - adjustable modular device rail
SKU:

LSM58854A

Prisma iPM M - adjustable modular device rail

$104.94 INC GST
Available for Shipping : 18-Dec-2025
Prisma iPM M - adjustable modular device rail
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Dec-2025
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Poles description 3 x 4P: fixed INS100...160 vertical installation, 3 x 3P: fixed INS100...160 vertical installation, 4 x 4P: fixed INS40...80 vertical installation, 4 x 3P: fixed INS40...80 vertical installation, 4 x 3P or 4P: fixed Vigi NSXm vertical installation, 4 x 4P: fixed NSXm vertical installation, 5 x 3P: fixed NSXm vertical installation
Device application modular distribution application
Type of rail adjustable
Range Prisma
Product or component type rail
Accessory / separate part category installation accessory
Installed device EasyPact: TVS GZ1E + LC1E09...E32 - vertical installation, TeSys: GV2 + LC1D09...D40 - vertical installation, TeSys: LC1D09...D95 - vertical installation, EasyPact: TVS <= 95 A - vertical installation, ComPact: fixed INS100...160 - control: direct front rotary handle - vertical installation, ComPact: fixed INS40...80 - control: direct front rotary handle - vertical installation, ComPact: fixed Vigi NSXm with earth leakage protection - control: toggle - vertical installation, ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation
Range compatibility Prisma Prisma iPM M framework
Range of product Prisma iPM
Complementary
Enclosure/cubicle width 600 mm Prisma iPM M floor-standing enclosure ComPact Vigi NSXm with fixed toggle vertical 3P or 4P 4 direct 8 225 mm, 600 mm Prisma iPM M floor-standing enclosure ComPact NSXm without fixed toggle vertical 4P 4 direct 8 225 mm, 600 mm Prisma iPM M floor-standing enclosure ComPact NSXm without fixed toggle vertical 3P 5 direct 8 225 mm
Material sheet metal
Length useful: 432 mm
Depth 400 mm maximum depth adjustment:
Number of vertical modules [50 mm] 5 module(s): GV2 + LC1D09...D40, direct in floor-standing enclosure, 3 module(s): TVS <= 95 A, direct in floor-standing enclosure, 3 module(s): LC1D09...D95, direct in floor-standing enclosure, 8 module(s): Vigi NSXm with earth leakage protection, direct in floor-standing enclosure, 8 module(s): NSXm without earth leakage protection, direct in floor-standing enclosure, 5 module(s): INS100...160, connection block in floor-standing enclosure, 4 module(s): INS100...160, direct in floor-standing enclosure, 4 module(s): INS40...80, connection block in floor-standing enclosure, 5 module(s): TVS GZ1E + LC1E09...E32, direct in floor-standing enclosure, 3 module(s): INS40...80, direct in floor-standing enclosure
9 mm pitches 48
Offer type standard
Enclosure/cubicle description floor-standing enclosure - width 600 mm
Environment
Product certifications ASEFA
Standards IEC 61439-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 4.0 cm
Package 1 Length 47.0 cm
Package 1 Weight 900.0 g
