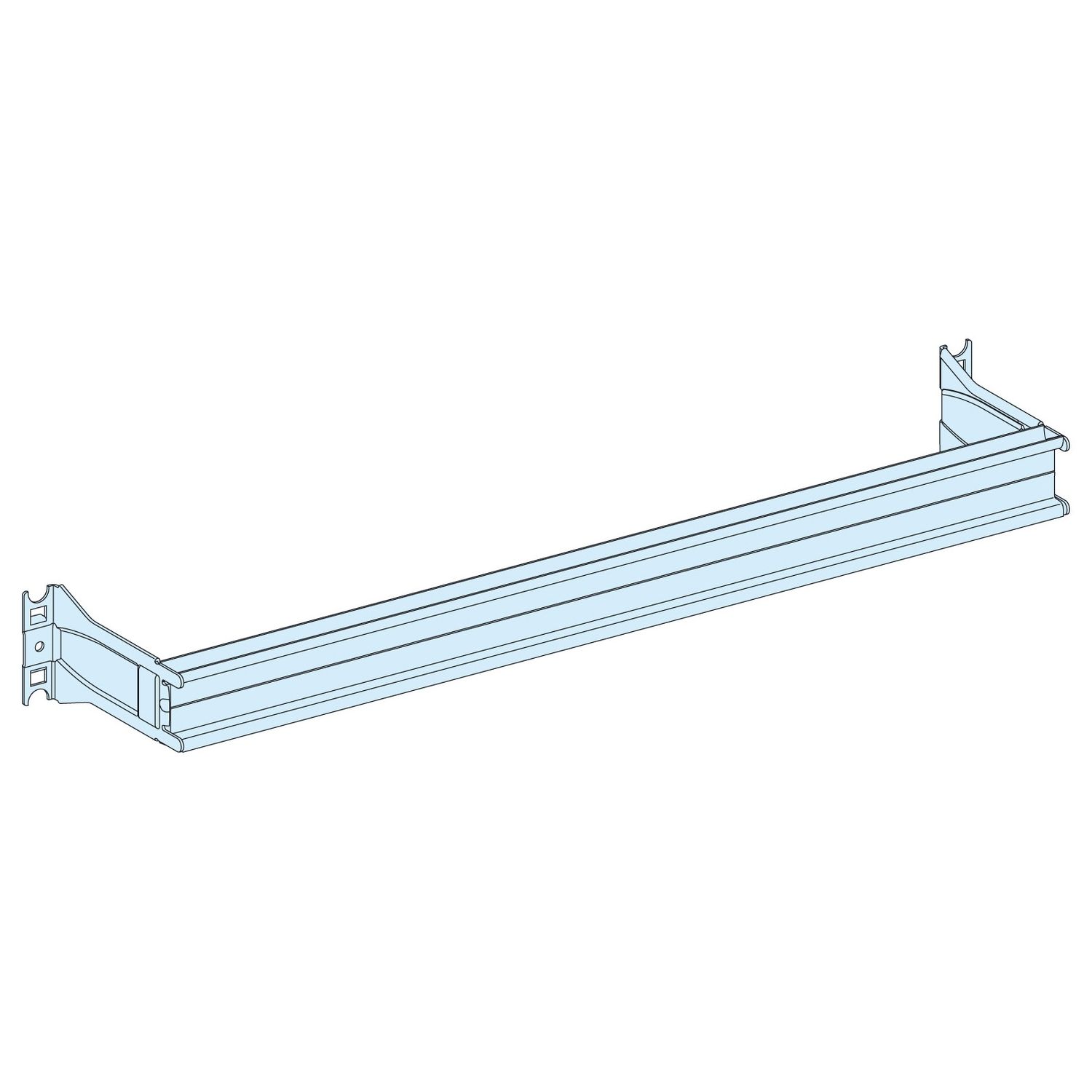

Picture of Prisma iPM M - modular device rail
SKU:

LSM58853A

Prisma iPM M - modular device rail

$34.58 INC GST
Available for Shipping : 15-Dec-2025
Prisma iPM M - modular device rail
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Poles description 4 x 4P: fixed NG125 vertical installation, 5 x 3P: fixed NG125 vertical installation, 8 x 2P: fixed NG125 vertical installation, 16 x 1P: fixed NG125 vertical installation, 4P: fixed modular device vertical installation, 3P: fixed modular device vertical installation, 2P: fixed modular device vertical installation, 1P: fixed modular device vertical installation
Device application modular distribution application
Type of rail DIN
Range Prisma
Product or component type rail
Accessory / separate part category installation accessory
Installed device Multi9: clip-on modular device without earth leakage protection - control: toggle, Acti 9: clip-on modular device without earth leakage protection - control: toggle, EasyPact: TVS GZ1E <= 32 A - vertical installation, TeSys: GV2 <= 40 A - vertical installation, TeSys: LCE140 - vertical installation, TeSys: LC1D40 - vertical installation, Multi9: fixed NG125 without earth leakage protection - control: toggle - vertical installation
Range compatibility Prisma Prisma iPM M framework
Range of product Prisma iPM
Complementary
Material sheet metal
Length useful: 432 mm
Number of vertical modules [50 mm] 3 module(s): TVS GZ1E <= 32 A, direct in floor-standing enclosure, 3 module(s): GV2 <= 40 A, direct in floor-standing enclosure, 3 module(s): LCE140, direct in floor-standing enclosure, 3 module(s): LC1D40, direct in floor-standing enclosure, 5 module(s): NG125 without earth leakage protection, connection block in floor-standing enclosure, 4 module(s): NG125 without earth leakage protection, direct in floor-standing enclosure, 4 module(s): modular device, connection block in floor-standing enclosure, 3 module(s): modular device, direct in floor-standing enclosure
9 mm pitches 48
Offer type standard
Enclosure/cubicle description floor-standing enclosure - width 600 mm
Environment
Product certifications ASEFA
Standards IEC 61439-2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 9.0 cm
Package 1 Length 52.5 cm
Package 1 Weight 550.0 g
