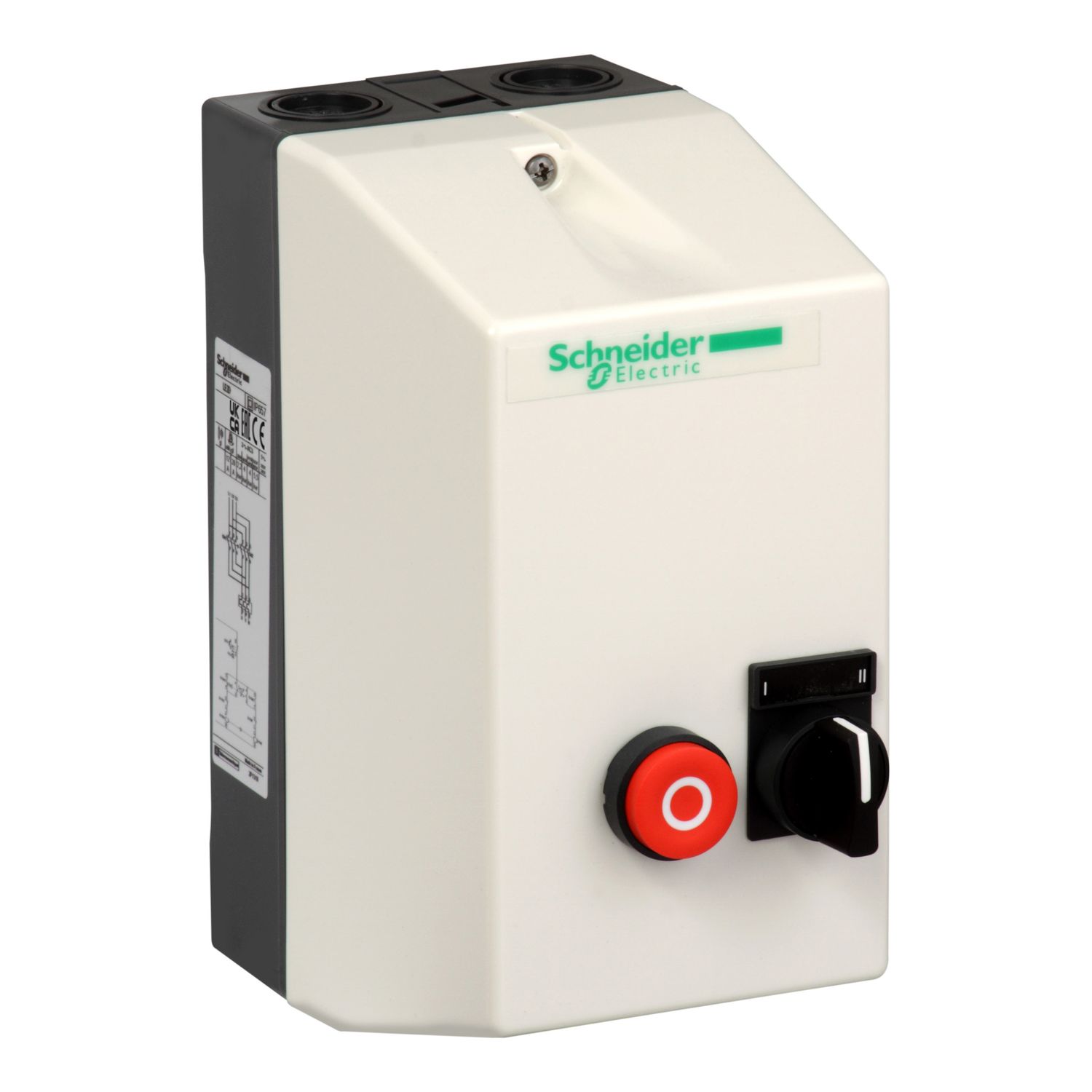

Picture of TeSys; TeSys LE, enclosed DOL reversing starter, 12 A, 415 V AC coil
SKU:

LE2D12N7

TeSys; TeSys LE, enclosed DOL reversing starter, 12 A, 415 V AC coil

Old price: $767.80 INC GST
$483.71 INC GST
Available for Shipping : 04-Jan-2026
Product Selector
TeSys; TeSys LE, enclosed DOL reversing starter, 12 A, 415 V AC coil
  • Polycarbonate enclosure provides high level protection against water, dust and mechanical compact
  • Environmentally friendly product
  • Good performance on motor protection against overload, work with overload relay
  • Easy to use with ON/REAVERSE/OFF pushbuttons at the front
  • Multiple resetting methods: manual & remotely
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Jan-2026
Circularity Profile
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LE2D
Device application standard
[Ie] rated operational current 12 A AC-3
Range TeSys
[Ithe] conventional enclosed thermal current 12 A
Motor power kW 5.5 kW at 440 V AC 50/60 Hz, 5.5 kW at 415 V AC 50/60 Hz, 5.5 kW at 380/400 V AC 50/60 Hz, 7.5 kW at 660/690 V AC 50/60 Hz, 7.5 kW at 500 V AC 50/60 Hz, 3 kW at 220/230 V AC 50/60 Hz
Control type selector switch 2 positions start I-II, push-button stop/reset red O
Utilisation category AC-3
Device composition reversing contactor, thermal overload relay ordered separately
Product name TeSys LE
Product or component type enclosed DOL reversing starter
[Uc] control circuit voltage 415 V AC 50/60 Hz
Complementary
Compatibility code LE2D
Height 201 mm
Depth 160 mm
Width 101 mm
Cable entry number 2 ISO25 bottom, 2 ISO20 bottom, 2 ISO25 top, 2 ISO20 top
Net weight 2.1 kg
Environment
IP degree of protection IP65 conforming to IEC 60529
Environmental characteristic standard environment
Ambient air temperature for operation -5-40 °C
IK degree of protection IK07 conforming to IEC 60529
Material polycarbonate
Standards IEC 60947-4-1
Product certifications UKCA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.0 cm
Package 1 Width 29.0 cm
Package 1 Length 40.0 cm
Package 1 Weight 2.1 kg
