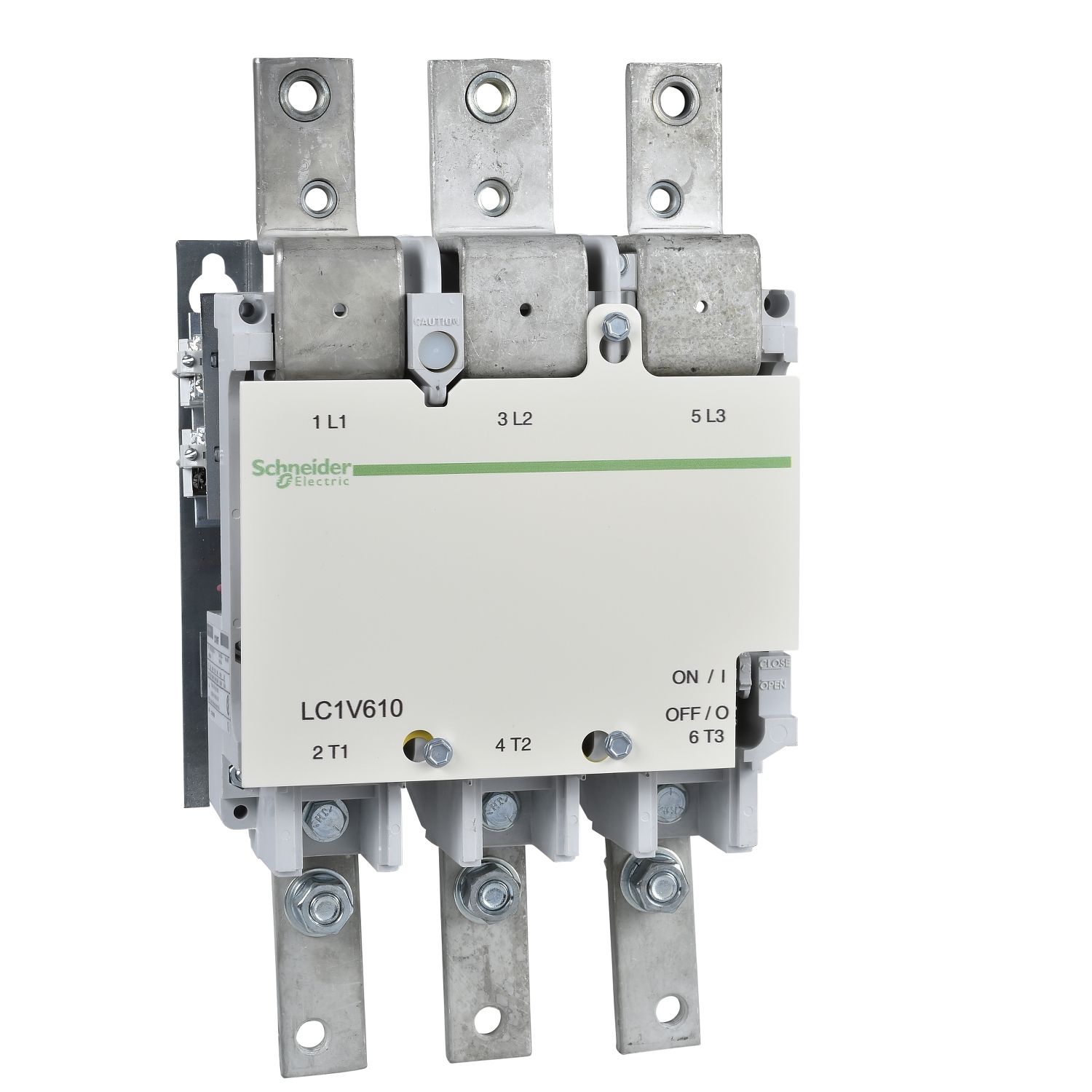

Contactor, vacuum contactor LC1-V, 3P, 610A, AC-3, 220 to 240VAC coil

Old price: $15,147.00 INC GST
$9,542.61 INC GST
Availability: Please contact our sales team on 1300 724 622.
Contactor, vacuum contactor LC1-V, 3P, 610A, AC-3, 220 to 240VAC coil
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Coil type standard
Device short name LC1V
Poles description 3P
Utilisation category AC-1, AC-4, AC-3
Pole contact composition 3 NO
Range TeSys
Product name TeSys V
Product or component type vacuum contactor
Contactor application motor control, resistive load
Range of product TeSys V
Control circuit type AC
Complementary
[Ui] rated insulation voltage control circuit: 690 V, earth circuit: 2000 V, power circuit: 1500 V
Motor power kW 800 kW at 1000 V AC 50/60 Hz (AC-3), 560 kW at 690 V AC 50/60 Hz (AC-3), 400 kW at 525 V AC 50/60 Hz (AC-3), 300 kW at 400 V AC 50/60 Hz (AC-3), 160 kW at 230 V AC 50/60 Hz (AC-3)
Depth 178 mm
Width 201 mm
Operating time 95...115 ms on opening, 24...32 ms on closing
Hold-in power consumption in VA 28-28 VA
Compatibility code LC1V
Mechanical durability 2000000 cycles
Tightening torque power circuit: 39 N.m - on connector - cable 185-185 mm² hexagonal screw head
Maximum operating rate 1200 cyc/h
[Ie] rated operational current 540 A AC AC-4 for power circuit, 630 A (at <40 °C) AC AC-1 for power circuit, 610 A (at <55 °C) AC AC-3 for power circuit
Coil technology without built-in bidirectional peak limiting diode suppressor
Connections - terminals power circuit: bolted connection, control circuit: connector 1 x 2.5-2.5 mm²
[Uimp] rated impulse withstand voltage 8 kV
Inrush power in VA 1700-1700 VA
Net weight 13 kg
Associated fuse rating 630 A aM at <= 1000 V for power circuit conforming to IEC 60947, 10 A gG for control circuit
Irms rated making capacity 7300 A at 1500 V AC for power circuit conforming to IEC 60947
Rated breaking capacity 6100 A at 1500 V for power circuit conforming to IEC 60947
Mounting support rail, plate
[Ith] conventional free air thermal current 630 A for power circuit, 10 A for control circuit
Control circuit voltage limits 0.8...1.1 Uc at 50/60 Hz
Auxiliary contact composition 1 NO + 1 NC
Motor power hp 700 hp at 800 V AC 50/60 Hz conforming to CSA, 500 hp at 600 V AC 50/60 Hz conforming to CSA, 400 hp at 480 V AC 50/60 Hz conforming to CSA, 300 hp at 380 V AC 50/60 Hz conforming to CSA, 200 hp at 240 V AC 50/60 Hz conforming to CSA, 150 hp at 200 V AC 50/60 Hz conforming to CSA, 1300 hp at 1500 V AC 50/60 Hz conforming to CSA, 1000 hp at 1000 V AC 50/60 Hz conforming to CSA
Height 356 mm
[Uc] control circuit voltage 220...240 V AC 50/60 Hz
[Ue] rated operational voltage power circuit: <= 1000 V AC 50/60 Hz
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Operating altitude 3600...4500 m
IP degree of protection IP00 conforming to IEC 60529
Ambient air temperature for storage -40-80 °C
Vibration resistance 2 gn 10-500 Hz
Shock resistance 10 gn contactor opened, 10 gn contactor closed
Standards IEC 60947-4-1, EN 60947-4-1
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 34.54 cm
Package 1 Width 30.73 cm
Package 1 Length 50.8 cm
Package 1 Weight 15.56 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 73.5 cm
Package 2 Width 60 cm
Package 2 Length 80 cm
Package 2 Weight 42.4 kg
