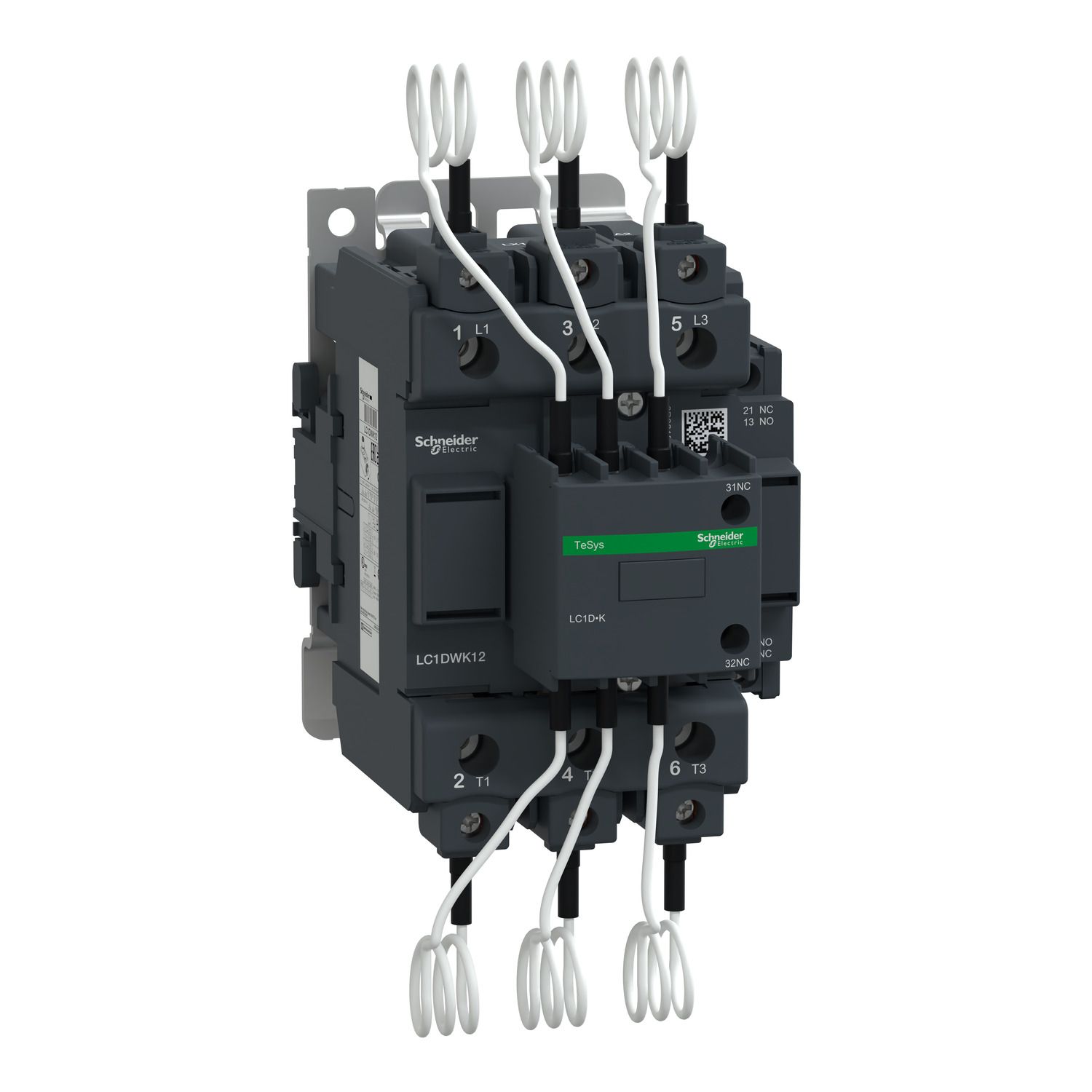

Picture of Capacitor contactor, Tesys Deca, 63kVAR at 400/415V 50Hz, 415V AC 50/60Hz coil, screw clamp terminals
SKU:

LC1DWK12N7

Capacitor contactor, Tesys Deca, 63kVAR at 400/415V 50Hz, 415V AC 50/60Hz coil, screw clamp terminals

Old price: $1,304.60 INC GST
$821.90 INC GST
Available for Shipping : 04-Jan-2026
Capacitor contactor, Tesys Deca, 63kVAR at 400/415V 50Hz, 415V AC 50/60Hz coil, screw clamp terminals
  • New modern look & feel of all machines
  • Designed to meet the requirements of Capacitor control
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Compatible for all the voltages on the market
  • Multiple international certifications
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Jan-2026
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V). It provides a 415V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1DWK
Device application control
Electrical durability 200000 cycles at Ue 690 V, 300000 cycles at Ue 400 V
Tightening torque control circuit: 1.7 N.m - on screw clamp terminals, power circuit: 9 N.m - on connector
Auxiliary contact composition 1 NO + 2 NC instantaneous
Range TeSys
Control circuit type AC at 50/60 Hz
Range of product TeSys Deca
Poles description 3P
Maximum operating rate 240 cyc/h
Utilisation category AC-6b
Connections - terminals power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, power circuit: connector 2 4-25 mm² - cable stiffness: solid, power circuit: connector 1 4-50 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
Pole contact composition 3 NO
Product name TeSys Deca, TeSys LC1D.K
Product or component type capacitor duty contactor
Contactor application power factor correction
Mounting support plate, DIN rail
Standards CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-1
Reactive power rating 80 kvar at 575-575 V AC 60 Hz 60 °C, 60 kvar at 460-460 V AC 60 Hz 60 °C, 30 kvar at 230-230 V AC 60 Hz 60 °C, 104 kvar at 690-690 V AC 50 Hz 60 °C, 67 kvar at 440-440 V AC 50 Hz 60 °C, 63 kvar at 400-400 V AC 50 Hz 60 °C, 35 kvar at 230-230 V AC 50 Hz 60 °C
[Ue] rated operational voltage power circuit: 690 V AC 50/60 Hz
[Uc] control circuit voltage 415 V AC 50/60 Hz
Product certifications UKCA, CSA, UL, IECEE CB Scheme
Complementary
Compatibility code LC1D
Auxiliary contacts type type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Environment
IP degree of protection IP20 front face conforming to IEC 60529
Ambient air temperature for storage -60-80 °C
Ambient air temperature for operation -5-60 °C
Height 180 mm
Depth 154 mm
Width 85 mm
Operating altitude 0...3000 m
Net weight 1.65 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.2 cm
Package 1 Width 12.6 cm
Package 1 Length 18.8 cm
Package 1 Weight 1.73 kg
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 85 cm
Package 2 Width 80 cm
Package 2 Length 60 cm
Package 2 Weight 93 kg
