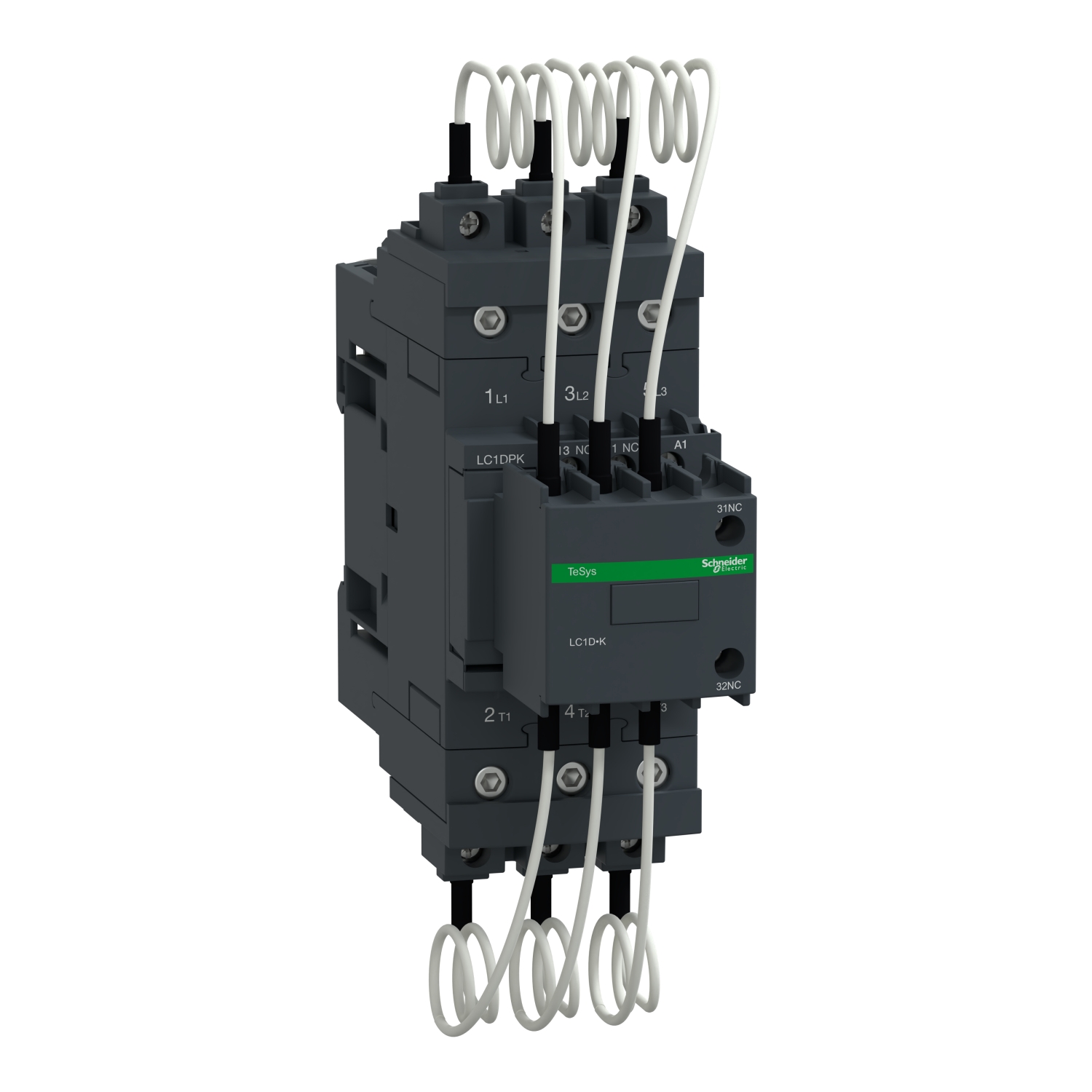

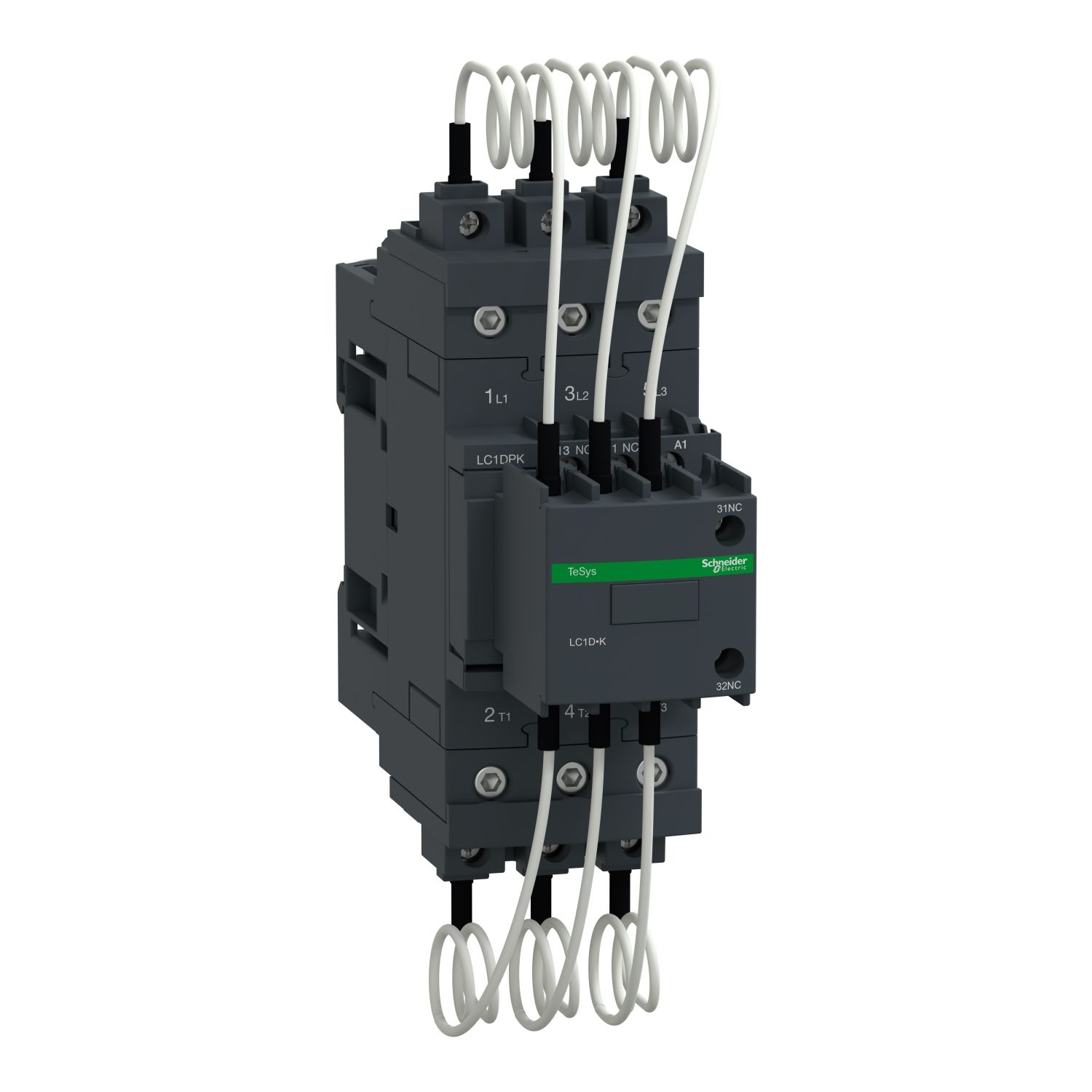

Picture of Capacitor contactor, Tesys Deca, 30kVAR at 400/415V 50Hz, 240V AC 50/60Hz coil, EverLink BTR screw terminals
SKU:

LC1DPKU7

Capacitor contactor, Tesys Deca, 30kVAR at 400/415V 50Hz, 240V AC 50/60Hz coil, EverLink BTR screw terminals

Old price: $551.10 INC GST
$347.19 INC GST
Available for Shipping : 16-Dec-2025
Capacitor contactor, Tesys Deca, 30kVAR at 400/415V 50Hz, 240V AC 50/60Hz coil, EverLink BTR screw terminals
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 30kVAR@400V 50Hz (50kVAR@690V). It provides a 240V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1DPK
Device application control
Electrical durability 200000 cycles at Ue 690 V, 300000 cycles at Ue 400 V
Tightening torque power circuit: 8 N.m - on EverLink BTR screw connectors - cable 35-35 mm², power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm², control circuit: 1.7 N.m - on screw clamp terminals
Auxiliary contact composition 1 NO + 2 NC instantaneous
Range TeSys Deca, TeSys
Control circuit type AC at 50/60 Hz
Range of product TeSys Deca
Poles description 3P
Maximum operating rate 240 cyc/h
Utilisation category AC-6b
Connections - terminals power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with or without cable end, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with or without cable end, power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
Pole contact composition 3 NO
Product name TeSys Deca, TeSys LC1D.K
Product or component type capacitor duty contactor
Contactor application power factor correction
Device location in system inside delta interruption, line interruption
Mounting support plate, DIN rail
Standards IEC 60335-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-1
Reactive power rating 40 kvar at 575-575 V AC 60 Hz 60 °C, 33.3 kvar at 460-460 V AC 60 Hz 60 °C, 16.5 kvar at 230-230 V AC 60 Hz 60 °C, 50 kvar at 690-690 V AC 50 Hz 60 °C, 32 kvar at 440-440 V AC 50 Hz 60 °C, 30 kvar at 400-400 V AC 50 Hz 60 °C, 17 kvar at 230-230 V AC 50 Hz 60 °C
[Ue] rated operational voltage power circuit: 690 V AC 50/60 Hz
[Uc] control circuit voltage 240 V AC 50/60 Hz
Product certifications UKCA, CSA, UL, IECEE CB Scheme
Complementary
Compatibility code LC1D
Auxiliary contacts type type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Environment
IP degree of protection IP20 front face conforming to IEC 60529
Ambient air temperature for storage -60-80 °C
Ambient air temperature for operation -5-60 °C
Height 166 mm
Depth 156 mm
Width 55 mm
Operating altitude 0...3000 m
Net weight 1.3 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.900 cm
Package 1 Width 20.100 cm
Package 1 Length 22.800 cm
Package 1 Weight 1.106 kg
