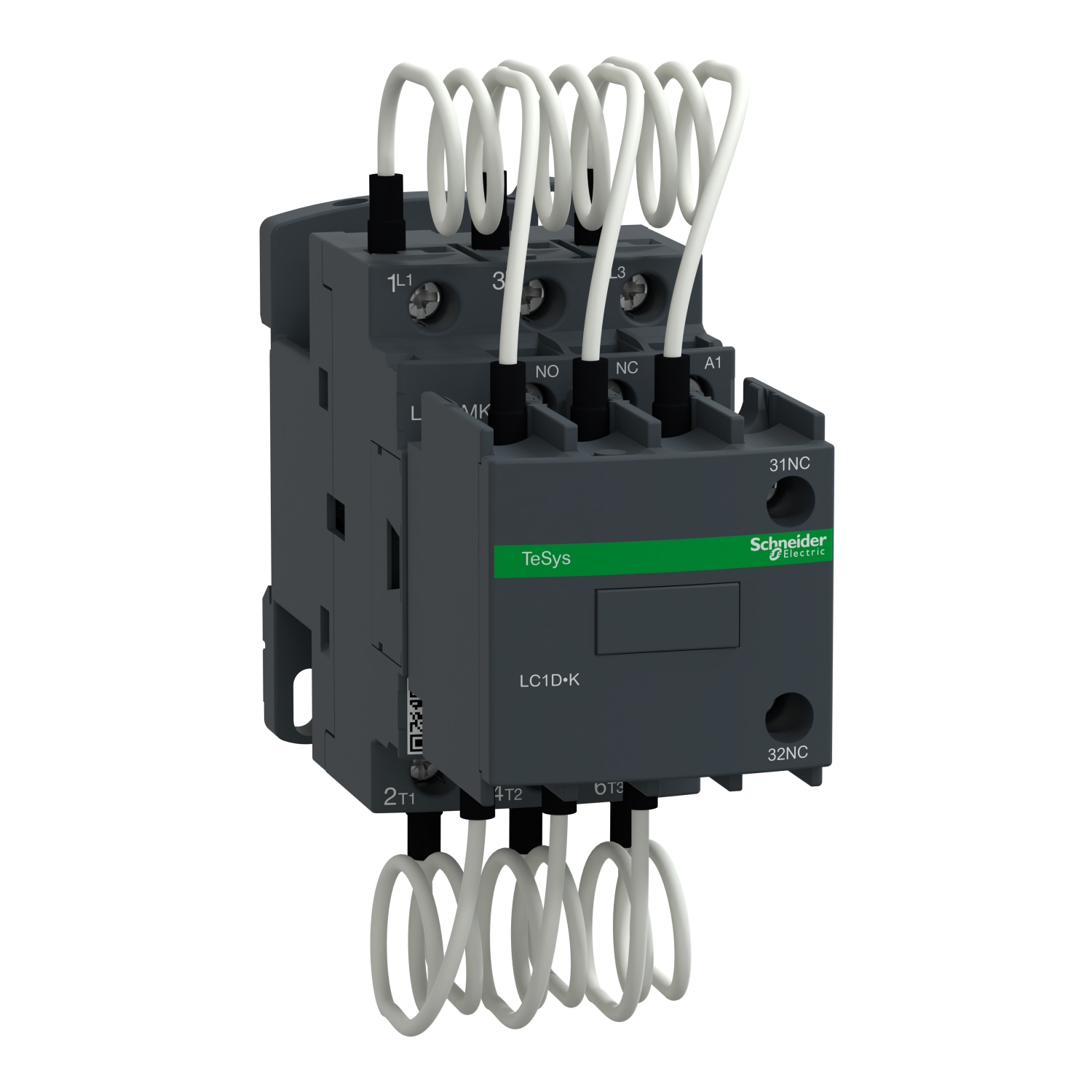

Picture of Capacitor contactor, Tesys Deca, 25kVAR at 400/415V 50Hz, 415V AC 50/60Hz coil, screw clamp terminals
SKU:

LC1DMKN7

Capacitor contactor, Tesys Deca, 25kVAR at 400/415V 50Hz, 415V AC 50/60Hz coil, screw clamp terminals

Old price: $486.75 INC GST
$306.65 INC GST
Available for Shipping : 16-Dec-2025
Capacitor contactor, Tesys Deca, 25kVAR at 400/415V 50Hz, 415V AC 50/60Hz coil, screw clamp terminals
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 25kVAR@400V 50Hz (42kVAR@690V). It provides a 415V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1DMK
Device application control
Electrical durability 200000 cycles at Ue 690 V, 300000 cycles at Ue 400 V
Tightening torque power circuit: 2.5 N.m - on screw clamp terminals, control circuit: 1.7 N.m - on screw clamp terminals
Auxiliary contact composition 1 NO + 2 NC instantaneous
Range TeSys Deca, TeSys
Control circuit type AC at 50/60 Hz
Range of product TeSys Deca
Poles description 3P
Maximum operating rate 240 cyc/h
Utilisation category AC-6b
Connections - terminals power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 2.5-6 mm² - cable stiffness: solid, power circuit: screw clamp terminals 1 2.5-16 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
Pole contact composition 3 NO
Product name TeSys Deca, TeSys LC1D.K
Product or component type capacitor duty contactor
Contactor application power factor correction
Device location in system inside delta interruption, line interruption
Mounting support plate, DIN rail
Standards IEC 60335-1, EN/IEC 60947-4-1, EN/IEC 60947-1
Reactive power rating 42 kvar at 690-690 V AC 50 Hz 60 °C, 27 kvar at 440-440 V AC 50 Hz 60 °C, 25 kvar at 400-400 V AC 50 Hz 60 °C, 14 kvar at 230-230 V AC 50 Hz 60 °C
[Ue] rated operational voltage power circuit: 690 V AC 50/60 Hz
[Uc] control circuit voltage 415 V AC 50/60 Hz
Product certifications UKCA, IECEE CB Scheme
Complementary
Compatibility code LC1D
Auxiliary contacts type type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Environment
IP degree of protection IP20 front face conforming to IEC 60529
Ambient air temperature for storage -60-80 °C
Ambient air temperature for operation -5-60 °C
Height 125 mm
Depth 127 mm
Width 45 mm
Operating altitude 0...3000 m
Net weight 0.63 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 19.500 cm
Package 1 Length 22.500 cm
Package 1 Weight 611.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.033 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 40.264 kg
