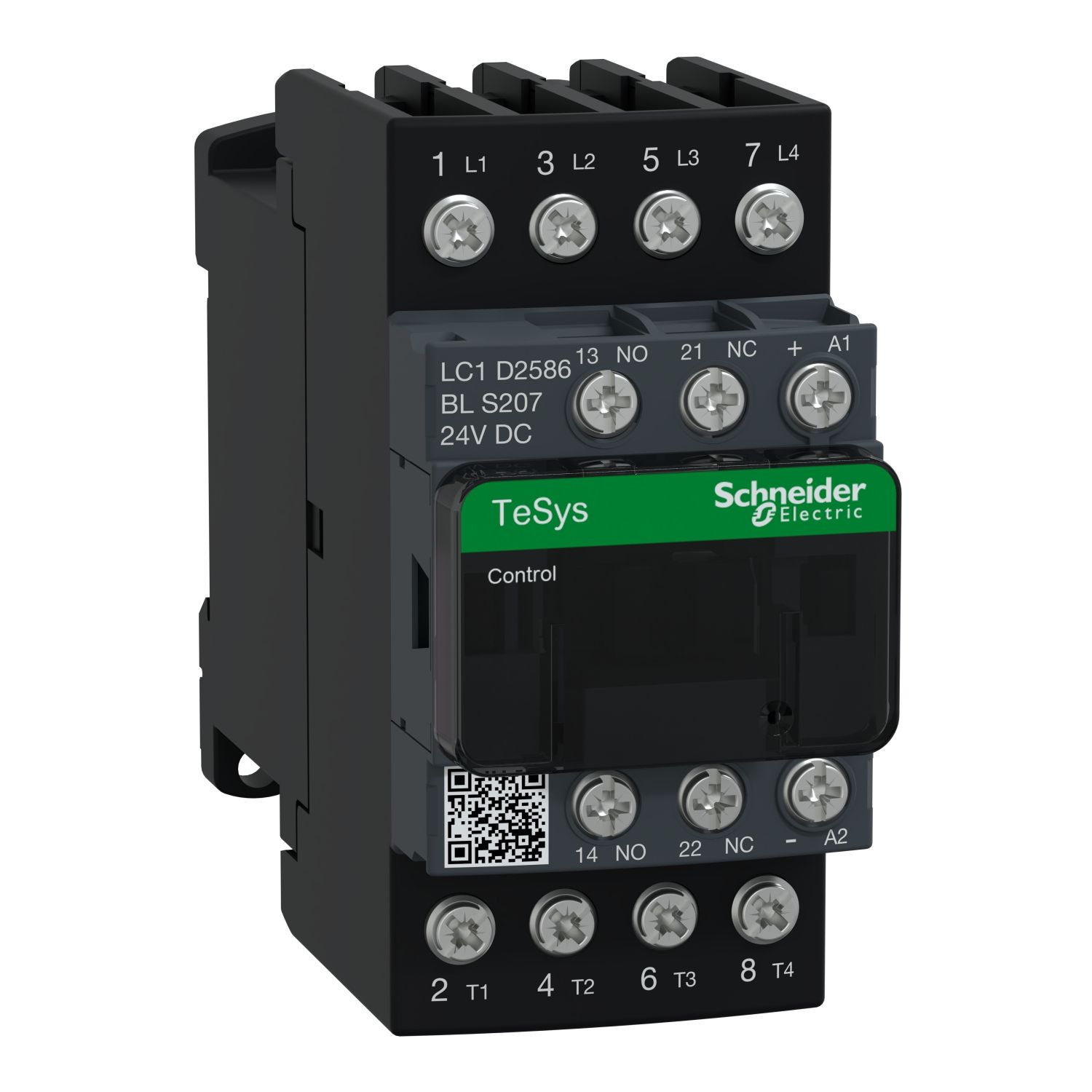

Picture of Contactor, TeSys Deca S207,4P(2NO+2NC),AC-1 40A , <=440V, 24V DC coil low consumption coil, lugs-ring terminal
SKU:

LC1D2586BLS207

Contactor, TeSys Deca S207,4P(2NO+2NC),AC-1 40A , <=440V, 24V DC coil low consumption coil, lugs-ring terminal

Old price: $917.40 INC GST
$577.96 INC GST
Available for Shipping : 19-Jan-2026
Contactor, TeSys Deca S207,4P(2NO+2NC),AC-1 40A , <=440V, 24V DC coil low consumption coil, lugs-ring terminal
  • Made of new material, fully railway European standard EN45545 R22 HL3 compliant, with unchanged commercial reference.
  • Meet tighter requirements on fire behavior of materials and components.
  • The highest choice for demanding or wide power range applications.
  • New modern look & feel of all machines.
  • Easy installation and operation with multi-standard screws.
  • Multiple international certifications.
  • Green Premium products, deliver valued sustainable performance.
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 40A/690V AC-1. It provides a 24V DC low consumption coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts, connection by lug-rings terminals. It procures 3600 cyc/h for operating rate and environment temperature under 70°C. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, CCC, EAC, UA, TR) and compliant with the railway European standard EN 45545 R22HL3, Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1D
Poles description 4P
[Ie] rated operational current 40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category AC-4, AC-3e, AC-3, AC-1
Range TeSys Deca, TeSys
Product or component type contactor
Contactor application resistive load
Range of product TeSys Deca
[Ue] rated operational voltage power circuit: <= 690 V AC 25...400 Hz
Complementary
Protective cover with
[Icw] rated short-time withstand current 120 A 40 °C - 1 min for power circuit, 50 A 40 °C - 10 min for power circuit, 380 A 40 °C - 1 s for power circuit, 240 A 40 °C - 10 s for power circuit, 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit
[Ui] rated insulation voltage signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category III
Operating altitude 0...3000 m
Compatibility code LC1D
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Inrush power in W 4-4 W (at 20 °C)
Mechanical durability 30 Mcycles
Electrical durability 1.4 Mcycles 40 A AC-1 at Ue <= 440 V
Tightening torque power circuit: 1.8 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5, power circuit: 1.8 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5, control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5, control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5
Signalling circuit frequency 25...400 Hz
Maximum operating rate 3600 cyc/h 60 °C
Minimum switching voltage 17 V for signalling circuit
Operating time 25 ±20 % ms opening, 77 ±15 % ms closing
Time constant 37 ms
Coil technology with integral suppression device
Connections - terminals power circuit: lugs-ring terminals - external diameter: 9 mm, control circuit: lugs-ring terminals - external diameter: 8 mm
Pole contact composition 2 NO + 2 NC
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Associated fuse rating 40 A gG at <= 690 V coordination type 2 for power circuit, 63 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Product name TeSys Deca
Irms rated making capacity 450 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 450 A at 440 V for power circuit conforming to IEC 60947
Insulation resistance > 10 MOhm for signalling circuit
Hold-in power consumption in W 4-4 W at 20 °C
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Standards DIN 5510-2, EN 45545: R26 HL3, EN 45545: R22 HL3, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Control circuit type DC low consumption
Contact compatibility M5
Mounting support plate, rail
Control circuit voltage limits 0.7...1.25 Uc (-40-70 °C):operational DC, 0.1...0.25 Uc (-40-70 °C):drop-out DC
[Ith] conventional free air thermal current 40 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit
Auxiliary contact composition 1 NO + 1 NC
Average impedance 2 mOhm - Ith 40 A 50 Hz for power circuit
Power dissipation per pole 1.25 W AC-3, 3.2 W AC-1
[Uc] control circuit voltage 24 V DC
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Product certifications CB, UKCA, TR, UA, EAC, CCC, IEC
Environment
Depth 107 mm
Width 45 mm
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor open (8 Gn for 11 ms) , shocks contactor closed (15 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
IP degree of protection IP20 front face conforming to IEC 60529
Ambient air temperature for storage -60-80 °C
Flame retardance V0 conforming to UL 94
Net weight 0.425 kg
Pollution degree 3
Climatic withstand conforming to IEC 60947-1 Annex Q category D,  conforming to IACS E10
Height 91 mm
Ambient air temperature for operation -40-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.08 cm
Package 1 Width 4.5 cm
Package 1 Length 9.95 cm
Package 1 Weight 435.0 g
