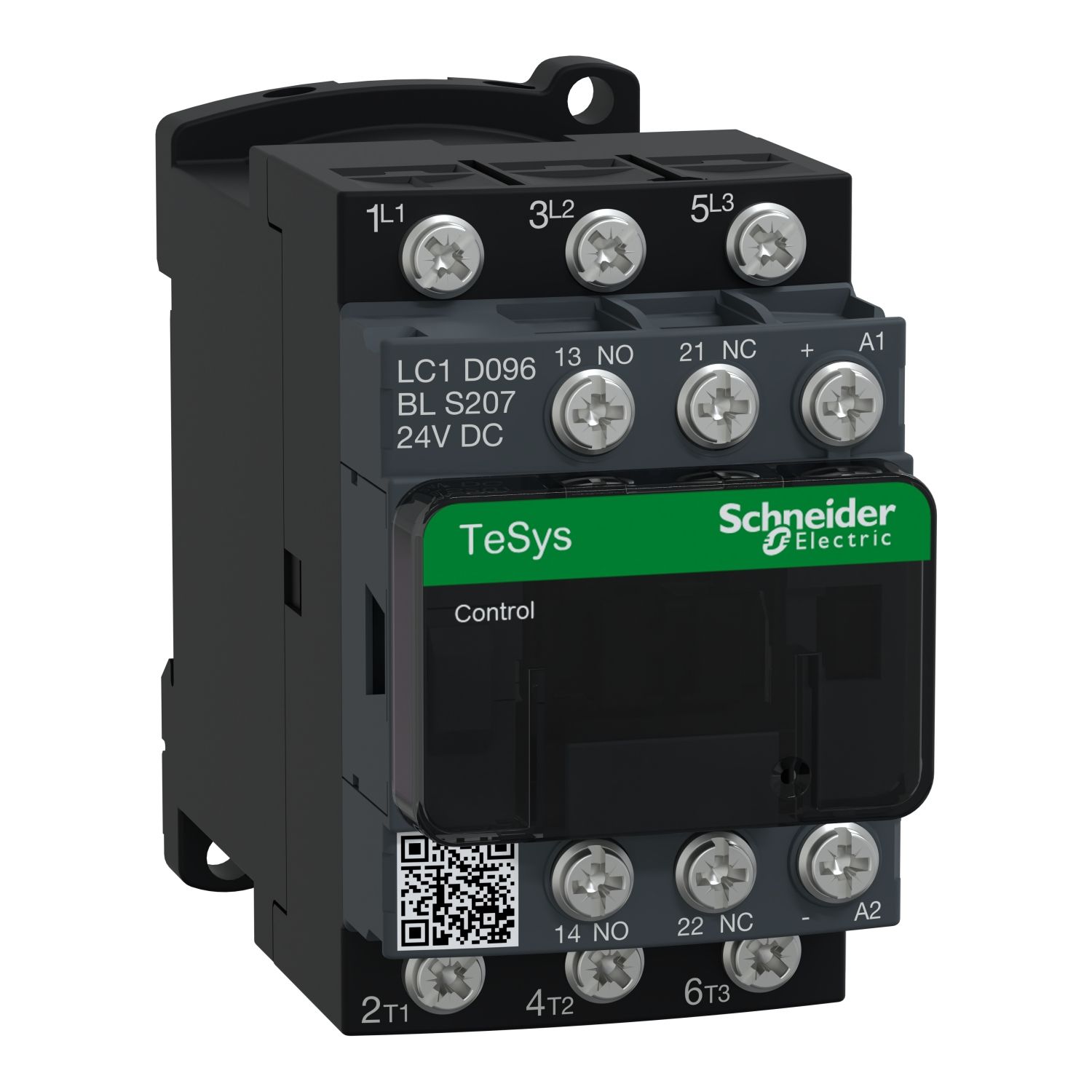

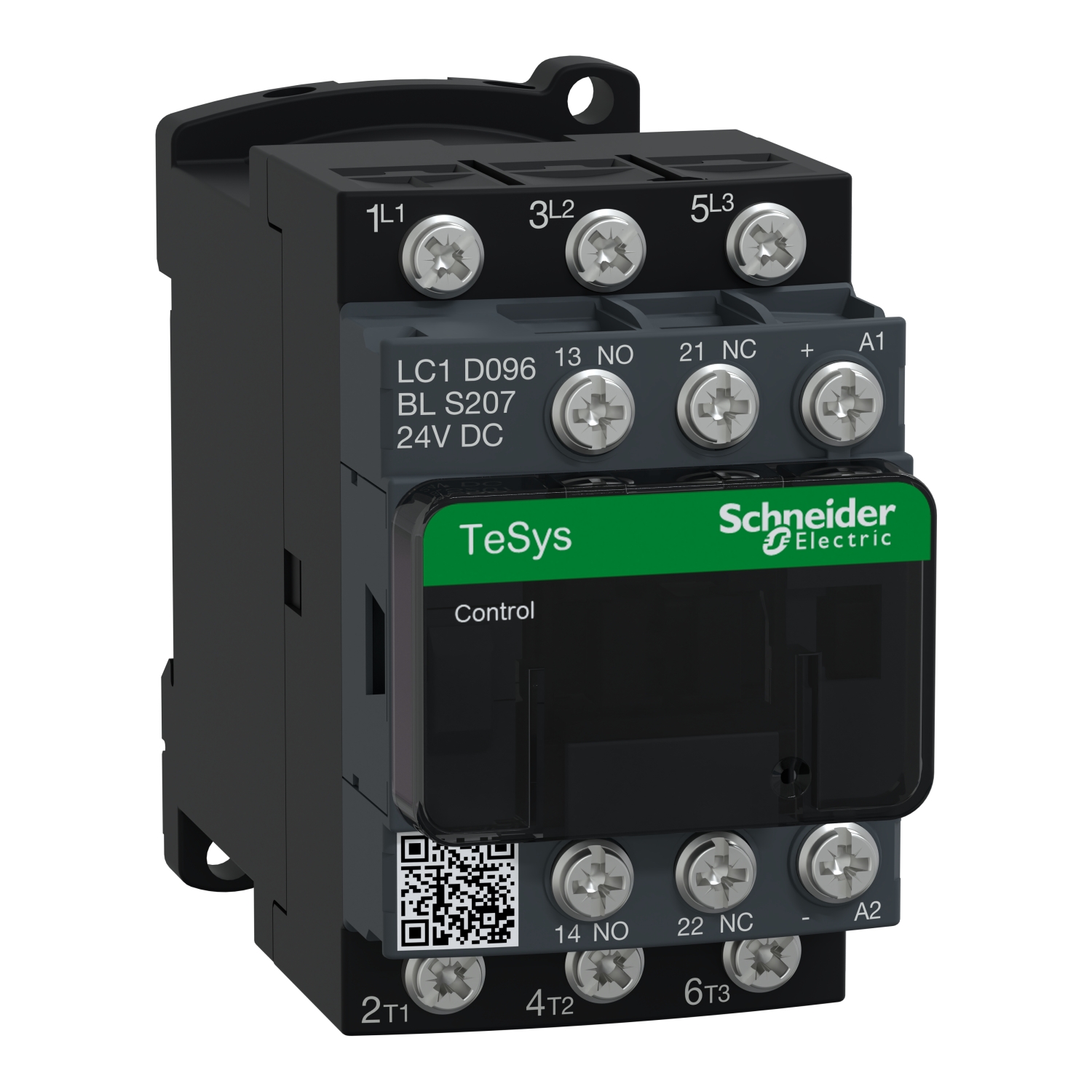

Picture of Contactor, Tesys Deca, railway S207, 3P(3NO), AC-3/AC-3e, 9A, <=440V, 24V DC low consumption coil, lugs-ring terminals
SKU:

LC1D096BLS207

Contactor, Tesys Deca, railway S207, 3P(3NO), AC-3/AC-3e, 9A, <=440V, 24V DC low consumption coil, lugs-ring terminals

Old price: $205.92 INC GST
$129.73 INC GST
Available for Shipping : 19-Jan-2026
Contactor, Tesys Deca, railway S207, 3P(3NO), AC-3/AC-3e, 9A, <=440V, 24V DC low consumption coil, lugs-ring terminals
  • TeSys D and TeSys K S207 series contactors are designed for all railway power switching and controlling applications.
  • TeSys D, the highest choice for demanding or wide power range applications.
  • Complying with the railway European standard EN45545 R22 HL3.
  • Used in heating, lighting, door control, signaling, brake and air conditioning compressors.
  • Easy installation and operation with multi-standard screws.
  • Multiple international certifications.
  • Green Premium products, deliver valued sustainable performance.
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
TeSys D contactor, 3 poles (3NO), for motor control in railway applications up to 9A/690V AC-3/3e (4kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by ring-lugs screw terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, CCC, EAC) and compliant with the railway European standard EN 45545 R22HL3, Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1D
Range TeSys Deca, TeSys
Range of product TeSys Deca
Poles description 3P
[Ie] rated operational current 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category AC-3e, AC-3, AC-1
Product or component type contactor
Contactor application motor control, resistive load
[Ue] rated operational voltage power circuit: <= 690 V AC 25...400 Hz
Complementary
[Icw] rated short-time withstand current 61 A 40 °C - 1 min for power circuit, 30 A 40 °C - 10 min for power circuit, 210 A 40 °C - 1 s for power circuit, 105 A 40 °C - 10 s for power circuit, 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit
Compatibility code LC1D
Mechanical durability 30 Mcycles
Electrical durability 2 Mcycles 9 A AC-3e at Ue <= 440 V, 2 Mcycles 9 A AC-3 at Ue <= 440 V, 0.6 Mcycles 25 A AC-1 at Ue <= 440 V
Tightening torque power circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 M3.5, control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 M3.5, power circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5, power circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5, control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5, control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Operating time 25 ±20 % ms opening, 77 ±15 % ms closing
Time constant 37 ms
Associated fuse rating 20 A gG at <= 690 V coordination type 2 for power circuit, 25 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Irms rated making capacity 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 250 A at 440 V for power circuit conforming to IEC 60947
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Standards DIN 5510-2, EN 45545: R26 HL3, EN 45545: R22 HL3, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Control circuit type DC low consumption
Control circuit voltage limits 0.7...1.25 Uc (-40-70 °C):operational DC, 0.1...0.25 Uc (-40-70 °C):drop-out DC
[Ith] conventional free air thermal current 25 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit
Protective cover with
[Ui] rated insulation voltage signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 690 V conforming to IEC 60947-4-1
Motor power kW 5.5 kW at 660/690 V AC 50 Hz (AC-3e), 5.5 kW at 500 V AC 50 Hz (AC-3e), 4 kW at 440 V AC 50 Hz (AC-3e), 4 kW at 415 V AC 50 Hz (AC-3e), 4 kW at 380/400 V AC 50 Hz (AC-3e), 2.2 kW at 220/230 V AC 50 Hz (AC-3e), 5.5 kW at 660/690 V AC 50 Hz (AC-3), 5.5 kW at 500 V AC 50 Hz (AC-3), 4 kW at 440 V AC 50 Hz (AC-3), 4 kW at 415 V AC 50 Hz (AC-3), 4 kW at 380/400 V AC 50 Hz (AC-3), 2.2 kW at 220/230 V AC 50 Hz (AC-3)
Overvoltage category III
Operating altitude 0...3000 m
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Inrush power in W 4-4 W (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Coil technology with integral suppression device
Connections - terminals power circuit: lugs-ring terminals - external diameter: 9.5 mm, control circuit: lugs-ring terminals - external diameter: 8 mm
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Product name TeSys Deca
Insulation resistance > 10 MOhm for signalling circuit
Hold-in power consumption in W 4-4 W at 20 °C
Contact compatibility M5
Mounting support plate, rail
Auxiliary contact composition 1 NO + 1 NC
Average impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit
Power dissipation per pole 0.2 W AC-3e, 0.2 W AC-3, 1.56 W AC-1
[Uc] control circuit voltage 24 V DC
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Product certifications UKCA, TR, UA, EAC, CCC, IEC
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor closed (15 Gn for 11 ms) , shocks contactor open (10 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
IP degree of protection IP20 front face conforming to IEC 60529
Ambient air temperature for storage -60-80 °C
Pollution degree 3
Climatic withstand conforming to IEC 60947-1 Annex Q category D,  conforming to IACS E10
Height 77 mm
Ambient air temperature for operation -40-70 °C
Depth 95 mm
Width 45 mm
Flame retardance V0 conforming to UL 94
Net weight 0.32 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.59 cm
Package 1 Width 9.65 cm
Package 1 Length 12.19 cm
Package 1 Weight 520 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 8.51 kg
