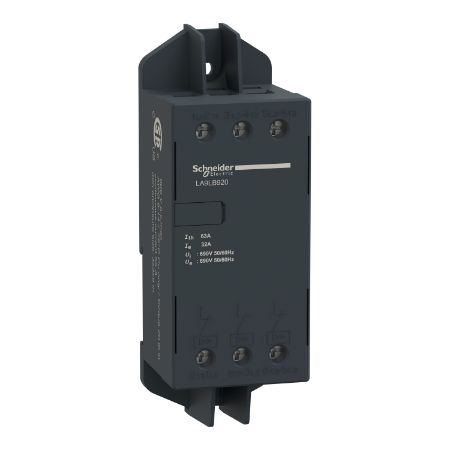

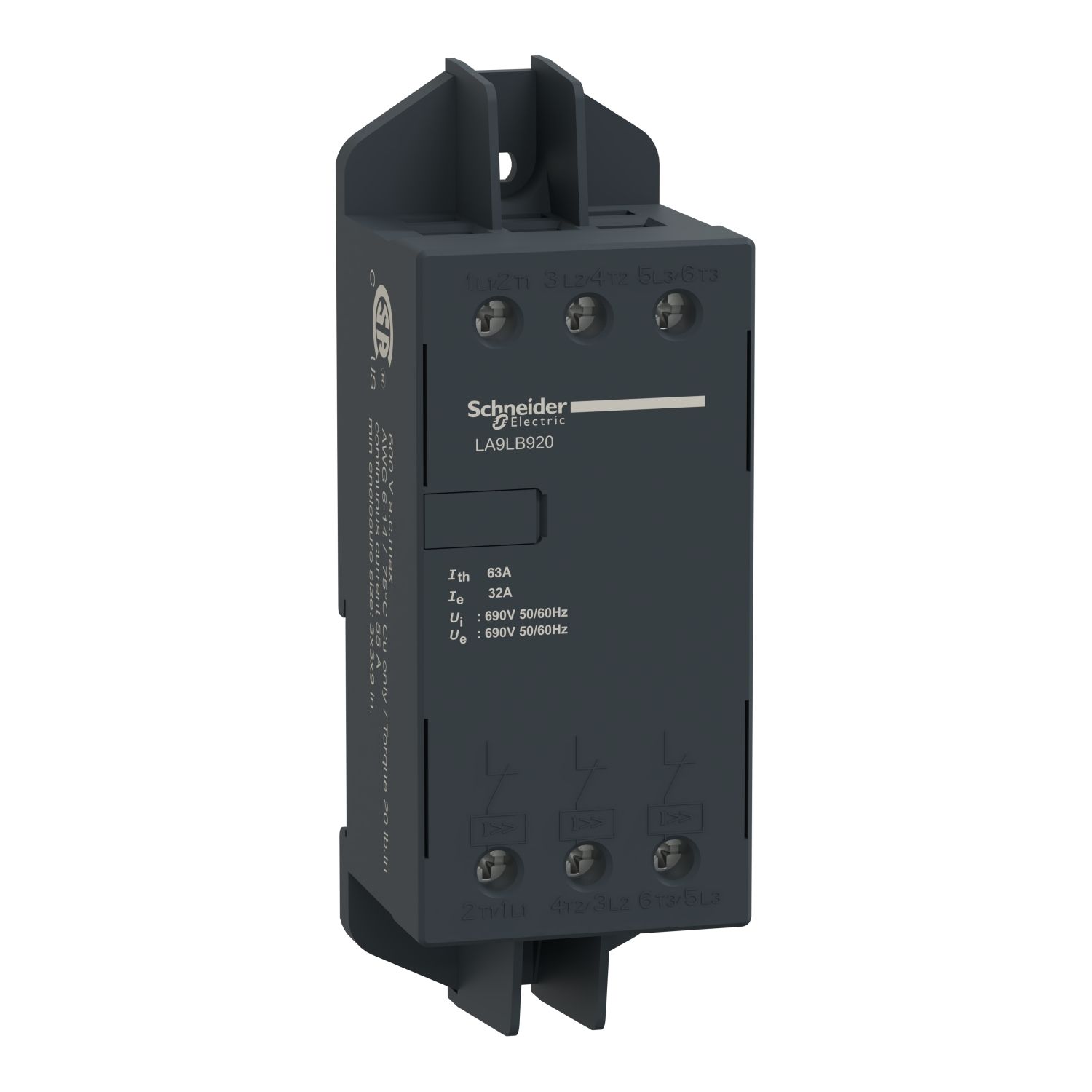

Picture of Current limiter, TeSys U / TeSys GV2, 32A/690V, activation 1kA, Iq 100kA@440V, DIN rail mounting
SKU:

LA9LB920

Current limiter, TeSys U / TeSys GV2, 32A/690V, activation 1kA, Iq 100kA@440V, DIN rail mounting

Old price: $513.15 INC GST
$323.28 INC GST
Available for Shipping : 03-Feb-2026
Current limiter, TeSys U / TeSys GV2, 32A/690V, activation 1kA, Iq 100kA@440V, DIN rail mounting
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Catalog
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
TeSys Integral short circuit current limiter block for contactor breakers Integral 63, motor circuit breakers TeSys GV2, starter controllers TeSys U. It increases the ability of the circuit breaker to withstand a short circuit current from 50 kA to 100/130kA@400 V. To be connected upstream of one or multiple circuit breakers with a total motor nominal current of 32A. For clipping on a 35mm DIN rail or screw fixing, independant mounting from the protection device. It conforms to RoHS/REACh regulation.

Products specifications

Attribute name Attribute value
Main
Product compatibility GV2ME, GV2RT, GV2L, GV2P, LU2B, LUB
Function of module increasing the breaking capacity of a circuit breaker
Activation threshold 1000 A
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-1
[Ie] rated operational current 32 A
Breaking capacity <= 100 kA depending on protective device
Mounting location 35 mm DIN rail
Range TeSys
Product or component type current limiting module
[Ith] conventional free air thermal current 63 A conforming to IEC 60947-1
Accessory / separate part category protection accessory
Range compatibility TeSys TeSys GV2, TeSys TeSys U
Range of product TeSys GV2, TeSys U
[Ue] rated operational voltage 690 V AC 50/60 Hz
Complementary
Tightening torque 2.2 N.m
Connections - terminals screw clamp terminals 2 x 1.5-4 mm² flexible with cable end, screw clamp terminals 1 x 1.5-16 mm² flexible with cable end, screw clamp terminals 2 x 1.5-10 mm² flexible without cable end, screw clamp terminals 1 x 1.5-25 mm² flexible without cable end, screw clamp terminals 2 x 1.5-10 mm² rigid, screw clamp terminals 1 x 1.5-25 mm² rigid
Net weight 0.32 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.0 cm
Package 1 Width 8.5 cm
Package 1 Length 15.7 cm
Package 1 Weight 346.9 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.494 kg
