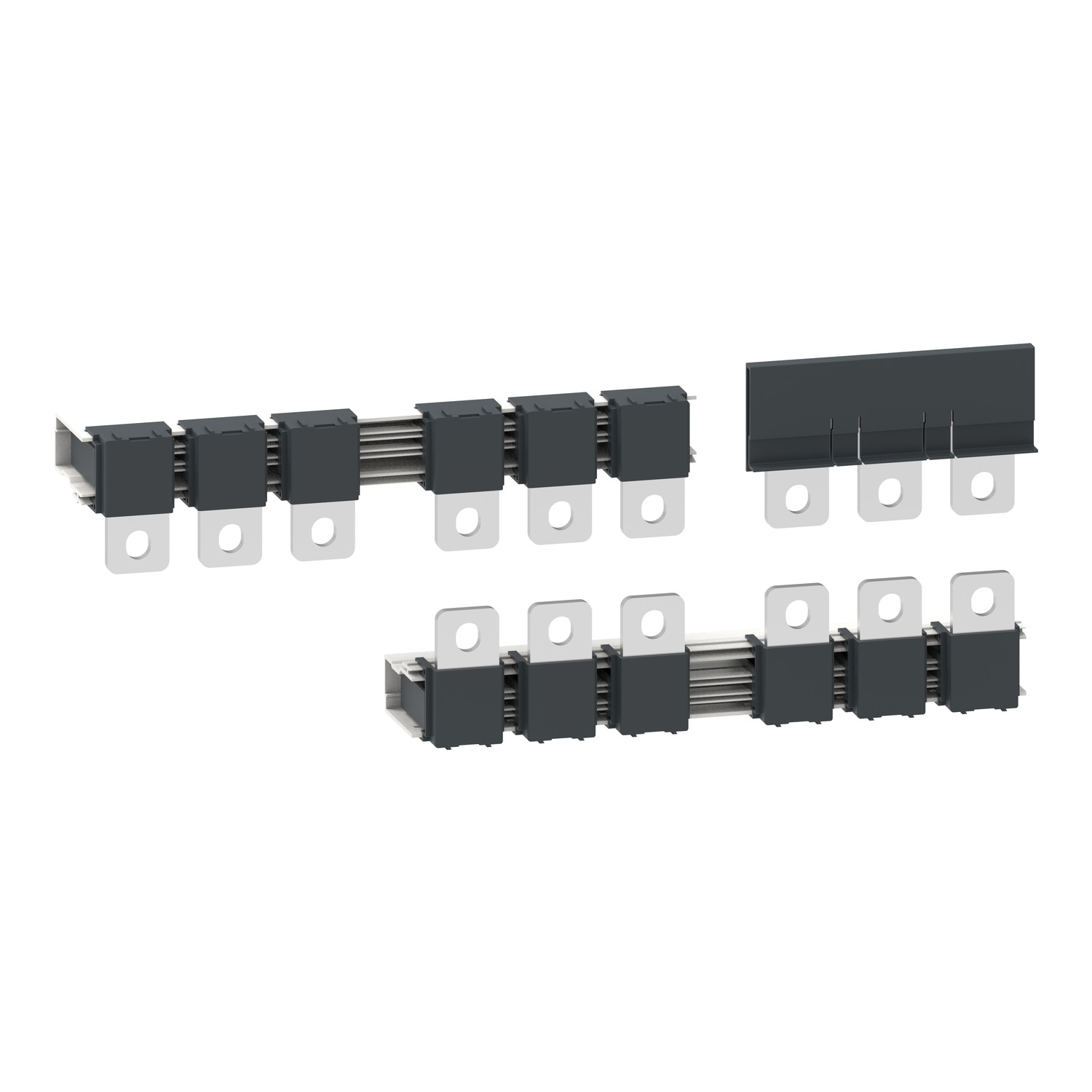

Picture of Star-Delta connection bar, for TeSys Giga contactor LC1G630-800 (Line & Delta)/LC1G265-500 (Star)
SKU:

LA9GTS330

Star-Delta connection bar, for TeSys Giga contactor LC1G630-800 (Line & Delta)/LC1G265-500 (Star)

Old price: $2,123.00 INC GST
$1,337.49 INC GST
Available for Shipping : 31-Mar-2026
Star-Delta connection bar, for TeSys Giga contactor LC1G630-800 (Line & Delta)/LC1G265-500 (Star)
  • Optimized panel design and simplified power terminal alignment saves total starter assembly time
  • IP20 cover provides enhanced safety to the complete starter or revers assemblies
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 31-Mar-2026
Circularity Profile
Instruction sheet
Catalog
Environmental Disclosure
User guide
CAD
Product Page Link
Product Data Sheet
These accessories are star delta connection Kit for TeSys Giga contactor. To be used by Line-Delta bars for TeSys Giga 630-800 contactor and Star bars for TeSys Giga 265-500 contactor. They are sold by set of 1 part. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Electrical circuit type star-delta
Quantity per set set of 1
Range TeSys
Product or component type set of connections
Accessory / separate part category connection accessory
Complementary
Product compatibility LC1G265...500
Depth 88 mm
Width 176 mm
Poles description 3P
Net weight 10.38 kg
Range compatibility TeSys Giga
Height 648.5 mm
Environment
Operating altitude 5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage -60-80 °C
Standards EN/IEC 60947-4-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.000 cm
Package 1 Width 40.000 cm
Package 1 Length 60.000 cm
Package 1 Weight 10.998 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 53.992 kg
