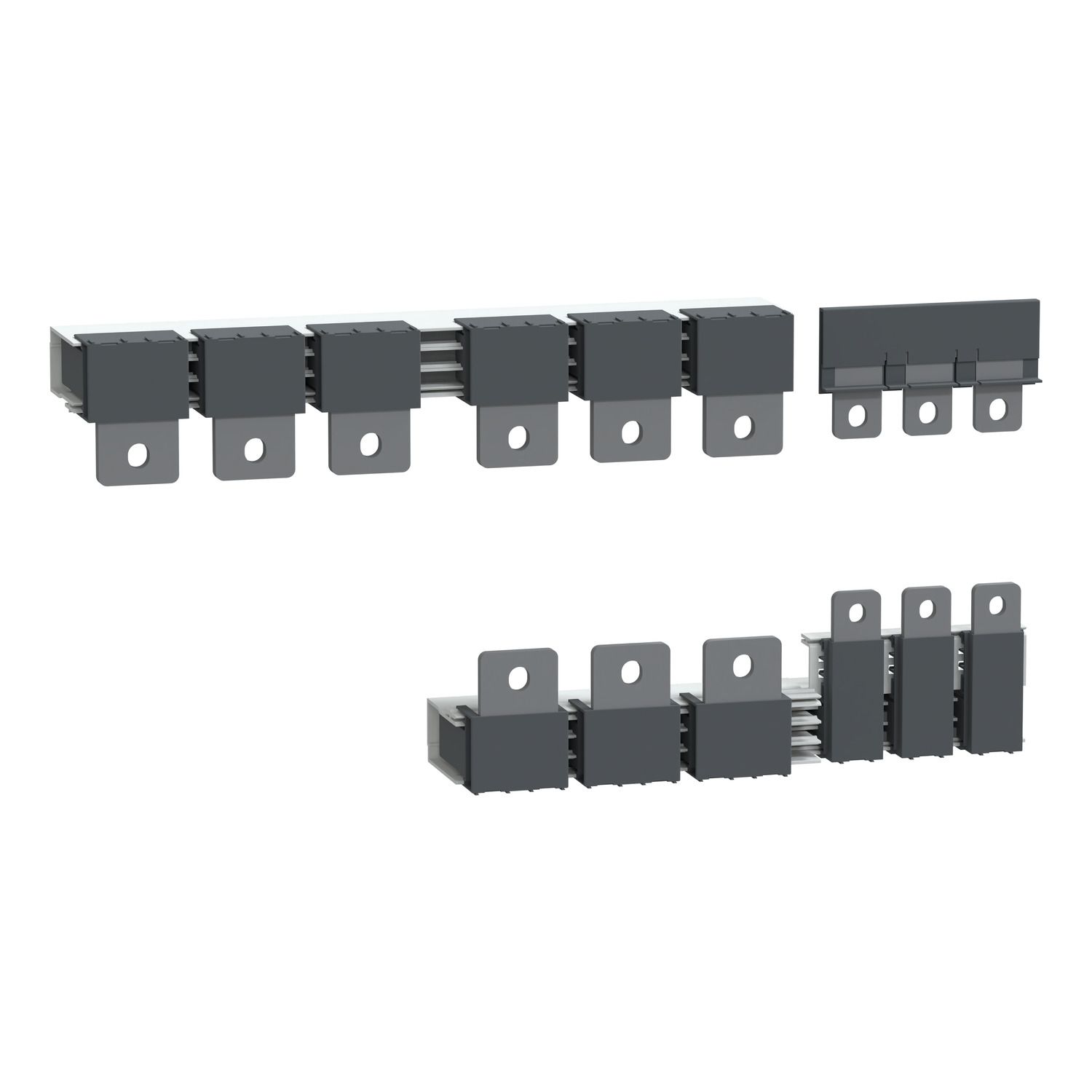

Picture of Star-Delta connection bar, for TeSys Giga contactor LC1G265-500 (Line & Delta)/LC1G115-225 (Star) with cable memory kit
SKU:

LA9GSQ331

Star-Delta connection bar, for TeSys Giga contactor LC1G265-500 (Line & Delta)/LC1G115-225 (Star) with cable memory kit

Old price: $1,139.60 INC GST
$717.95 INC GST
Available for Shipping : 23-Mar-2026
Star-Delta connection bar, for TeSys Giga contactor LC1G265-500 (Line & Delta)/LC1G115-225 (Star) with cable memory kit
  • Optimized panel design and simplified power terminal alignment saves total starter assembly time
  • IP20 cover provides enhanced safety to the complete starter or revers assemblies
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 23-Mar-2026
Circularity Profile
Instruction sheet
Catalog
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
These accessories are star delta bars with cable memory for TeSys Giga contactor. To be used by Line-Delta bars for TeSys Giga 265-500 contactor and star bars for TeSys Giga 115-225 contactor. They are sold by set of 1 part. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Range TeSys
Product or component type connection accessories
Range of product TeSys G
Complementary
Depth 405 mm
Width 145 mm
Electrical circuit type star-delta
Quantity per set set of 1
Poles description 3P
Net weight 2.2 kg
Height 65 mm
Environment
Operating altitude 5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage -60-80 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -40-60 °C
Product certifications cULus, UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.000 cm
Package 1 Width 18.000 cm
Package 1 Length 57.000 cm
Package 1 Weight 3.285 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 47.600 kg
