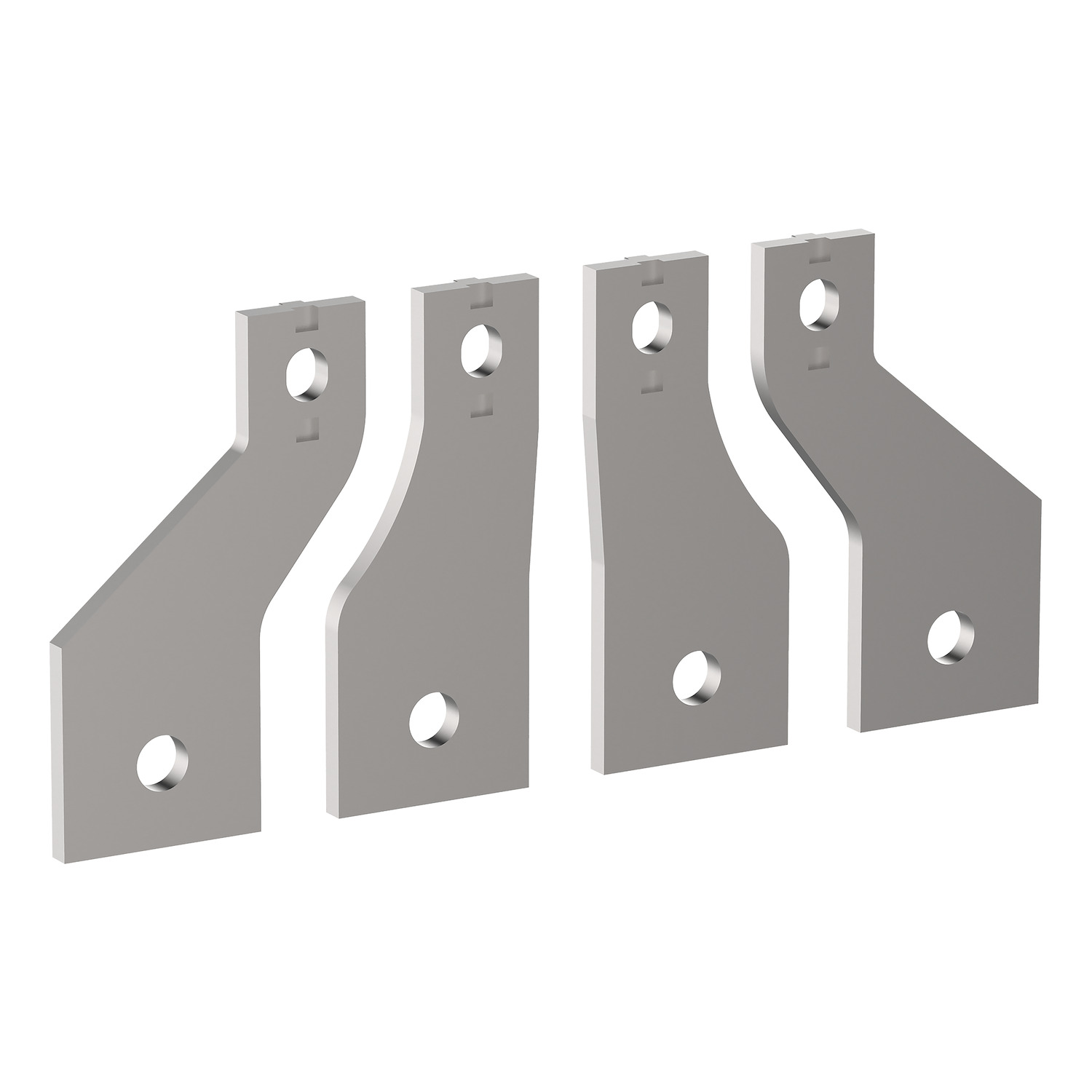

Picture of Straight terminal extension,TeSys Giga contactor,for LC1G400-500,4 pole,large connection,50 mm width
SKU:

LA9G4613

Straight terminal extension,TeSys Giga contactor,for LC1G400-500,4 pole,large connection,50 mm width

Old price: $543.95 INC GST
$342.69 INC GST
Available for Shipping : 18-Mar-2026
Straight terminal extension,TeSys Giga contactor,for LC1G400-500,4 pole,large connection,50 mm width
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Mar-2026
Circularity Profile
Catalog
Environmental Disclosure
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are straight terminal extension for TeSys Giga 400-500 contactor, 50mm wide connection. It is used to 4 Poles electrical circuit. They are screwed to the contactor terminals to increase the pitch for 50mm wide poles. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Quantity per set set of 4
Poles description 4P
Range TeSys
Product or component type terminal extension
Accessory / separate part category connection accessories
Range compatibility TeSys LR9G, TeSys LC1G
Range of product TeSys G
Complementary
Product compatibility LC1G400...500
Depth 30 mm
Width 3 mm
Net weight 1.07 kg
Connection pitch 50 mm
Height 85 mm
Environment
Operating altitude 5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage -60-80 °C
Pollution degree 3 conforming to IEC 60947-1
IP degree of protection IP20 conforming to IEC 60529
Standards GB/T 14048, CSA C22.2 No 60947-1, UL 60947-1, EN/IEC 60947-1
Ambient air temperature for operation -40-60 °C
Product certifications cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 85.0 cm
Package 1 Width 3.0 cm
Package 1 Length 30.0 cm
Package 1 Weight 1.123 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.984 kg
