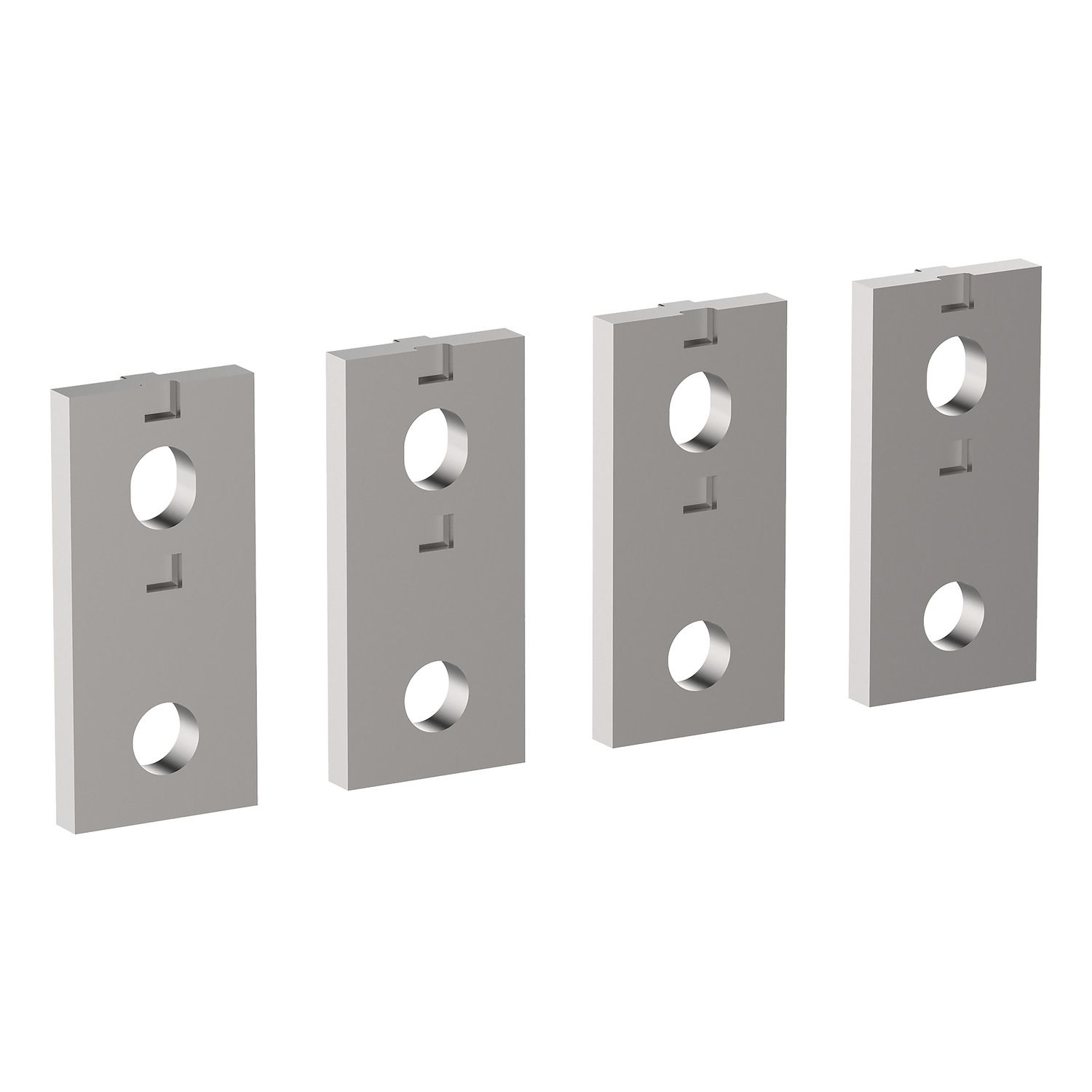

Picture of Straight terminal extension,TeSys Giga contactor,for LC1G265-500,4 pole
SKU:

LA9G4602

Straight terminal extension,TeSys Giga contactor,for LC1G265-500,4 pole

Old price: $435.60 INC GST
$274.43 INC GST
Available for Shipping : 23-Mar-2026
Straight terminal extension,TeSys Giga contactor,for LC1G265-500,4 pole
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 23-Mar-2026
Circularity Profile
Catalog
Environmental Disclosure
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are straight terminal extension bars for Tesys Giga 265-500 contactor. It is used to 4 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Quantity per set set of 4
Poles description 4P
Range TeSys
Product or component type terminal extension
Accessory / separate part category connection accessories
Range compatibility TeSys LR9G, TeSys LC1G
Range of product TeSys G
Complementary
Product compatibility LC1G265...500
Depth 30 mm
Width 3 mm
Net weight 0.39 kg
Height 37.5 mm
Environment
Operating altitude 5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage -60-80 °C
Pollution degree 3 conforming to IEC 60947-1
Standards GB/T 14048, CSA C22.2 No 60947-1, UL 60947-1, EN/IEC 60947-1
Ambient air temperature for operation -40-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.75 cm
Package 1 Width 12.5 cm
Package 1 Length 16.0 cm
Package 1 Weight 570.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.165 kg
