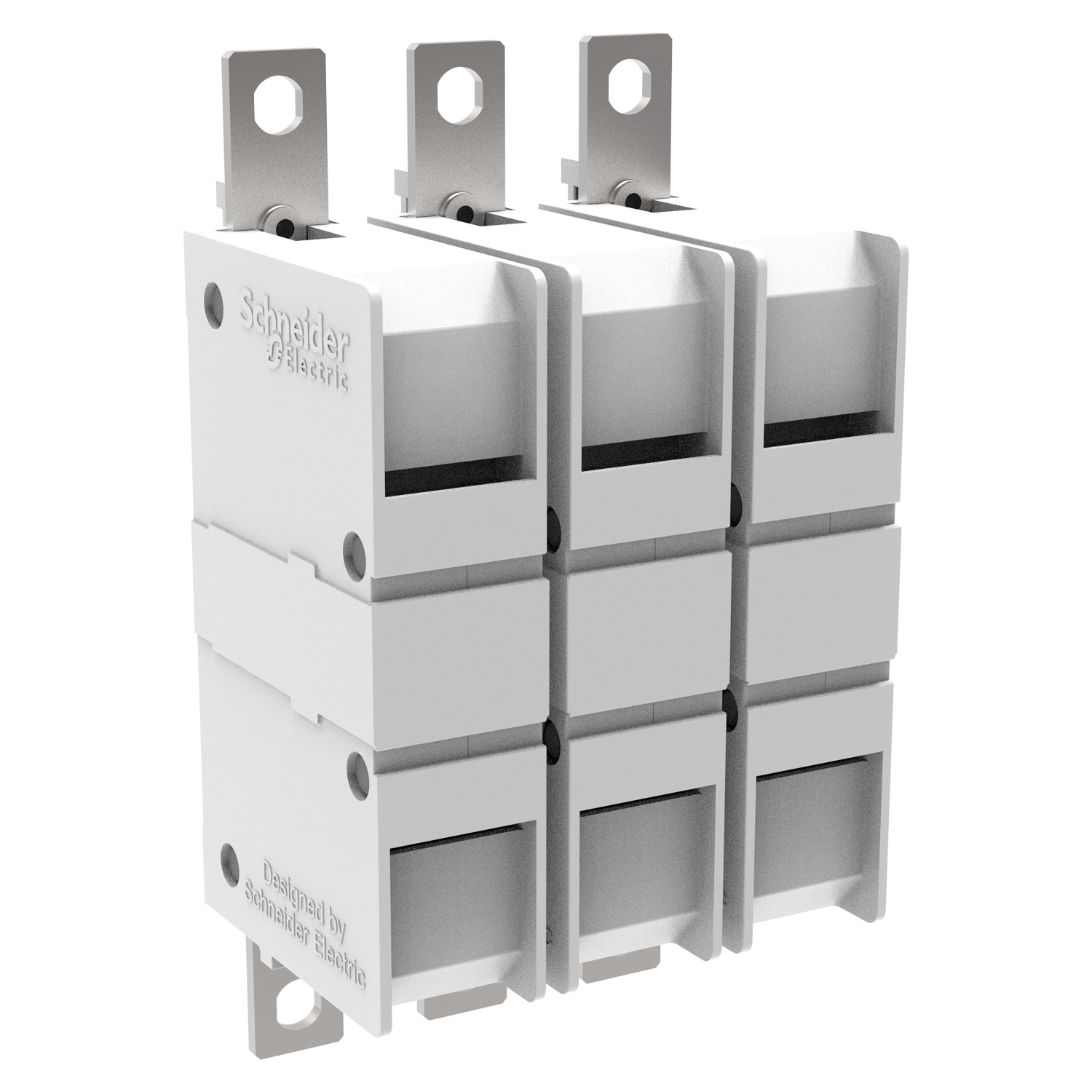

Picture of Switching Module Kit,TeSys Giga contactor,for LC1G630-800,3 pole
SKU:

LA9G3TA

Switching Module Kit,TeSys Giga contactor,for LC1G630-800,3 pole

Old price: $6,803.50 INC GST
$4,286.20 INC GST
Available for Shipping : 05-Jan-2026
Switching Module Kit,TeSys Giga contactor,for LC1G630-800,3 pole
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
CAD
Circularity Profile
Catalog
Instruction sheet
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet
These accessories are switching module for TeSys Giga 630-800 contactor. It is used to 3 Poles electrical circuit. It is possibility to replace switching module (main contacts), enhancement contactor life. Switching modules can be replaced quickly and easily, thanks to their plug and play design. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Quantity per set set of 3
Range TeSys
Product or component type switch module
Range of product TeSys G
Complementary
Accessory / separate part type kit
Product compatibility LC1G630...800
Width 284 mm
Poles description 3P
Depth 202-202 mm
Maximum [Ie] rated operational current 800 A AC-3 <= 440 V at 40 °C, 1050 A AC-1 <= 440 V at 40 °C
Net weight 8.5 kg
Height 127.5 mm
Connections - terminals bolted connection
Environment
Operating altitude 5000 m with derating factor, 3000 m without power derating
Ambient air temperature for storage -60-80 °C
Pollution degree 3 conforming to IEC 60947-1
Standards GB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 24.200 cm
Package 1 Width 36.500 cm
Package 1 Length 35.400 cm
Package 1 Weight 11.177 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 55.308 kg
