Picture of Spreader Kit,TeSys Giga contactor,for LC1G115-225,3 pole,box lug connections,35-45 mm pole pitch
SKU:

LA9G3711

Spreader Kit,TeSys Giga contactor,for LC1G115-225,3 pole,box lug connections,35-45 mm pole pitch

Old price: $335.50 INC GST
$211.36 INC GST
Available for Shipping : 23-Mar-2026
Spreader Kit,TeSys Giga contactor,for LC1G115-225,3 pole,box lug connections,35-45 mm pole pitch
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 23-Mar-2026
Circularity Profile
Catalog
Environmental Disclosure
User guide
Instruction sheet
Product Page Link
Product Data Sheet

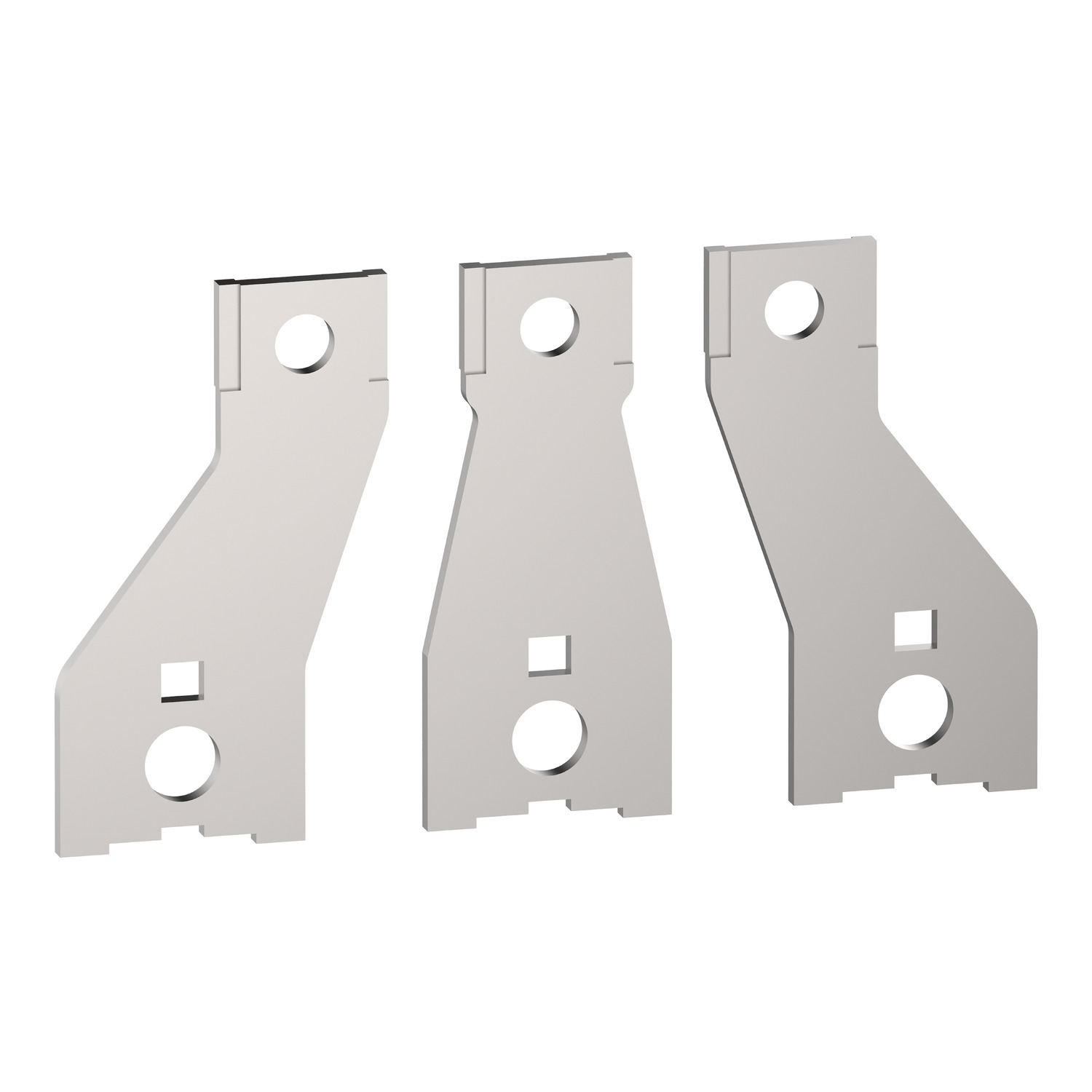

These accessories are terminal adapters for TeSys Giga 115-225 contactor. It is used to 3 Poles electrical circuit. They are screwed to the contactor terminals to increase the pitch between poles from 35mm to 45mm. The rated current is up to 225 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Quantity per set set of 3
Poles description 3P
Range TeSys
Product or component type spreader
Accessory / separate part category connection accessories
Range compatibility TeSys LR9G, TeSys LC1G
Range of product TeSys G
Complementary
Product compatibility LC1G115...225
Depth 80 mm
Width 52.5 mm
Net weight 0.18 kg
Height 3 mm
Environment
Operating altitude 5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage -60-80 °C
Pollution degree 3 conforming to IEC 60947-1
Standards GB/T 14048, CSA C22.2 No 60947-1, UL 60947-1, EN/IEC 60947-1
Ambient air temperature for operation -40-60 °C
Product certifications UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.0 cm
Package 1 Width 5.25 cm
Package 1 Length 8.0 cm
Package 1 Weight 341.0 g
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.14 kg
