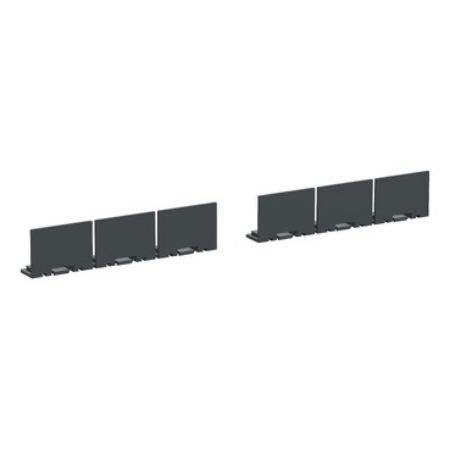

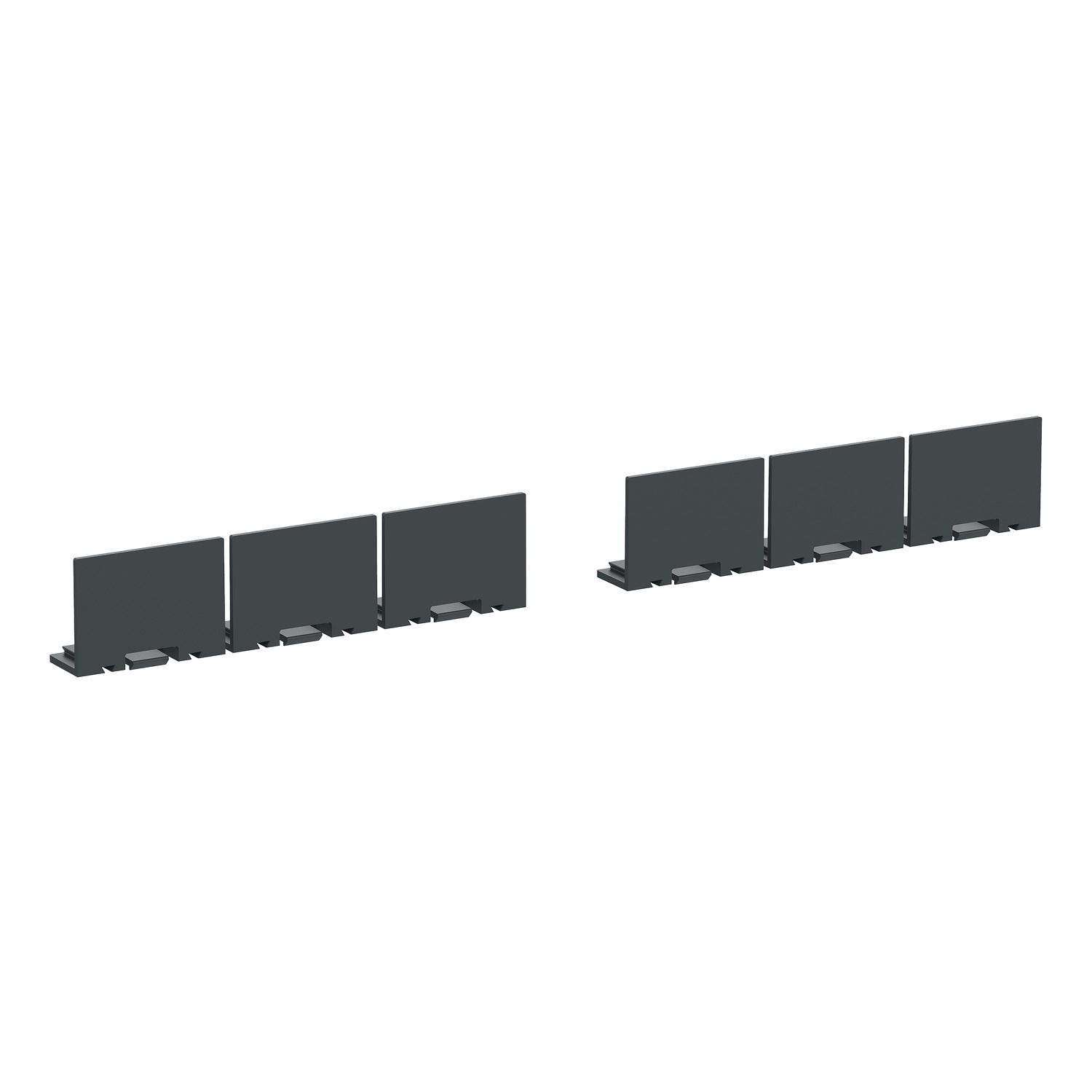

Picture of Lug cover,TeSys Giga contactor,for LC1G115-800,3 Pole,coupling assembly,IP20
SKU:

LA9G3707

Lug cover,TeSys Giga contactor,for LC1G115-800,3 Pole,coupling assembly,IP20

Old price: $21.67 INC GST
$13.65 INC GST
Available for Shipping : 23-Mar-2026
Lug cover,TeSys Giga contactor,for LC1G115-800,3 Pole,coupling assembly,IP20
  • Designed to meet needs of demanding applications built-in with advanced features and functionalities
  • Less number of references, simple to select, choose means less inventory
  • Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
  • Wide range of power terminal accessories to help different panel assemblies and multiple choices to suit every needs
  • Modularity design and compact size for easy maintenance, short down times and less installation space consumption
  • Unique QR code, quick access to complete product data, technical video, anti-fake checking and instruction sheet
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 23-Mar-2026
Circularity Profile
Instruction sheet
Catalog
User guide
Environmental Disclosure
Product Page Link
Product Data Sheet
These accessories are lug cover for TeSys Giga 115-800 contactor. It is used to 3 Poles electrical circuit. It provides IP20 protection conforming to IEC 60529. It could be assembled by coupling. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Products specifications

Attribute name Attribute value
Main
Device short name LA9G
Quantity per set set of 6
Poles description 3P
Range TeSys
Product or component type lug shield
Range of product TeSys G
Complementary
Product compatibility LC1G630...800, LC1G265...500, LC1G115...225
Depth 35 mm
Width 30 mm
Range compatibility TeSys G
IP degree of protection IP20 conforming to IEC 60529
Net weight 0.055 kg
Height 40 mm
Environment
Operating altitude 5000 m with derating factor, 3000 m without derating
Ambient air temperature for storage -60-80 °C
Pollution degree 3 conforming to IEC 60947-1
Standards GB/T 14048.4, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1
Ambient air temperature for operation -25-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.5 cm
Package 1 Width 9.5 cm
Package 1 Length 14.0 cm
Package 1 Weight 27.0 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.697 kg
