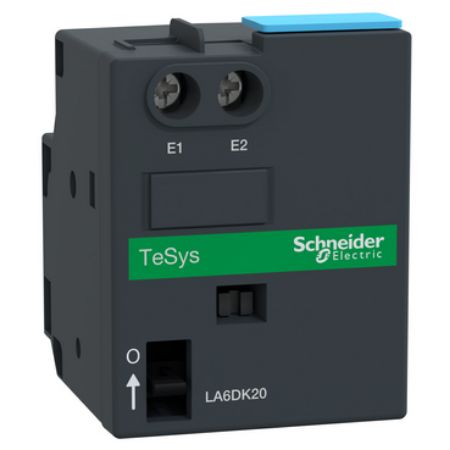

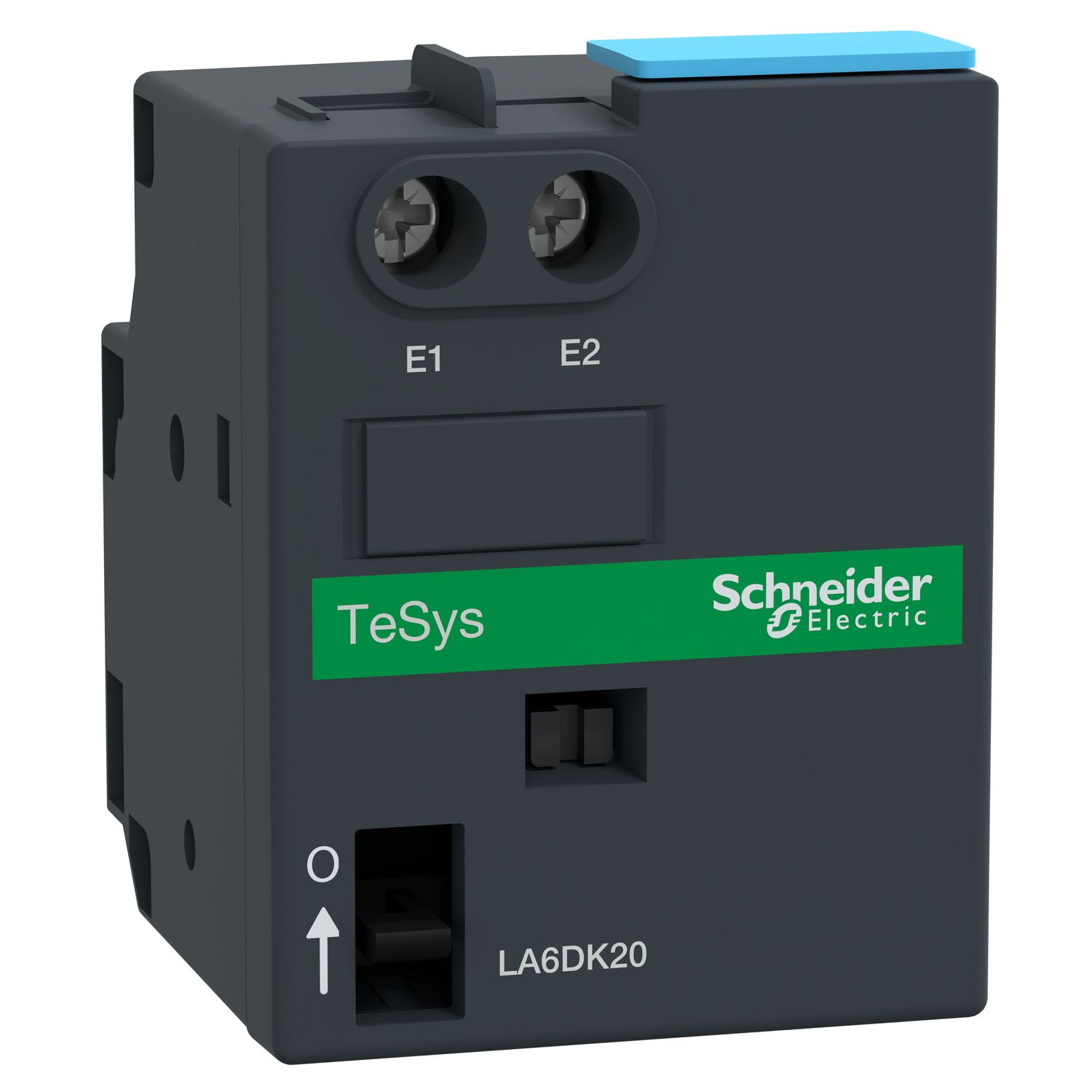

Picture of TeSys, Mechanical latch block, TeSys Deca, 42...48V AC/DC
SKU:

LA6DK20E

TeSys, Mechanical latch block, TeSys Deca, 42...48V AC/DC

Old price: $301.95 INC GST
$190.23 INC GST
Available for Shipping : 03-Feb-2026
TeSys, Mechanical latch block, TeSys Deca, 42...48V AC/DC
  • Helps to save contactor coil consumption and reduce carbon footprint
  • Front add-on design ensures product flexibility
  • Easy installation without needs of any tools
  • Flexible connection with multi-standard screws
  • IP2X degree electrical protection
  • New Product signature to align with TeSys Deca series
  • Enhanced digital customer experience with access to all product data and documents
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Circularity Profile
Environmental Disclosure
Catalog
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
TeSys Deca mechanical latch block, for contactors LC1D80-D150 (3P/4P) and LP1D40-80 (4P). Electrical latching and unlatching is performed applying a 42-48V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Range TeSys
Product or component type mechanical latch block
Product compatibility LC1D115 3 phases + neutral DC, LP1D80 3 phases + neutral DC, LC1D115 3 phases + neutral AC, LC1D80 3 phases + neutral AC, LC1D150 3 phases DC, LC1D80 3 phases DC, LC1D80...D150 3 phases AC
Range of product TeSys Deca
[Uc] control circuit voltage 42/48 V DC, 42/48 V AC 50/60 Hz
Complementary
Power required in VA 25 for AC circuit
On-load factor 10 %
Mechanical durability 500000 cycles
Maximum operating rate 1200 cyc/h
[Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1
Mounting location front side
Net weight 0.09 kg
Tripping control manual, electrical
Power required in W 30 W for DC circuit
Environment
Protective treatment TH conforming to IEC 60068
Ambient air temperature for storage -40-80 °C
IP degree of protection IP2X conforming to IEC 60529
Ambient air temperature for operation -25-55 °C
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 6.500 cm
Package 1 Length 4.700 cm
Package 1 Weight 99.000 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 3.368 kg
Unit Type of Package 3 3
Number of Units in Package 3 1024
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 115.776 kg
