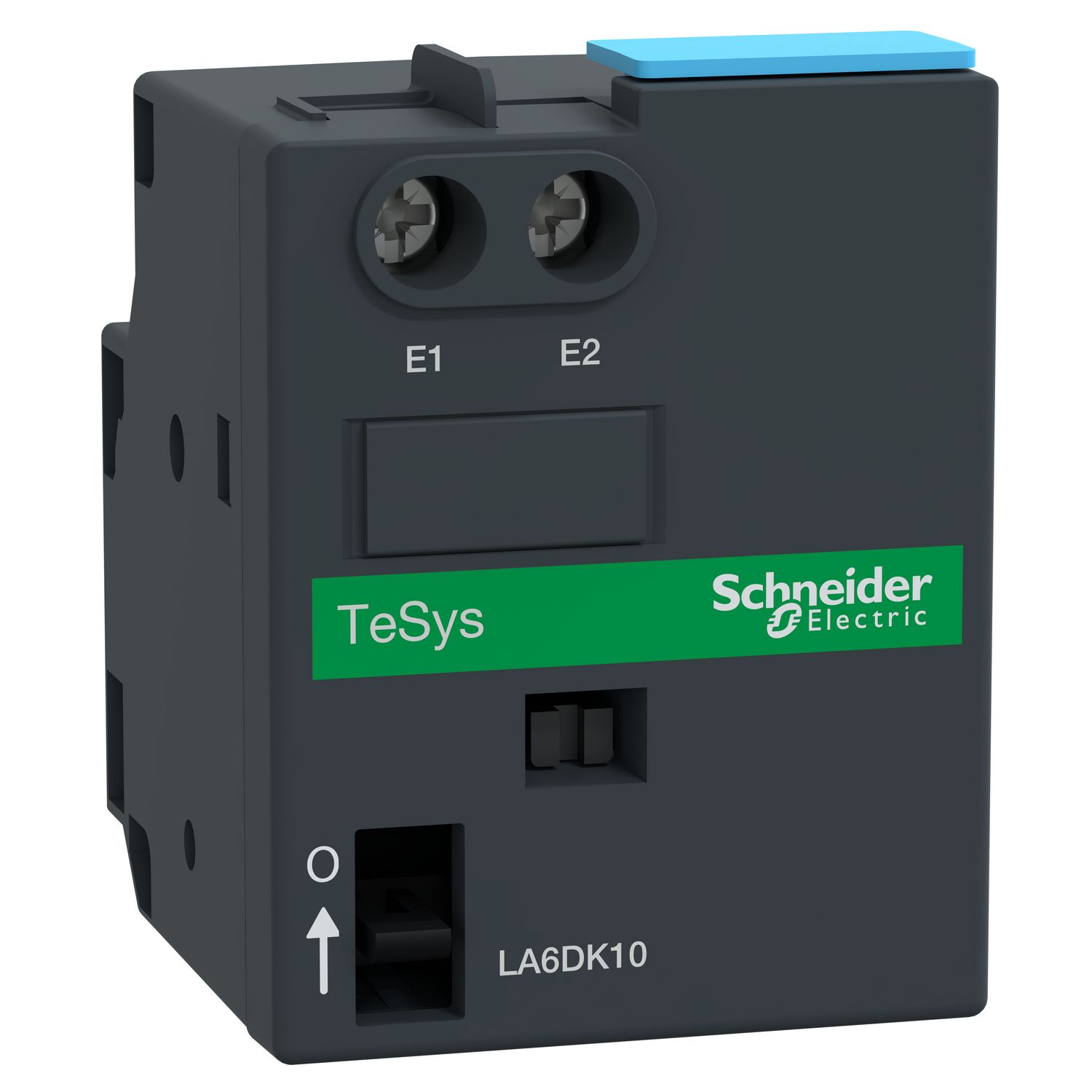

Picture of Mechanical latch block, TeSys Deca, 256...277V AC/DC
SKU:

LA6DK10U

Mechanical latch block, TeSys Deca, 256...277V AC/DC

Old price: $207.24 INC GST
$130.56 INC GST
Available for Shipping : 13-Jan-2026
Mechanical latch block, TeSys Deca, 256...277V AC/DC
  • Helps to save contactor coil consumption and reduce carbon footprint
  • Front add-on design ensures product flexibility
  • Easy installation without needs of any tools
  • Flexible connection with multi-standard screws
  • IP2X degree electrical protection
  • New Product signature to align with TeSys Deca series
  • Enhanced digital customer experience with access to all product data and documents
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Circularity Profile
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
TeSys Deca mechanical latch block, for contactors LC1D40-D65 and LP1D40-65. Electrical latching and unlatching is performed applying a 256...277 DC/AC control voltage pulse. Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Range TeSys
Product or component type mechanical latch block
Product compatibility LC1D65 3 phases + neutral AC, LP1D65 3 phases + neutral DC, LP1D40 3 phases + neutral DC, LC1D40 3 phases + neutral AC
Range of product TeSys Deca
[Uc] control circuit voltage 256/277 V DC, 256/277 V AC 50/60 Hz
Complementary
Power required in VA 25 for AC circuit
On-load factor 10 %
Mechanical durability 500000 cycles
Maximum operating rate 1200 cyc/h
[Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1
Mounting location front side
Net weight 0.07 kg
Tripping control electrical, manual
Power required in W 30 W for DC circuit
Environment
Protective treatment TH conforming to IEC 60068
Ambient air temperature for storage -40-80 °C
IP degree of protection IP2X conforming to VDE 0106
Ambient air temperature for operation -25-55 °C
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.300 cm
Package 1 Width 6.500 cm
Package 1 Length 5.000 cm
Package 1 Weight 95.000 g
Unit Type of Package 2 2
Number of Units in Package 2 90
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 8.810 kg
Unit Type of Package 3 3
Number of Units in Package 3 1440
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 148.960 kg

Related products

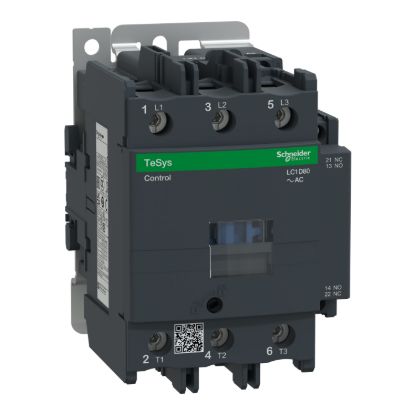

Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 80A, 220V AC 50/60Hz coil
