Picture of Mechanical latch block, TeSys Deca, 220...240V AC/DC
SKU:

LA6DK10M

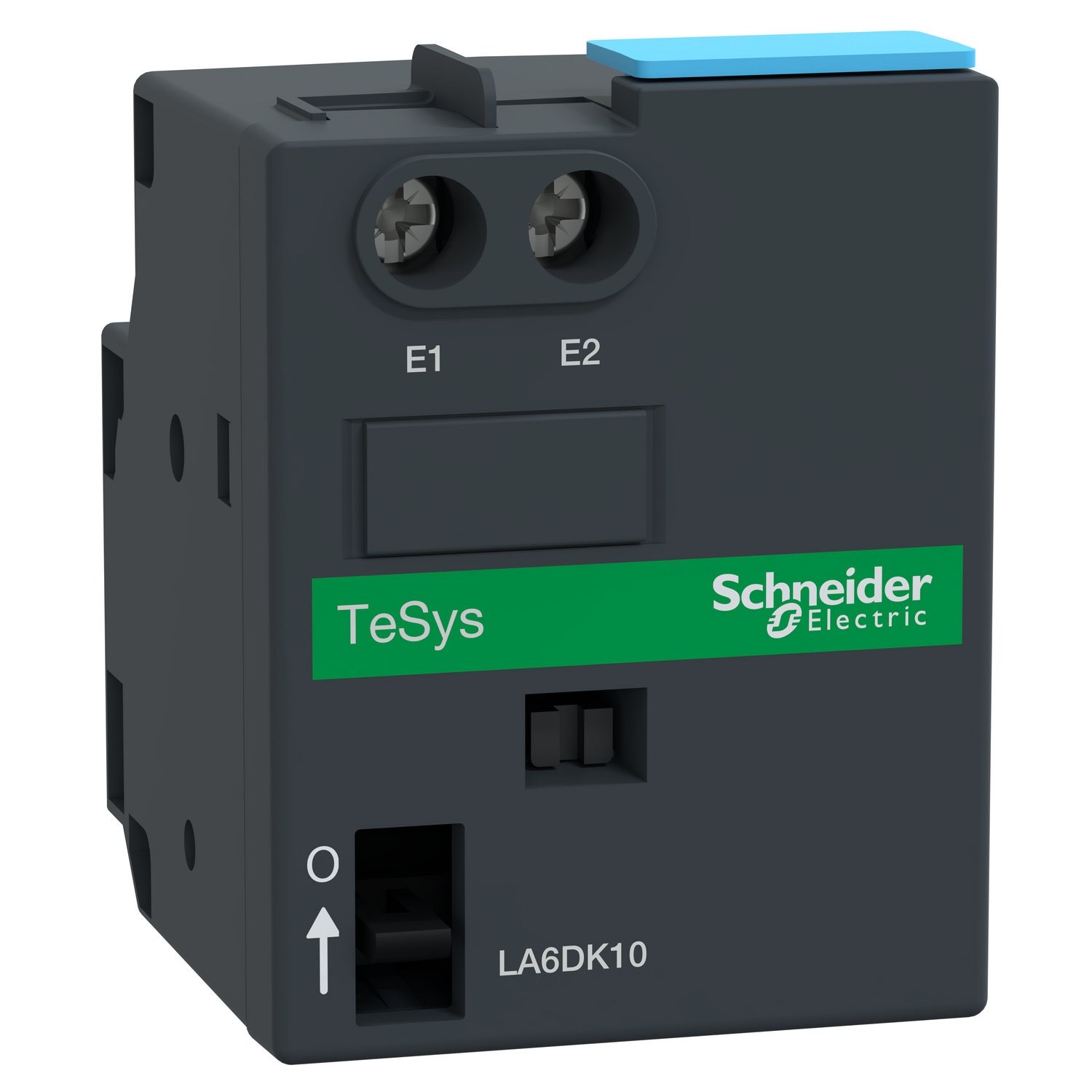

Mechanical latch block, TeSys Deca, 220...240V AC/DC

Old price: $207.24 INC GST
$130.56 INC GST
Available for Shipping : 12-Jan-2026
Mechanical latch block, TeSys Deca, 220...240V AC/DC
  • Helps to save contactor coil consumption and reduce carbon footprint
  • Front add-on design ensures product flexibility
  • Easy installation without needs of any tools
  • Flexible connection with multi-standard screws
  • IP2X degree electrical protection
  • New Product signature to align with TeSys Deca series
  • Enhanced digital customer experience with access to all product data and documents
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
TeSys Deca mechanical latch block, for contactors LC1D40-D65 and LP1D40-65. Electrical latching and unlatching is performed applying a 220...240 DC/AC control voltage pulse. Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Range TeSys
Product or component type mechanical latch block
Product compatibility LC1D65 3 phases + neutral AC, LP1D65 3 phases + neutral DC, LP1D40 3 phases + neutral DC, LC1D40 3 phases + neutral AC
Range of product TeSys Deca
[Uc] control circuit voltage 220/240 V DC, 220/240 V AC 50/60 Hz
Complementary
Power required in VA 25 for AC circuit
On-load factor 10 %
Mechanical durability 500000 cycles
Maximum operating rate 1200 cyc/h
[Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1
Mounting location front side
Net weight 0.07 kg
Tripping control manual, electrical
Power required in W 30 W for DC circuit
Environment
Protective treatment TH conforming to IEC 60068
Ambient air temperature for storage -40-80 °C
IP degree of protection IP2X conforming to VDE 0106
Ambient air temperature for operation -25-55 °C
Product certifications UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.600 cm
Package 1 Width 6.500 cm
Package 1 Length 5.000 cm
Package 1 Weight 98.000 g
Unit Type of Package 2 2
Number of Units in Package 2 32
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.356 kg
