SKU:

LA4KE1B

TeSys K, Suppressor module, varistor, 12...24V

Old price: $39.49 INC GST

Price: $24.88 INC GST

Qty:

Available for Shipping : 08-Dec-2025

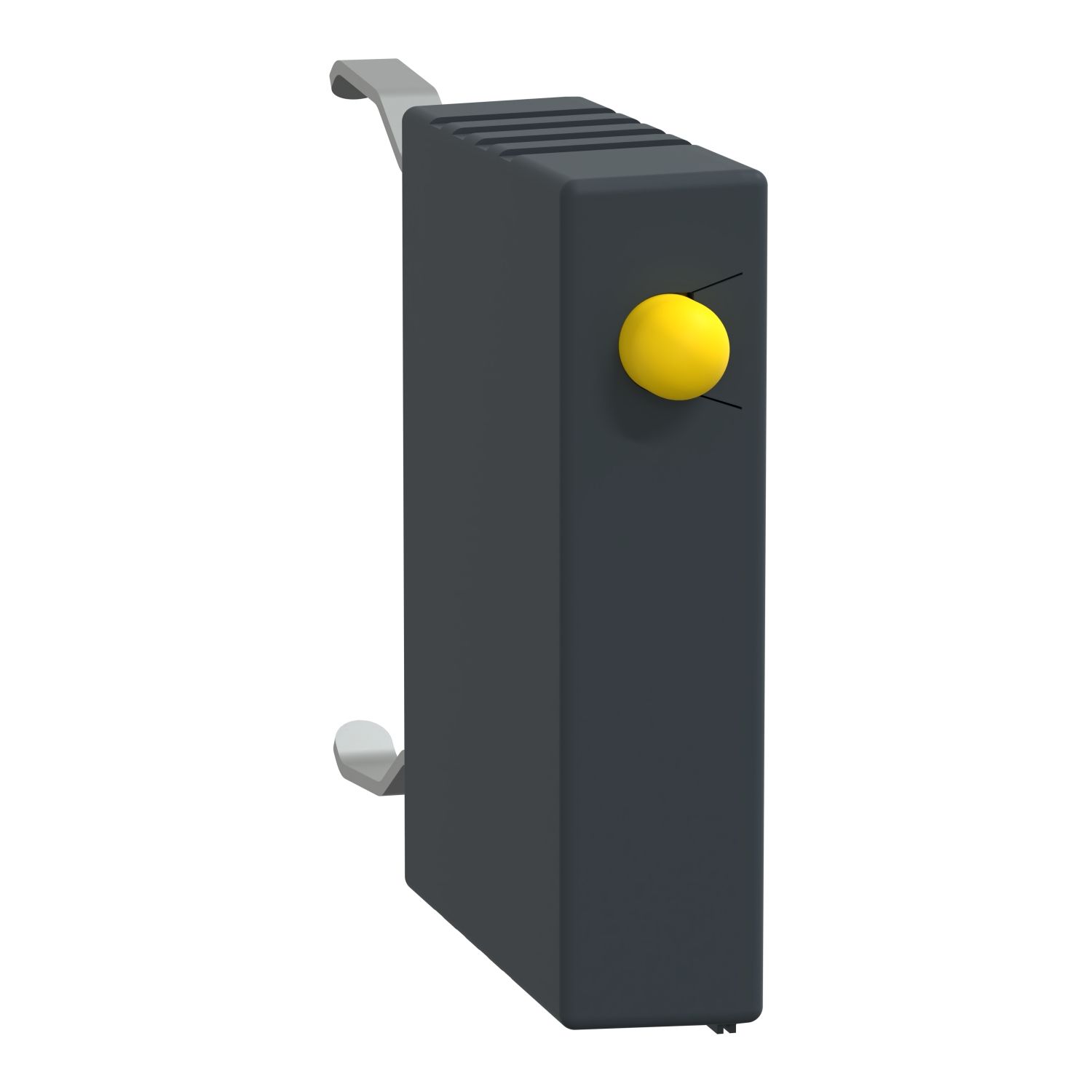

TeSys K, Suppressor module, varistor, 12...24V

Meet the need for coil protection for TeSys K contactor

Suppressor module

Front side mounting by click-on

Replacable

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 08-Dec-2025

Instruction sheet

Environmental Disclosure

Catalog

Declaration of conformity

Product Page Link

Product Data Sheet

TeSys K suppressor module, for contactors LC.K, LP.K, CA.K. To be used with 12-24V AC or DC control circuits, it provides a varistor protection limiting the transient voltage to 2 Uc max. Clip-on mounting on front of contactor (no tools required), it incorporates a power-on LED indicator. Sold in lots of 5 units. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	LA4K
Product compatibility	CA3K, CA2K, LP4K, LP1K, LC1K
Range	TeSys
Product or component type	suppressor module
Range of product	TeSys K
Complementary
Suppressor technology	varistor (peak limiting)
Depth	22 mm
Width	6 mm
Quantity per set	set of 5
Compatibility code	LA4K
Local signalling	LED
Mounting mode	clip-on
Maximum peak voltage	2 Uc
Mounting location	front side
Net weight	0.01 kg
Height	26 mm
[Uc] control circuit voltage	12...24 V AC, 12...24 V DC
Environment
Protective treatment	TC conforming to DIN 50016, TC conforming to IEC 60068
Ambient air temperature for storage	-50-80 °C
IP degree of protection	IP2X conforming to IEC 60529
Standards	EN/IEC 60947-5-1, CSA C22.2 No 60947-5-1, UL 60947-5-1
Ambient air temperature for operation	-25-50 °C
Product certifications	UKCA, CE, CSA, UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	0.800 cm
Package 1 Width	2.800 cm
Package 1 Length	4.200 cm
Package 1 Weight	4.000 g
Unit Type of Package 2	2
Number of Units in Package 2	5
Package 2 Height	3.000 cm
Package 2 Width	4.200 cm
Package 2 Length	5.000 cm
Package 2 Weight	27.000 g
Unit Type of Package 3	3
Number of Units in Package 3	420
Package 3 Height	15.000 cm
Package 3 Width	15.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	2.630 kg
