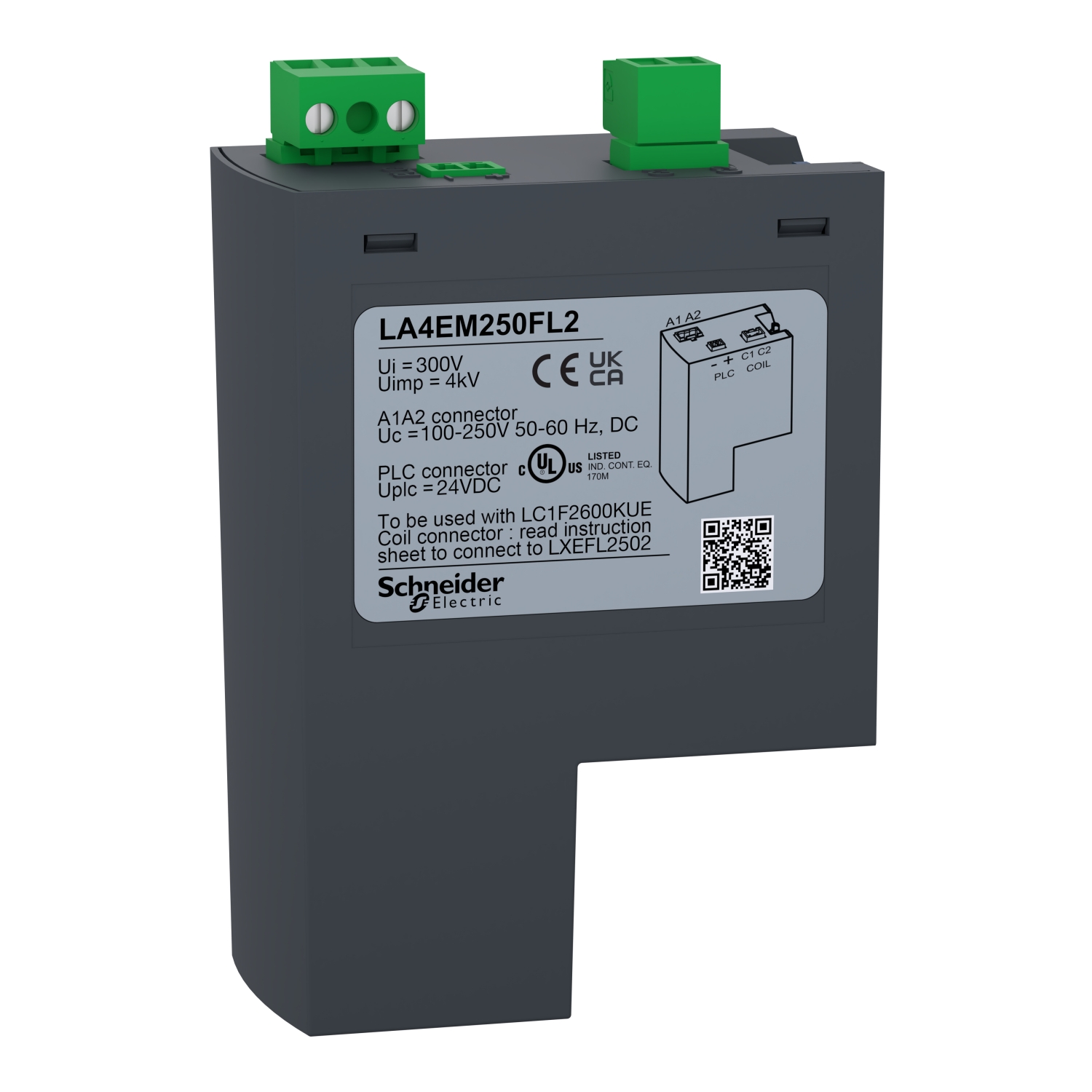

Picture of Electronic control module,TeSys F,for LXEFL2502 coil,2600A AC-1
SKU:

LA4EM250FL2

Electronic control module,TeSys F,for LXEFL2502 coil,2600A AC-1

Old price: $6,671.50 INC GST
$4,203.04 INC GST
Availability: Please contact our sales team on 1300 724 622.
Electronic control module,TeSys F,for LXEFL2502 coil,2600A AC-1
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Declaration of conformity
Catalog
Environmental Disclosure
CAD
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Mechanical durability 0.5 Mcycles
Device short name LA4EM
Product compatibility LC1F2600
Input voltage limits 11...30 V on-state for PLC input, 0...5 V off-state for PLC input
Maximum operating rate 600 cyc/h 55 °C
Input compatibility PLC 24 V DC conforming to IEC 61131-2 Type 2
Installed device LXEFL2502
Range TeSys
Product or component type electronic control module
Range compatibility TeSys TeSys F LXEFL specific contactor coil, TeSys TeSys F LC1F contactor
Control circuit type DC, AC at 50/60 Hz
Range of product TeSys F
[Uc] control circuit voltage 100...250 V DC, 100...250 V AC 50/60 Hz
Complementary
Heat dissipation 16-20 W
Hold-in power consumption in VA 21.1-24.5 VA 50/60 Hz cos phi 0.5 (at 20 °C)
Inrush power in W 1300-2400 W (at 20 °C)
Coil technology built-in bidirectional peak limiting
Inrush power in VA 1100-2300 VA 50/60 Hz cos phi 0.5 (at 20 °C)
Connections - terminals control circuit: removable screw terminal block 1 cable(s) 0.2-2.5 mm² solid, control circuit: removable screw terminal block 1 cable(s) 0.25-2.5 mm² flexible with cable end, control circuit: removable screw terminal block 1 cable(s) 0.2-2.5 mm² flexible without cable end
Hold-in power consumption in W 14-18 W at 20 °C
Tightening torque 0.5...0.6 N.m for control circuit
Control circuit voltage limits drop-out: 0...51 V DC (at 55 °C), drop-out: 0...65 V AC 50/60 Hz (at 55 °C), operational: 85...275 V AC/DC (at 55 °C)
Environment
Net weight 0.19 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 8.2 cm
Package 1 Length 16.1 cm
Package 1 Weight 220.0 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.656 kg
