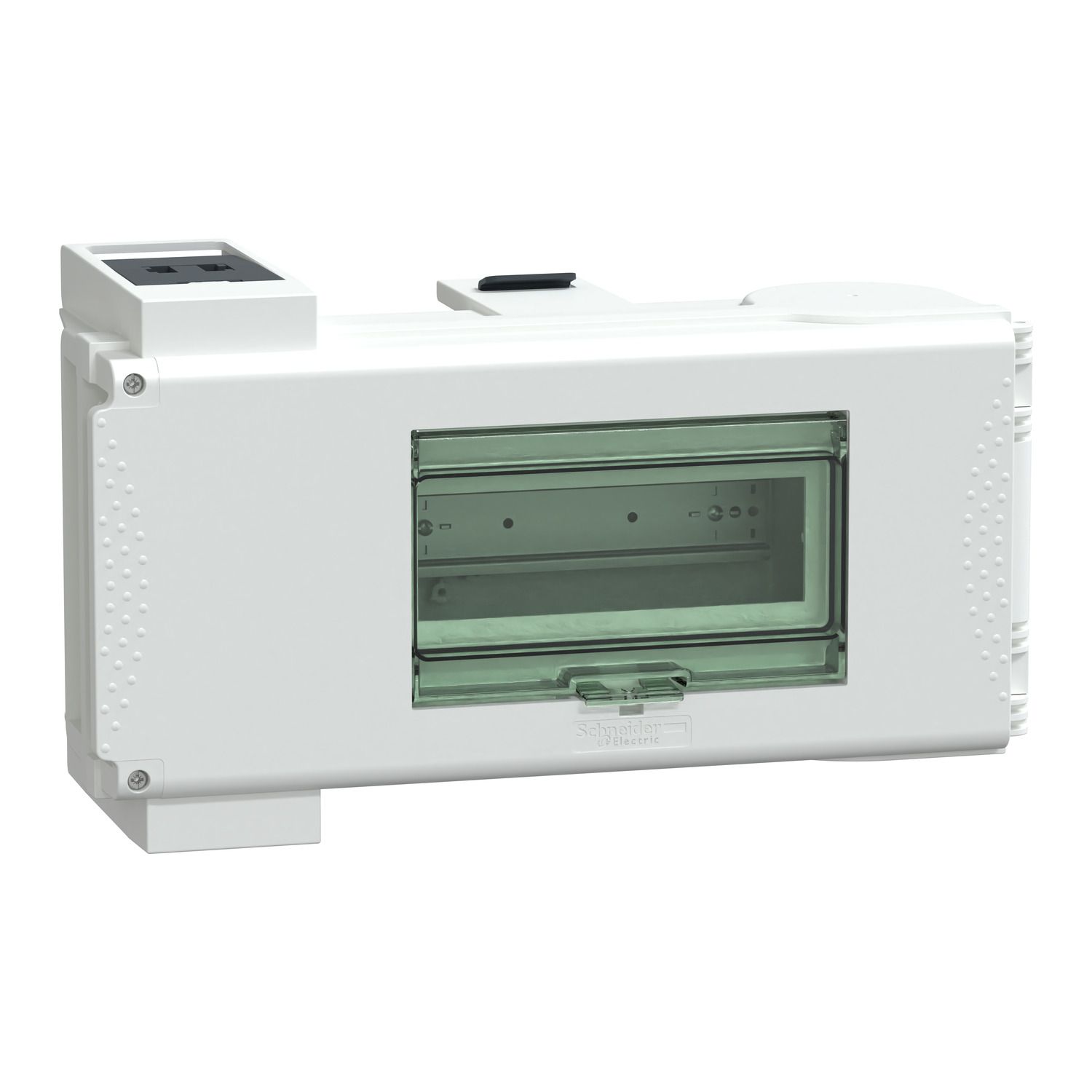

Picture of Tap off unit, Canalis KS 100A to 1000A, 5 modules of 18mm, 63A, DIN rail, 3L+PEN, IP55, RAL9001
SKU:

KSB63SM58

Tap off unit, Canalis KS 100A to 1000A, 5 modules of 18mm, 63A, DIN rail, 3L+PEN, IP55, RAL9001

$325.38 INC GST
Available for Shipping : 16-Dec-2025
Tap off unit, Canalis KS 100A to 1000A, 5 modules of 18mm, 63A, DIN rail, 3L+PEN, IP55, RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Dec-2025
Declaration of conformity
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TN-C earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 63A. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L+PEN. It provided protection for miniature circuit breaker (MCB) (Circuit breaker to be ordered separately). It provided tap-off unit disconnection by right opening the door. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Colour white (RAL 9001)
Tap-off unit polarity 3L+PEN
Product compatibility Canalis KT busbar trunking with KS type plug-in, Canalis KS busbar trunkingplug-in
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 63-63 A
Range compatibility Canalis KT busbar trunking, Canalis KS busbar trunking
Protection type circuit breaker: miniature circuit breaker (MCB)
Range of product Canalis
Mounting mode plug-in with fixed polarity
Complementary
Device application medium power distribution
[Ui] rated insulation voltage 690 V depending on protective device, 500 V depending on protective device, 400 V depending on protective device
Depth 133 mm
Width 444 mm
[Ue] rated operational voltage 230...690 V depending on protective device
Body material plastic
Door opening side right
Function available fuse isolator
Electrical connection lugs - ISO63 16-16 mm² rigid, lugs - ISO63 16-16 mm² flexible
Tap-off unit disconnection mode By opening the door
Net weight 2.4 kg
18 mm pitches 8
Standards IEC 61439-1, IEC 61439-6
[Uimp] rated impulse withstand voltage 6.8 kV
Provided equipment circuit-breaker to be ordered separately
Door opening size 432.5 mm
Height 220 mm
Network frequency 50/60 Hz
Environment
Earthing system TN-C
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.000 cm
Package 1 Width 20.300 cm
Package 1 Length 35.700 cm
Package 1 Weight 1.980 kg
Unit Type of Package 2 2
Number of Units in Package 2 38
Package 2 Height 195.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 100.340 kg
