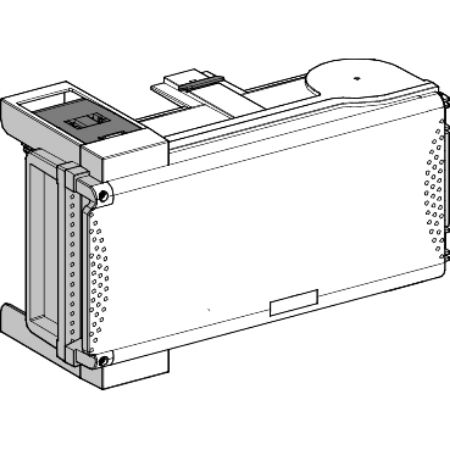

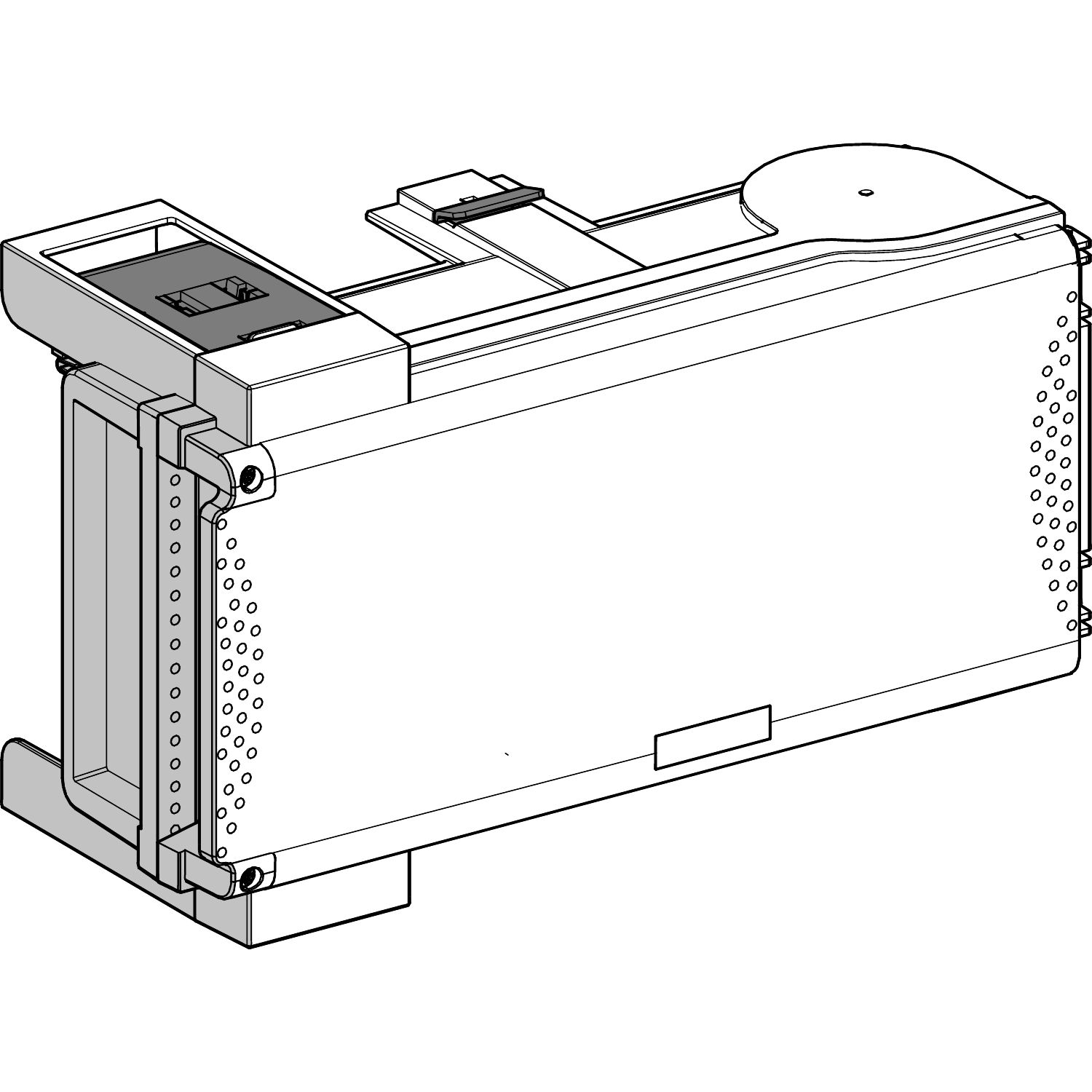

Picture of Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 50A, NZ fuses not supplied, 3L+PEN, IP55, RAL9001
SKU:

KSB50SN5

Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 50A, NZ fuses not supplied, 3L+PEN, IP55, RAL9001

$406.56 INC GST
Available for Shipping : 12-Apr-2026
Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 50A, NZ fuses not supplied, 3L+PEN, IP55, RAL9001
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Apr-2026
Declaration of conformity
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Fuse type fuse isolator: Neozed fuse, size E18 conforming to DIN
Colour white (RAL 9001)
Tap-off unit polarity 3L+PEN
Product compatibility Canalis KT busbar trunking with KS type plug-in, Canalis KS busbar trunkingplug-in
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 50-50 A at 35 °C
Range compatibility Canalis KS busbar trunking, Canalis KT busbar trunking
Provided equipment fuse to be ordered separately
Range of product Canalis
Mounting mode plug-in with fixed polarity
Complementary
Device application medium power distribution
[Ui] rated insulation voltage 500 V depending on protective device
Depth 103 mm
Width 356 mm
[Ue] rated operational voltage 230...690 V depending on protective device
Body material plastic
Door opening side right
Function available fuse isolator
Electrical connection cable clamp terminal - ISO50 25-25 mm² rigid, cable clamp terminal - ISO50 25-25 mm² flexible
Tap-off unit disconnection mode By opening the door
Net weight 2.4 kg
Standards IEC 61439-6, IEC 61439-1
[Uimp] rated impulse withstand voltage 6.8 kV
Door opening size 432.5 mm
Height 167 mm
Network frequency 50/60 Hz
Environment
Earthing system TN-C
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.000 cm
Package 1 Width 20.300 cm
Package 1 Length 35.700 cm
Package 1 Weight 2.272 kg
Unit Type of Package 2 2
Number of Units in Package 2 38
Package 2 Height 80.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 105.336 kg
