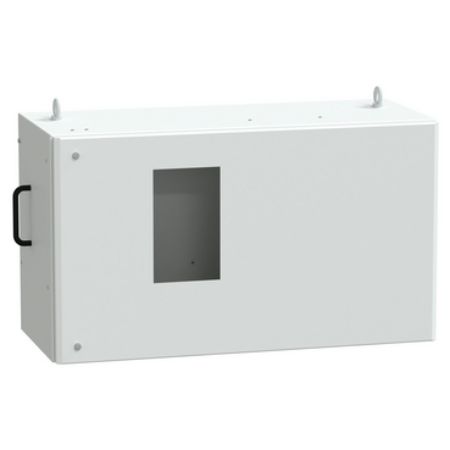

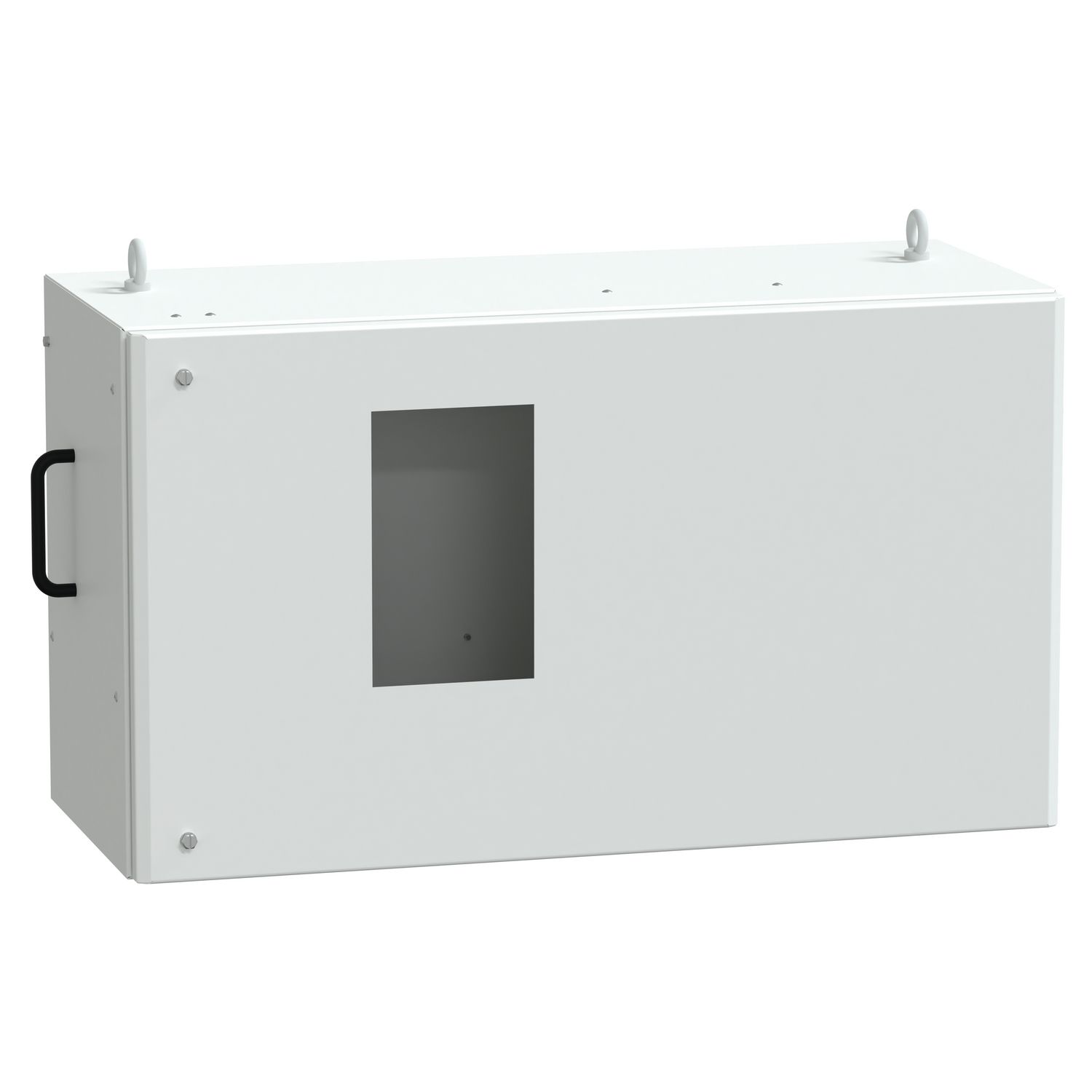

Picture of Tap off unit, Canalis KS 500A to 1000A, for ComPacT NSX400 with electrical handle, 400A, 3L+N+PE, IP55, RAL9001
SKU:

KSB400DB412

Tap off unit, Canalis KS 500A to 1000A, for ComPacT NSX400 with electrical handle, 400A, 3L+N+PE, IP55, RAL9001

$3,331.68 INC GST
Available for Shipping : 06-Apr-2026
Tap off unit, Canalis KS 500A to 1000A, for ComPacT NSX400 with electrical handle, 400A, 3L+N+PE, IP55, RAL9001
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Apr-2026
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Colour white (RAL 9001)
Tap-off unit polarity 3L+N+PE
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 400-400 A at 35 °C
Range compatibility Canalis KS busbar trunking
Offer type advanced
Protection type circuit breaker: Compact NSX400
Provided equipment circuit-breaker to be ordered separately
Range of product Canalis
Mounting mode plate with fixed polarity
Complementary
Device application medium power distribution
[Ui] rated insulation voltage 500 V depending on protective device, 400 V depending on protective device
Depth 352 mm
Width 700 mm
[Ue] rated operational voltage 500 V depending on protective device, 400 V depending on protective device
Body material metal
Door opening side right
Function available circuit breaker
Control type motor mechanism
Electrical connection crimp lug - ISO40 70-70 mm² rigid, crimp lug - ISO40 50-50 mm² flexible
Tap-off unit disconnection mode By opening the door
Net weight 16 kg
Standards IEC 61439-1, IEC 61439-6
[Uimp] rated impulse withstand voltage 6.8 kV
Door opening size 973.5 mm
Network frequency 50/60 Hz
Environment
Earthing system IT, TN-S, TT
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 36.300 cm
Package 1 Width 38.200 cm
Package 1 Length 58.200 cm
Package 1 Weight 16.279 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 45.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 50.000 kg
