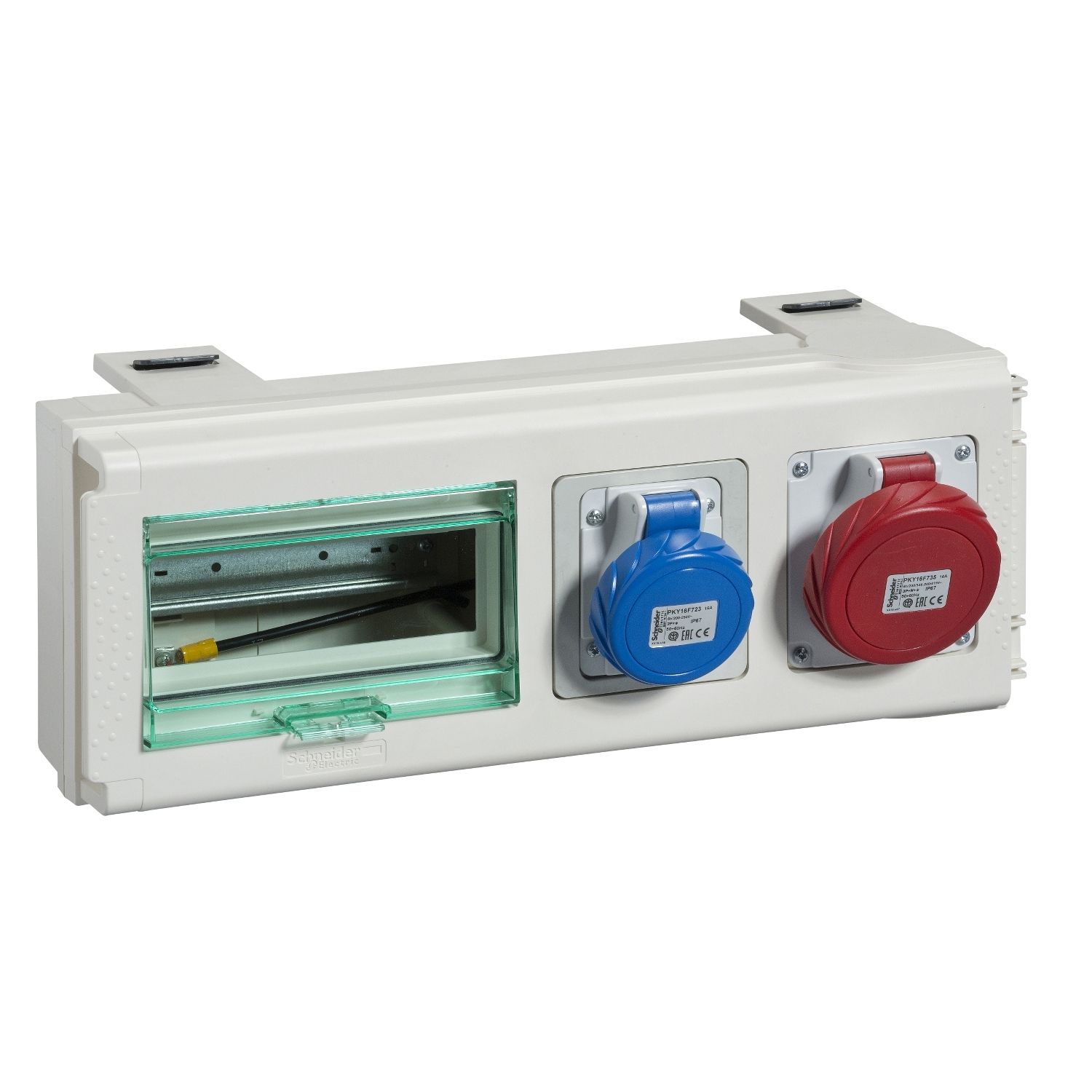

Picture of Tap off unit, Canalis KS 100A to 1000A, 8 modules of 18mm, 32A, DIN rail, 3L+N+PE, 1 Schuko + 1 industrial power sockets
SKU:

KSB32CP15D

Tap off unit, Canalis KS 100A to 1000A, 8 modules of 18mm, 32A, DIN rail, 3L+N+PE, 1 Schuko + 1 industrial power sockets

$311.52 INC GST
Available for Shipping : 12-Apr-2026
Tap off unit, Canalis KS 100A to 1000A, 8 modules of 18mm, 32A, DIN rail, 3L+N+PE, 1 Schuko + 1 industrial power sockets
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Apr-2026
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product compatibility modular device
Colour white (RAL 9001)
Provided equipment blanking plate
Tap-off unit polarity 3L+N+PE
[Ie] rated operational current 32 A at 35 °C
Range Canalis
Product name KS
Product or component type tap-off unit
Tap-off unit socket description Domestic 10/16A 2P+T 230V
Range of product Canalis
Tap-off unit 2nd socket description Industrial 16A 3P+N+T 415V
Complementary
Device application low power distribution, power socket distribution
[Ui] rated insulation voltage 690 V depending on protective device, 500 V depending on protective device, 400 V depending on protective device
Depth 108 mm
Width 437.5 mm
Protection type without protection
[Ue] rated operational voltage 230...690 V depending on protective device
Body material plastic
Tap-off unit disconnection mode By drawing out
Net weight 3 kg
18 mm pitches 8
Tap-off unit connector type with phase selection
[Uimp] rated impulse withstand voltage 6.8 kV
Standards IEC 61439-6, IEC 60439-2
Height 165 mm
Network frequency 50/60 Hz
Environment
Earthing system TN-S - tap-off unit, TT - tap-off unit, TN-C - busbar trunking, TN-S - busbar trunking, TT - busbar trunking
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.300 cm
Package 1 Width 17.600 cm
Package 1 Length 43.500 cm
Package 1 Weight 1.529 kg
Unit Type of Package 2 2
Number of Units in Package 2 29
Package 2 Height 195.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 71.370 kg
