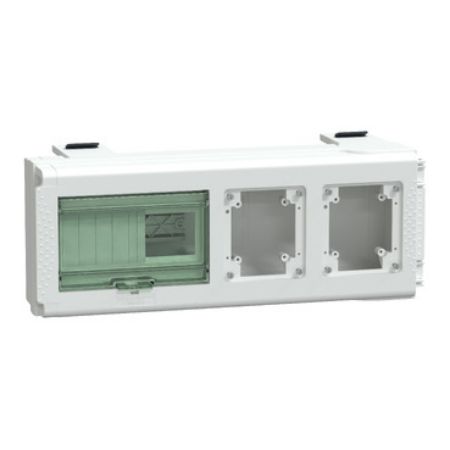

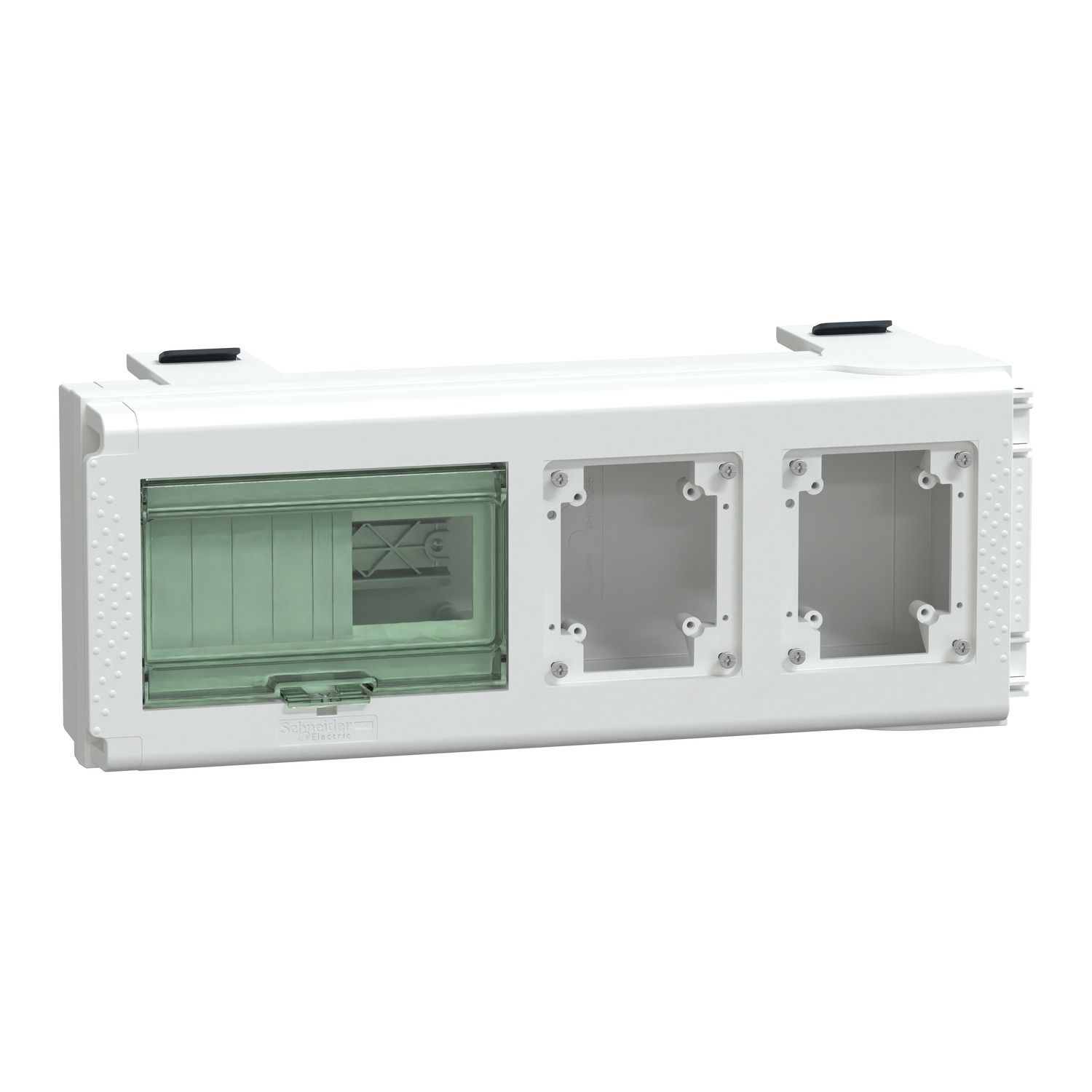

Picture of Tap off unit, Canalis KS 100A to 1000A, 8 modules of 18mm, 32A, DIN rail, 3L+N+PE, 2 Pratika power sockets, IP55,RAL9001
SKU:

KSB32CP

Tap off unit, Canalis KS 100A to 1000A, 8 modules of 18mm, 32A, DIN rail, 3L+N+PE, 2 Pratika power sockets, IP55,RAL9001

$222.29 INC GST
Available for Shipping : 06-Apr-2026
Tap off unit, Canalis KS 100A to 1000A, 8 modules of 18mm, 32A, DIN rail, 3L+N+PE, 2 Pratika power sockets, IP55,RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Apr-2026
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
Canalis tap-off unit for KS. It's applied to power socket distribution and low power distribution with white RAL 9001 surface treatment. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 32A. It provided 3L+N+PE tap-off unit polarity with tap-off unit socket description and tap-off unit 2nd socket description are both free choice. It provided blanking plate and tap-off unit connector with phase selection, compatibility with modular device. Tap-off unit disconnection by drawing out. It's applied to TT busbar trunking, TN-S busbar trunking, TN-C busbar trunking, TT tap-off unit, TN-S tap-off unit earthing system. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Product compatibility modular device
Colour white (RAL 9001)
Provided equipment blanking plate
Tap-off unit polarity 3L+N+PE
[Ie] rated operational current 32 A at 35 °C
Range Canalis
Product name KS
Product or component type tap-off unit
Tap-off unit socket description free choice
Range of product Canalis
Tap-off unit 2nd socket description free choice
Complementary
Device application power socket distribution, low power distribution
[Ui] rated insulation voltage 690 V depending on protective device, 500 V depending on protective device, 400 V depending on protective device
Depth 108 mm
Width 437.5 mm
Protection type without protection
[Ue] rated operational voltage 230...690 V depending on protective device
Body material plastic
Tap-off unit disconnection mode By drawing out
Net weight 2.7 kg
18 mm pitches 8
Tap-off unit connector type with phase selection
[Uimp] rated impulse withstand voltage 6.8 kV
Standards IEC 61439-6, IEC 60439-2
Height 165 mm
Network frequency 50/60 Hz
Environment
Earthing system TN-S - tap-off unit, TT - tap-off unit, TN-C - busbar trunking, TN-S - busbar trunking, TT - busbar trunking
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.900 cm
Package 1 Width 17.600 cm
Package 1 Length 43.500 cm
Package 1 Weight 1.530 kg
Unit Type of Package 2 2
Number of Units in Package 2 39
Package 2 Height 80.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 77.000 kg
