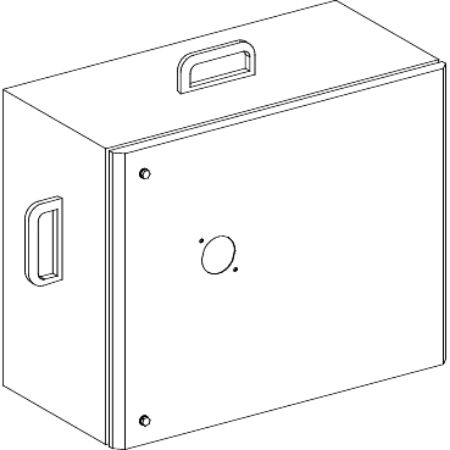

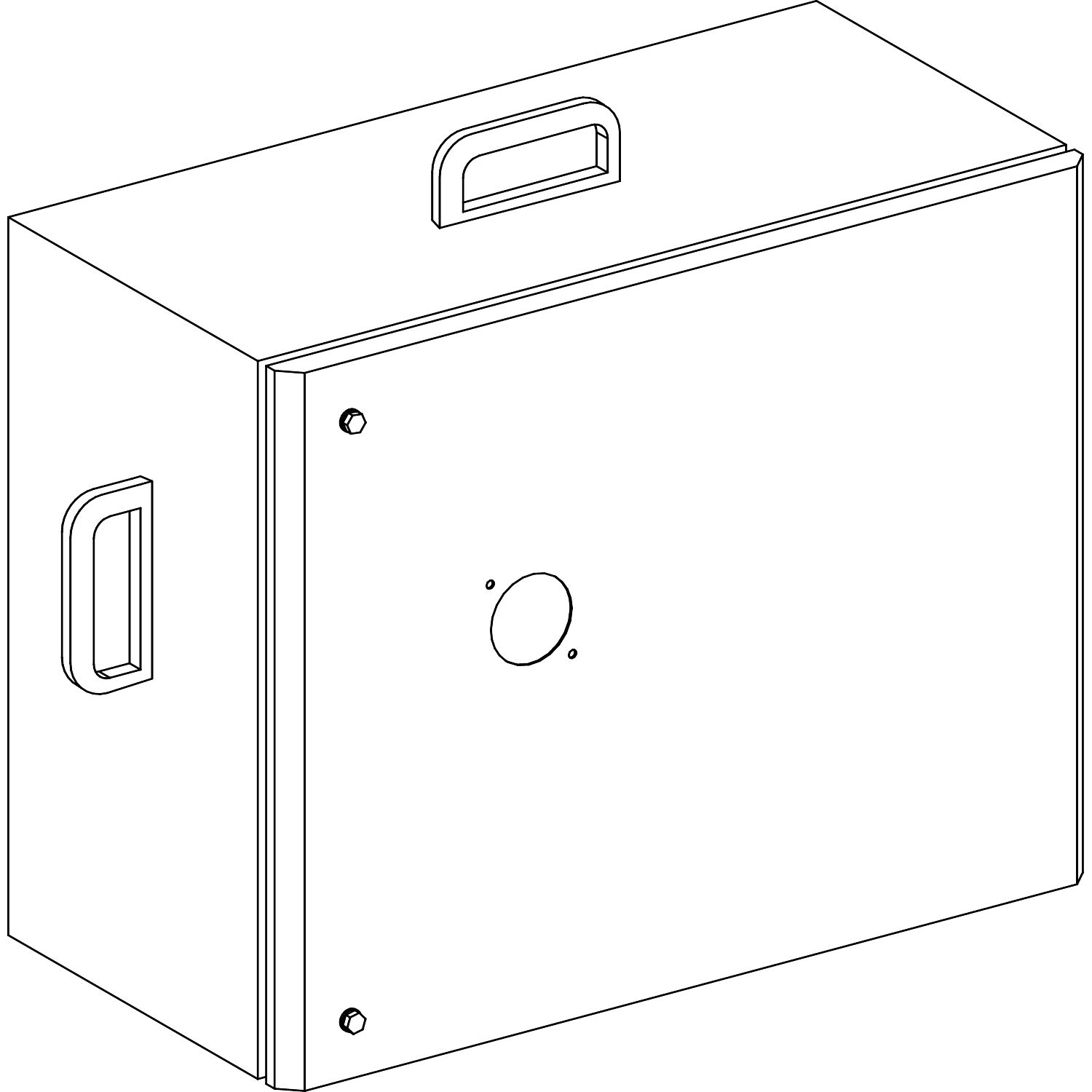

Picture of Tap off unit, Canalis KS 100A to 1000A, for ComPacT NSX250, 1 current transformer module, 250A, 3L+N+PE, IP55, RAL9001
SKU:

KSB250DC4TRE

Tap off unit, Canalis KS 100A to 1000A, for ComPacT NSX250, 1 current transformer module, 250A, 3L+N+PE, IP55, RAL9001

$1,956.24 INC GST
Available for Shipping : 06-Apr-2026
Tap off unit, Canalis KS 100A to 1000A, for ComPacT NSX250, 1 current transformer module, 250A, 3L+N+PE, IP55, RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Apr-2026
Environmental Disclosure
Instruction sheet
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Colour white (RAL 9001)
Tap-off unit polarity 3L+N+PE
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 250-250 A at 35 °C
Range compatibility Canalis KT busbar trunking, Canalis KS busbar trunking
Offer type advanced
Protection type circuit breaker: Compact NSX250
Provided equipment current transformer to be ordered separately,  circuit-breaker to be ordered separately
Range of product Canalis
Mounting mode plate with fixed polarity
Complementary
Device application metering, medium power distribution
[Ui] rated insulation voltage 500 V depending on protective device, 400 V depending on protective device
Depth 300 mm
Width 532 mm
[Ue] rated operational voltage 500 V depending on protective device, 400 V depending on protective device
Body material metal
Door opening side right
Function available circuit breaker
Control type extended rotary handle
Electrical connection crimp lug - ISO40 150-150 mm² rigid, crimp lug - ISO40 150-150 mm² flexible
Tap-off unit disconnection mode By opening the door
Net weight 21 kg
Number of openings 1 opening for FL21 gland plate
Standards IEC 61439-1, IEC 61439-6
[Uimp] rated impulse withstand voltage 6.8 kV
Door opening size 726.5 mm
Height 432 mm
Network frequency 50/60 Hz
Environment
Earthing system IT, TN-S, TT
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 33.0 cm
Package 1 Width 45.0 cm
Package 1 Length 64.5 cm
Package 1 Weight 14.18 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 82.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 90.0 kg
