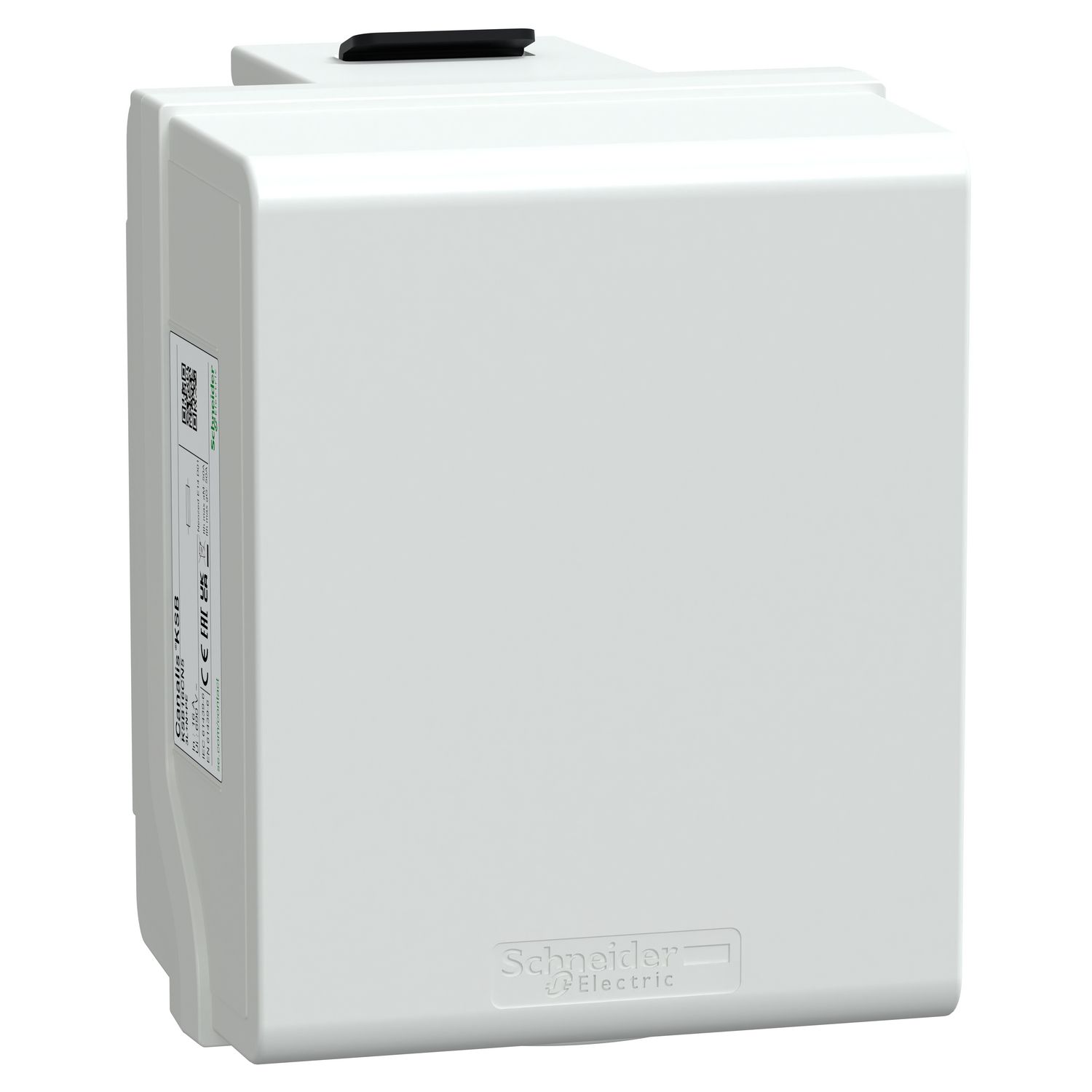

Picture of Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 16A, NZ fuses not supplied, 3L+N+PE, IP55, RAL9001
SKU:

KSB16CN5

Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 16A, NZ fuses not supplied, 3L+N+PE, IP55, RAL9001

$202.22 INC GST
Available for Shipping : 06-Apr-2026
Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 16A, NZ fuses not supplied, 3L+N+PE, IP55, RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Apr-2026
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Fuse type fuse isolator: Neozed fuse, size E14 conforming to DIN
Colour white (RAL 9001)
Tap-off unit polarity 3L+N+PE
Product compatibility Canalis KS busbar trunkingplug-in
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 16-16 A at 35 °C
Range compatibility Canalis KS busbar trunking
Provided equipment fuse to be ordered separately
Range of product Canalis
Mounting mode plug-in with fixed polarity
Complementary
Device application medium power distribution
[Ui] rated insulation voltage 690 V depending on protective device
Depth 103 mm
Width 135 mm
[Ue] rated operational voltage 230...690 V depending on protective device
Body material plastic
Door opening side front
Function available fuse isolator
Electrical connection tunnel terminal - ISO32 10-10 mm² rigid, tunnel terminal - ISO32 6-6 mm² flexible
Tap-off unit disconnection mode By drawing out
Net weight 0.6 kg
Standards IEC 61439-6, IEC 61439-1
[Uimp] rated impulse withstand voltage 6.8 kV
Height 165 mm
Network frequency 50/60 Hz
Environment
Earthing system IT, TN-S, TT
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.000 cm
Package 1 Width 17.500 cm
Package 1 Length 13.600 cm
Package 1 Weight 899.900 g
Unit Type of Package 2 2
Number of Units in Package 2 119
Package 2 Height 195.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 119.100 kg
