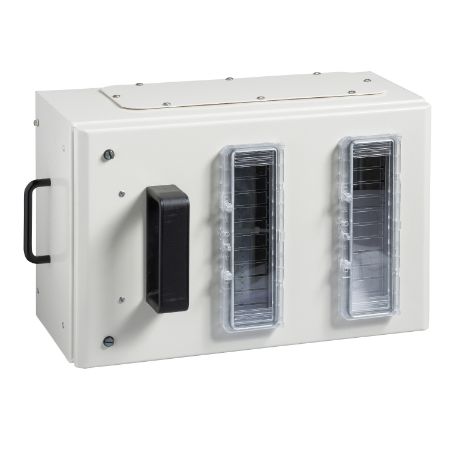

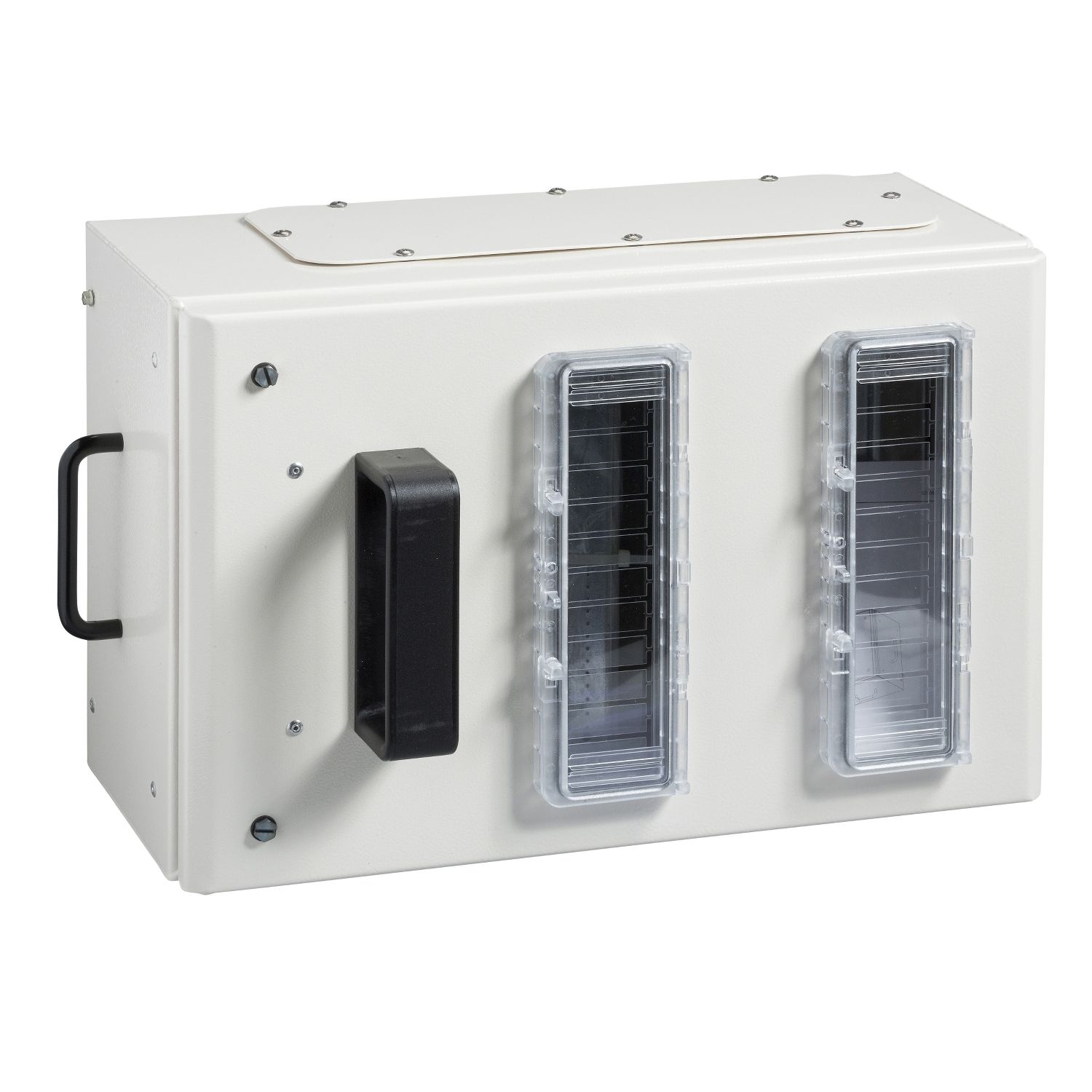

Picture of Tap off unit, Canalis KS 100A to 1000A, 2x12 modules of 18mm, 160A, DIN rail, 3L+PEN, IP55, RAL9001
SKU:

KSB160SM524

Tap off unit, Canalis KS 100A to 1000A, 2x12 modules of 18mm, 160A, DIN rail, 3L+PEN, IP55, RAL9001

$1,993.20 INC GST
Available for Shipping : 27-Jan-2026
Tap off unit, Canalis KS 100A to 1000A, 2x12 modules of 18mm, 160A, DIN rail, 3L+PEN, IP55, RAL9001
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 27-Jan-2026
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Colour white (RAL 9001)
Tap-off unit polarity 3L+PEN
Product compatibility Canalis KS busbar trunkingplug-in
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 160-160 A
Range compatibility Canalis KS busbar trunking
Protection type circuit breaker: miniature circuit breaker (MCB)
Range of product Canalis
Mounting mode plug-in with fixed polarity
Complementary
Device application medium power distribution
[Ui] rated insulation voltage 690 V depending on protective device, 500 V depending on protective device, 400 V depending on protective device
Depth 308 mm
Width 494 mm
[Ue] rated operational voltage 230...690 V depending on protective device
Body material metal
Door opening side down
Function available circuit breaker
Electrical connection lugs - ISO50 50-50 mm² rigid, lugs - ISO50 35-35 mm² flexible
Tap-off unit disconnection mode By drawing out
Net weight 10.69 kg
18 mm pitches 24
Standards IEC 61439-1, IEC 61439-6
[Uimp] rated impulse withstand voltage 6.8 kV
Provided equipment 4 DIN rail,  blanking plate,  circuit-breaker to be ordered separately
Door opening size 650 mm
Height 303 mm
Network frequency 50/60 Hz
Environment
Earthing system TN-C
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.100 cm
Package 1 Width 34.200 cm
Package 1 Length 45.000 cm
Package 1 Weight 9.000 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 90.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 100.000 kg
