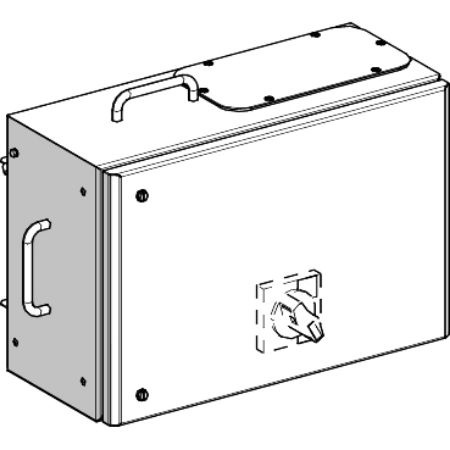

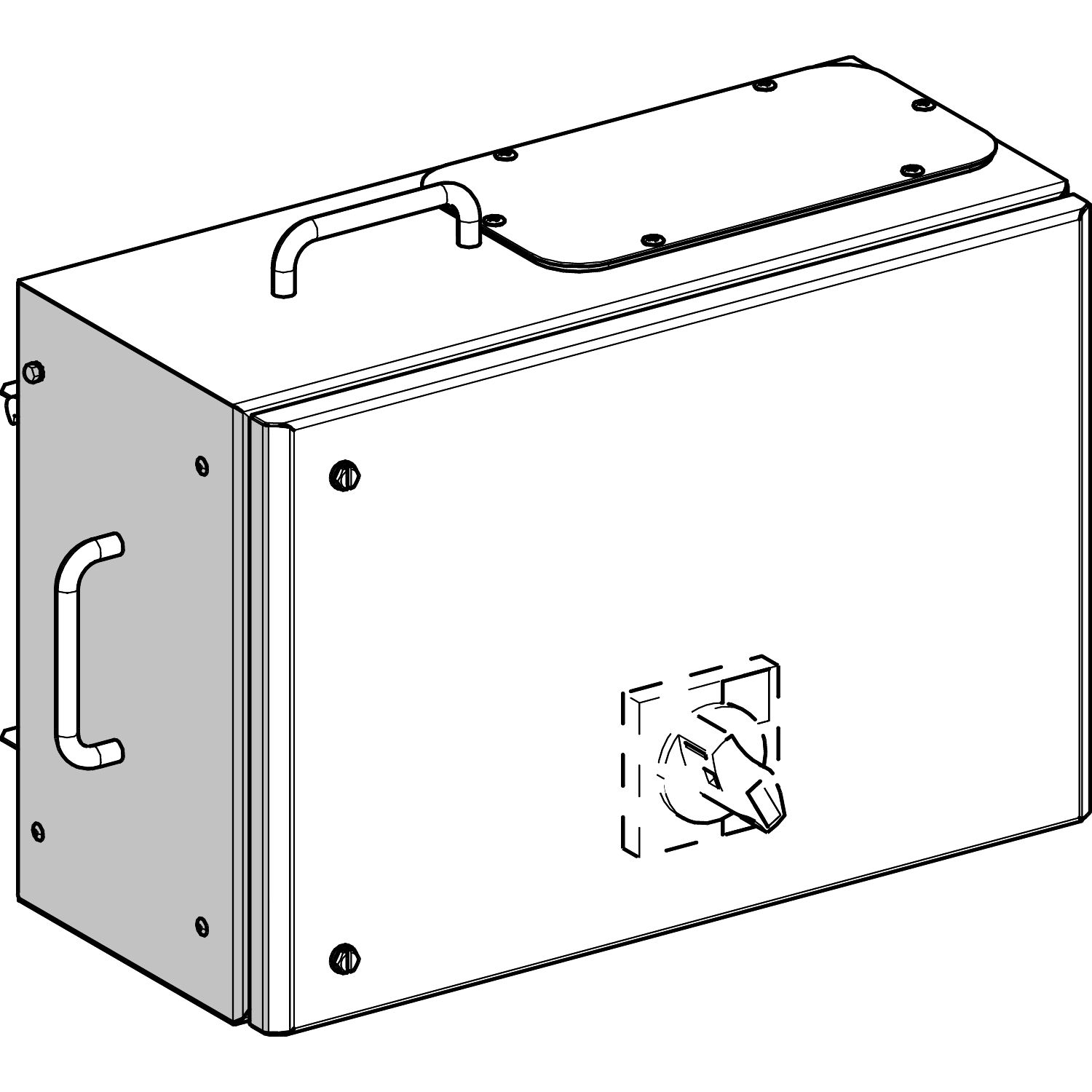

Picture of Tap off unit, Canalis KS 100A to 1000A, for ComPact NG125 with rotary handle, 160A, 13x18 modules, 3L+N+PE, IP55,RAL9001
SKU:

KSB160SM413

Tap off unit, Canalis KS 100A to 1000A, for ComPact NG125 with rotary handle, 160A, 13x18 modules, 3L+N+PE, IP55,RAL9001

$2,692.80 INC GST
Available for Shipping : 06-Apr-2026
Tap off unit, Canalis KS 100A to 1000A, for ComPact NG125 with rotary handle, 160A, 13x18 modules, 3L+N+PE, IP55,RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Apr-2026
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 125A and 160A. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L+N+PE. It provided protection for miniature circuit breaker (MCB) (Circuit breaker to be ordered separately). It provided tap-off unit disconnection by drawing out with right door/cover opening. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Colour white (RAL 9001)
Tap-off unit polarity 3L+N+PE
Product compatibility Canalis KT busbar trunking with KS type plug-in, Canalis KS busbar trunkingplug-in
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 125-125 A with a NG125, 160-160 A with a NG160
Range compatibility Canalis KT busbar trunking, Canalis KS busbar trunking
Protection type circuit breaker: NG160, circuit breaker: NG125
Range of product Canalis
Mounting mode plug-in with fixed polarity
Complementary
Device application medium power distribution
[Ui] rated insulation voltage 690 V depending on protective device, 500 V depending on protective device, 400 V depending on protective device
Depth 246 mm
Width 482 mm
[Ue] rated operational voltage 230...690 V depending on protective device
Body material metal
Door opening side right
Function available circuit breaker
Electrical connection tunnel terminal - ISO32 70-70 mm² rigid, tunnel terminal - ISO32 70-70 mm² flexible
Tap-off unit disconnection mode By drawing out
Net weight 8.5 kg
18 mm pitches 13
Standards IEC 61439-1, IEC 61439-6
[Uimp] rated impulse withstand voltage 6.8 kV
Provided equipment circuit-breaker to be ordered separately
Door opening size 625.5 mm
Height 342 mm
Network frequency 50/60 Hz
Environment
Earthing system IT, TN-S, TT
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.000 cm
Package 1 Width 34.000 cm
Package 1 Length 49.000 cm
Package 1 Weight 10.427 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 72.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 97.000 kg
