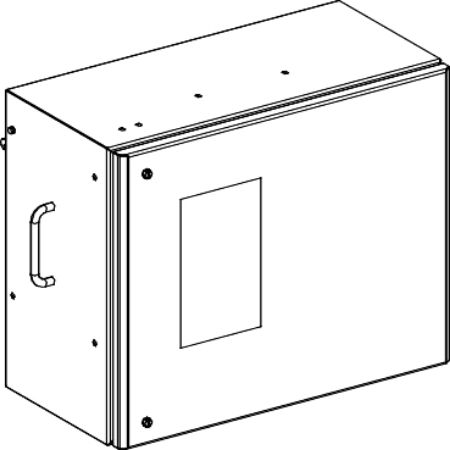

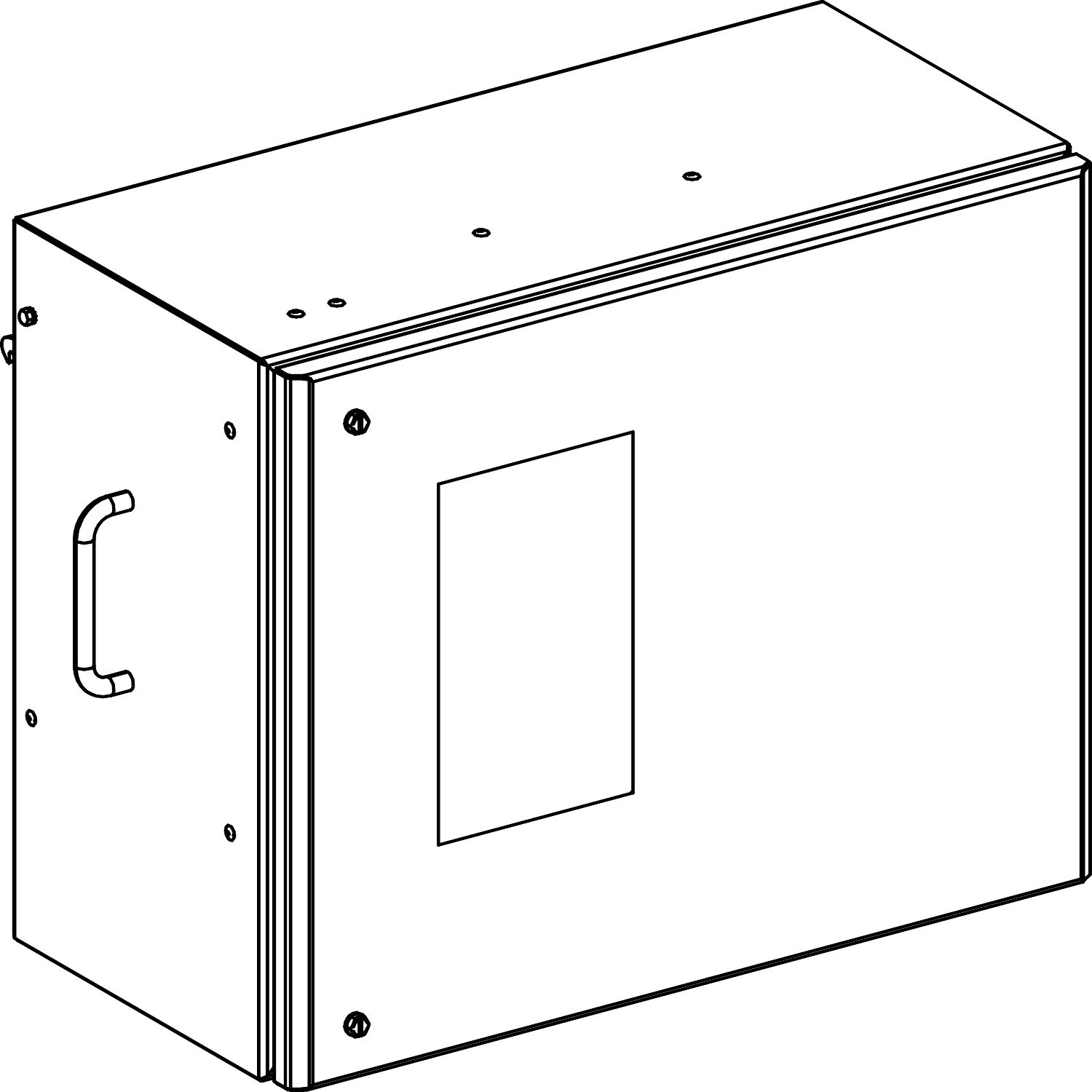

Picture of Tap off unit, Canalis KS 100A to 1000A, for ComPacT NSX100/160 with electrical handle, 160A, 3L+PEN, IP55, RAL9001
SKU:

KSB160DB512

Tap off unit, Canalis KS 100A to 1000A, for ComPacT NSX100/160 with electrical handle, 160A, 3L+PEN, IP55, RAL9001

$2,307.36 INC GST
Available for Shipping : 14-Apr-2026
Tap off unit, Canalis KS 100A to 1000A, for ComPacT NSX100/160 with electrical handle, 160A, 3L+PEN, IP55, RAL9001
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Apr-2026
Environmental Disclosure
Instruction sheet
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Colour white (RAL 9001)
Tap-off unit polarity 3L+PEN
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 160-160 A at 35 °C
Range compatibility Canalis KS busbar trunking
Offer type advanced
Protection type circuit breaker: Compact NSX160, circuit breaker: Compact NSX100
Provided equipment circuit-breaker to be ordered separately
Range of product Canalis
Mounting mode plate with fixed polarity
Complementary
Device application medium power distribution
[Ui] rated insulation voltage 500 V depending on protective device, 400 V depending on protective device
Depth 303 mm
Width 500 mm
[Ue] rated operational voltage 500 V depending on protective device, 400 V depending on protective device
Body material metal
Door opening side right
Function available circuit breaker
Control type motor mechanism
Electrical connection crimp lug - ISO32 70-70 mm² rigid, crimp lug - ISO32 70-70 mm² flexible
Tap-off unit disconnection mode By opening the door
Net weight 11 kg
Standards IEC 61439-1, IEC 61439-6
[Uimp] rated impulse withstand voltage 6.8 kV
Door opening size 727.5 mm
Network frequency 50/60 Hz
Environment
Earthing system TN-C
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.3 cm
Package 1 Width 43.2 cm
Package 1 Length 53.4 cm
Package 1 Weight 13.97 kg
