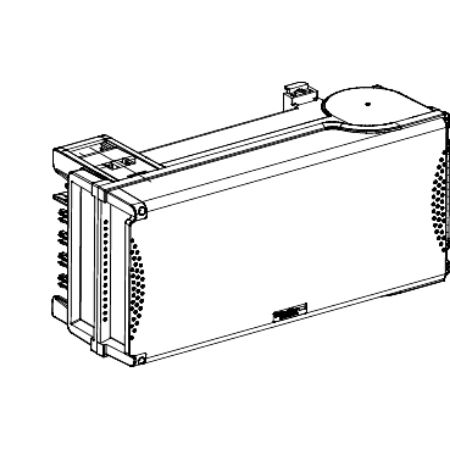

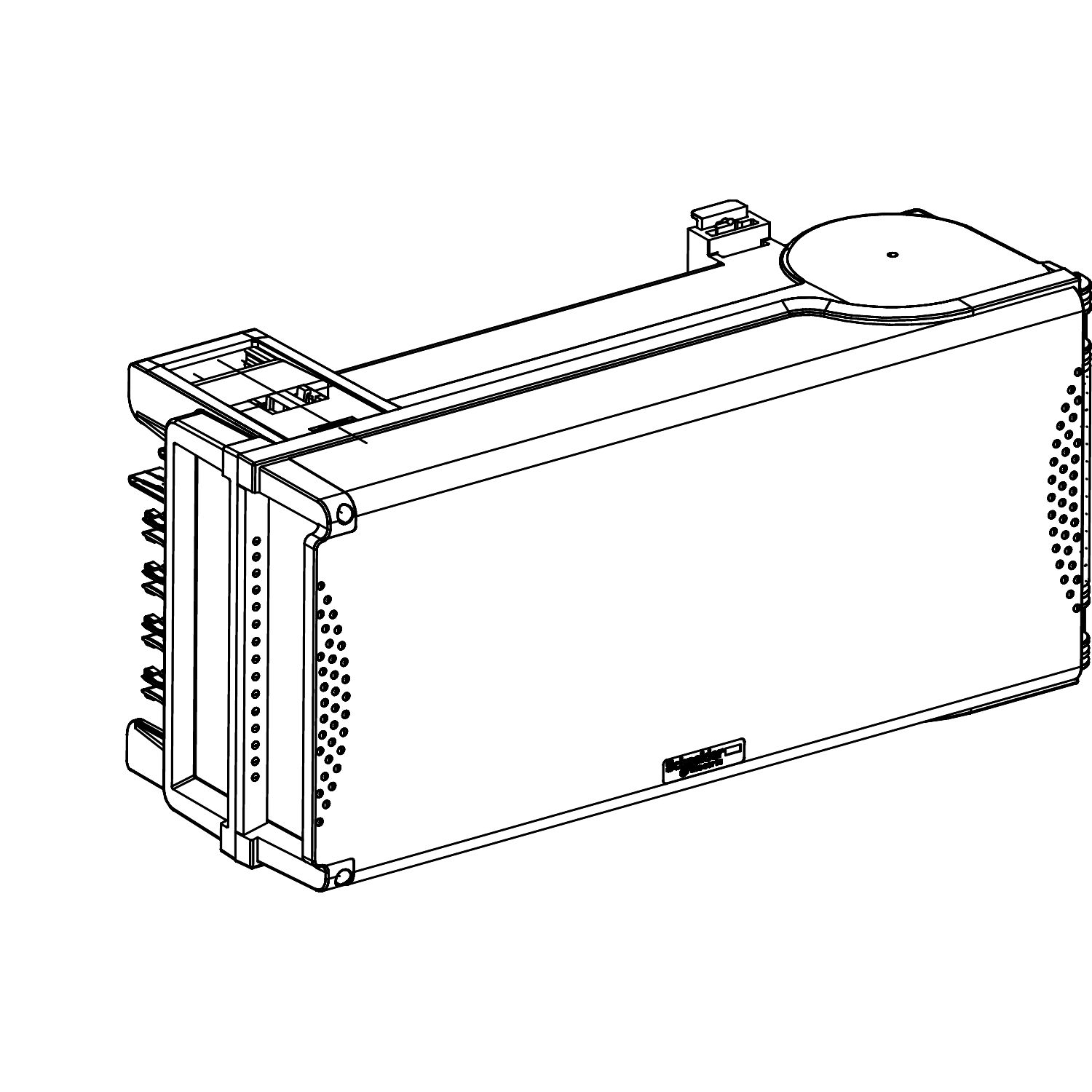

Picture of Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 100A, NF 22x58mm fuses not supplied, 3L+PEN, IP55, RAL9001
SKU:

KSB100SF5

Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 100A, NF 22x58mm fuses not supplied, 3L+PEN, IP55, RAL9001

$744.48 INC GST
Available for Shipping : 06-Apr-2026
Tap off unit, Canalis KS 100A to 1000A, with fuse holder, 100A, NF 22x58mm fuses not supplied, 3L+PEN, IP55, RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Apr-2026
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TN-C earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 100A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L + PEN. It provided protection for size NF fuses (Fuse to be ordered separately). It provided tap-off unit disconnection by right opening the door. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Fuse type fuse isolator: for gG cylindrical fuse, size 22 x 58 mm - 100-100 A conforming to NF,  fuse isolator: for aM cylindrical fuse, size 22 x 58 mm - 100-100 A conforming to NF
Colour white (RAL 9001)
Tap-off unit polarity 3L+PEN
Product compatibility Canalis KT busbar trunking with KS type plug-in, Canalis KS busbar trunkingplug-in
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 100-100 A at 35 °C
Range compatibility Canalis KS busbar trunking, Canalis KT busbar trunking
Provided equipment fuse to be ordered separately
Range of product Canalis
Mounting mode plug-in with fixed polarity
Complementary
Device application medium power distribution
[Ui] rated insulation voltage 690 V depending on protective device
Depth 128 mm
Width 444 mm
[Ue] rated operational voltage 230...690 V depending on protective device
Body material plastic
Door opening side right
Function available fuse isolator
Electrical connection copper cable lug - ISO63 50-50 mm² flexible, copper cable lug - ISO63 50-50 mm² rigid
Tap-off unit disconnection mode By opening the door
Net weight 5 kg
Standards IEC 61439-6, IEC 61439-1
[Uimp] rated impulse withstand voltage 6.8 kV
Door opening size 545.5 mm
Height 220 mm
Network frequency 50/60 Hz
Environment
Earthing system TN-C
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.400 cm
Package 1 Width 22.000 cm
Package 1 Length 44.400 cm
Package 1 Weight 3.649 kg
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 80.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 114.000 kg
