SKU:

KSA630DLE43F

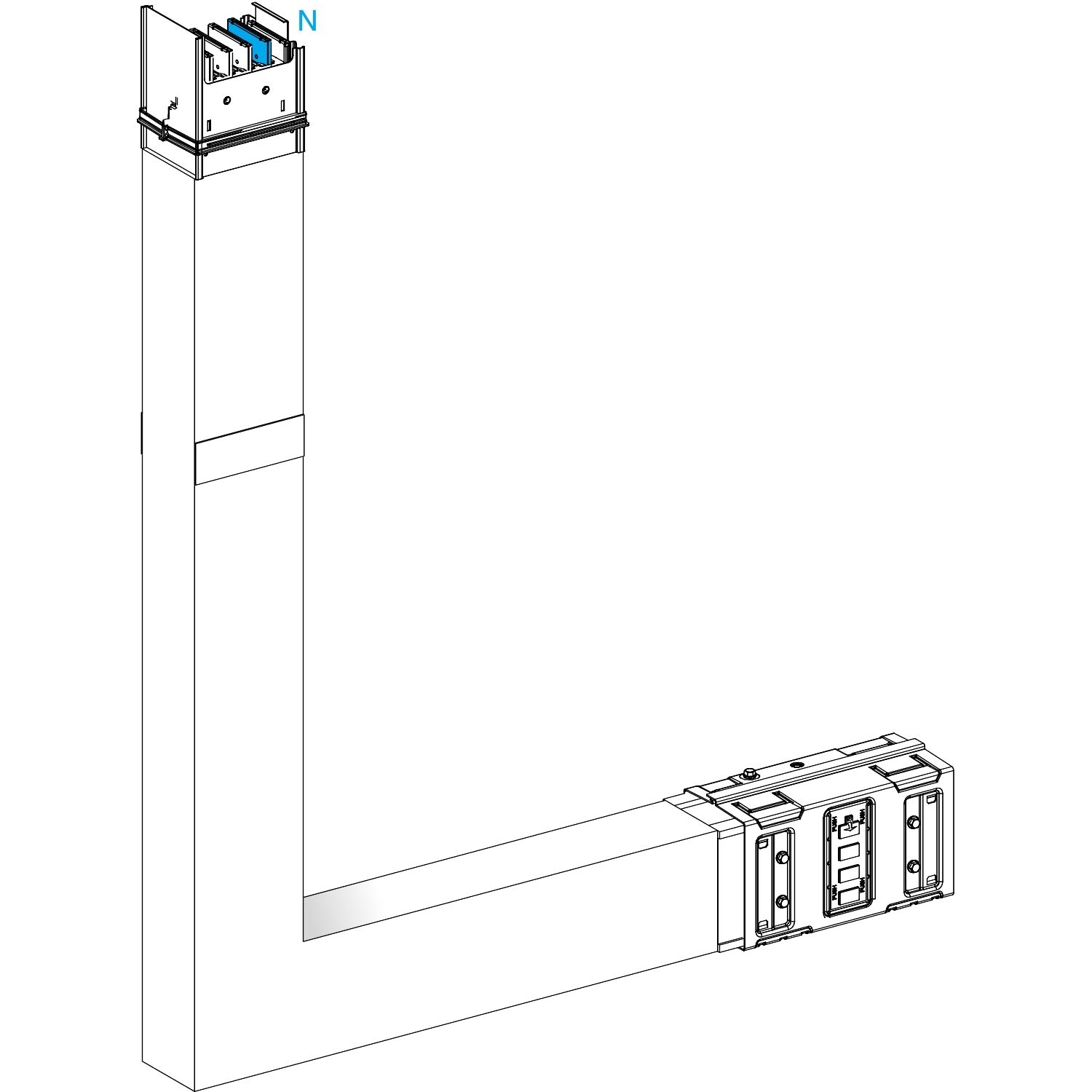

Elbow, Canalis KSA630, aluminium, 500/630A, sides A/B made to measure, 1 fire barrier, to go upward, 3L+N+PE, RAL9001

$4,775.76 INC GST

Qty:

Available for Shipping : 09-Apr-2026

Elbow, Canalis KSA630, aluminium, 500/630A, sides A/B made to measure, 1 fire barrier, to go upward, 3L+N+PE, RAL9001

Manufacturer: Schneider Electric

Delivery date: 09-Apr-2026

Environmental Disclosure

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
[Ue] rated operational voltage	230...690 V
Device short name	KSA
Device application	change direction
Colour	white (RAL 9001)
[Ie] rated operational current	630 A at 35 °C
Busbar description	fire barrier on made to measure (only one side)
Dimension type	made to measure
Busbar trunking polarity	3L + N + PE
IP degree of protection	IP55 conforming to IEC 60529
Range	Canalis
Material	aluminium
Direction change type	direction 1 : edgewise to upward - neutral to left
Product name	KS
Product or component type	elbow
Product compatibility	Canalis KSA busbar trunking 500-1000 A
Offer type	advanced
Operating angle	90-90 °
Range of product	Canalis
Network frequency	50/60 Hz
Complementary
Width	113 mm
Mounting position	any position
Electrical connection	lubricated sliding contact
Mounting mode	by screws
Mounting location	on trunking
Length	700-1200 mm for side with fire barrier, 290-800 mm for side B, 290-800 mm for side A
Standards	IEC 61439-6, IEC 61439-1
Height	146-146 mm
Environment
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	12.0 cm
Package 1 Width	98.4 cm
Package 1 Length	86.9 cm
Package 1 Weight	11.0 kg
