SKU:

KSA630AE4

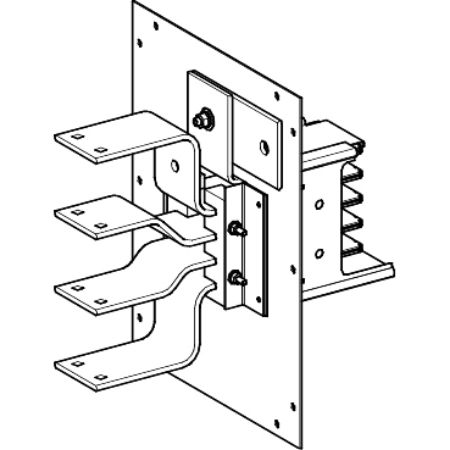

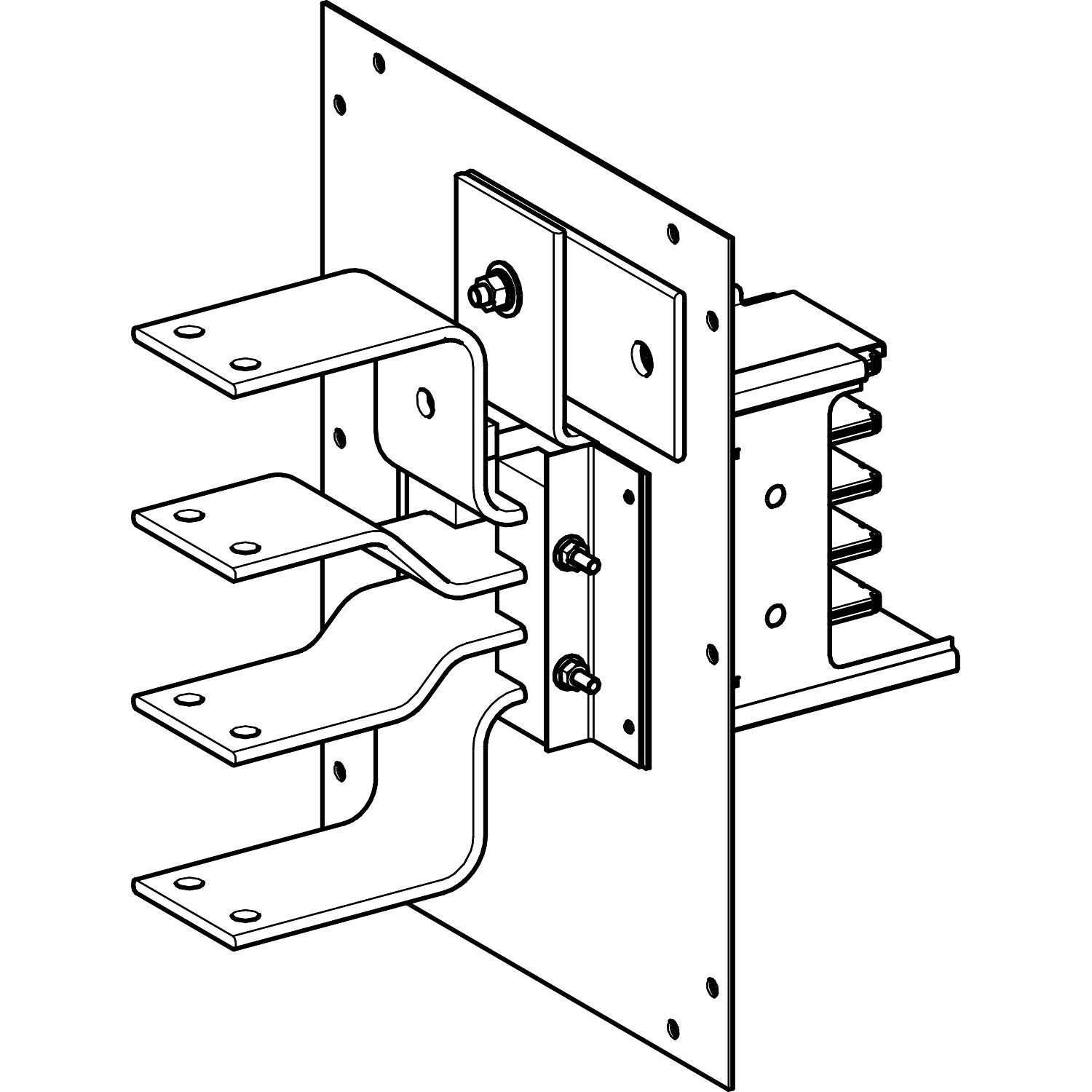

Flange feed unit, Canalis KSA630, aluminium, 500/630A, right or left mounting, without line protection, 3L+N+PE, RAL9001

$1,496.88 INC GST

Qty:

Available for Shipping : 09-Apr-2026

Flange feed unit, Canalis KSA630, aluminium, 500/630A, right or left mounting, without line protection, 3L+N+PE, RAL9001

Manufacturer: Schneider Electric

Delivery date: 09-Apr-2026

Environmental Disclosure

Declaration of conformity

Catalog

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
[Ue] rated operational voltage	230...690 V
Device short name	KSA
Colour	white (RAL 9001)
Protection type	without protection
[Ie] rated operational current	630 A
Busbar trunking polarity	3L + N + PE
Control type	without
Range	Canalis
Material	aluminium
Number of circuits	1
Product name	KS
Product or component type	flange feed unit
Product compatibility	Canalis KSA busbar trunking 500-1000 A
Offer type	rising main, advanced
Range of product	Canalis
Complementary
Depth	290 mm
Width	338 mm
Provided equipment	end cover
Body material	metal
Mounting mode	by screws
Mounting location	right, left
Net weight	10.6 kg
Mounting support	busbar
Connections - terminals	bar
Standards	IEC 61439-6, IEC 61439-1
Height	370 mm
Environment
IP degree of protection	IP55 conforming to IEC 60529
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	22.000 cm
Package 1 Width	39.300 cm
Package 1 Length	50.500 cm
Package 1 Weight	13.210 kg
Unit Type of Package 2	2
Number of Units in Package 2	12
Package 2 Height	90.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	170.520 kg
