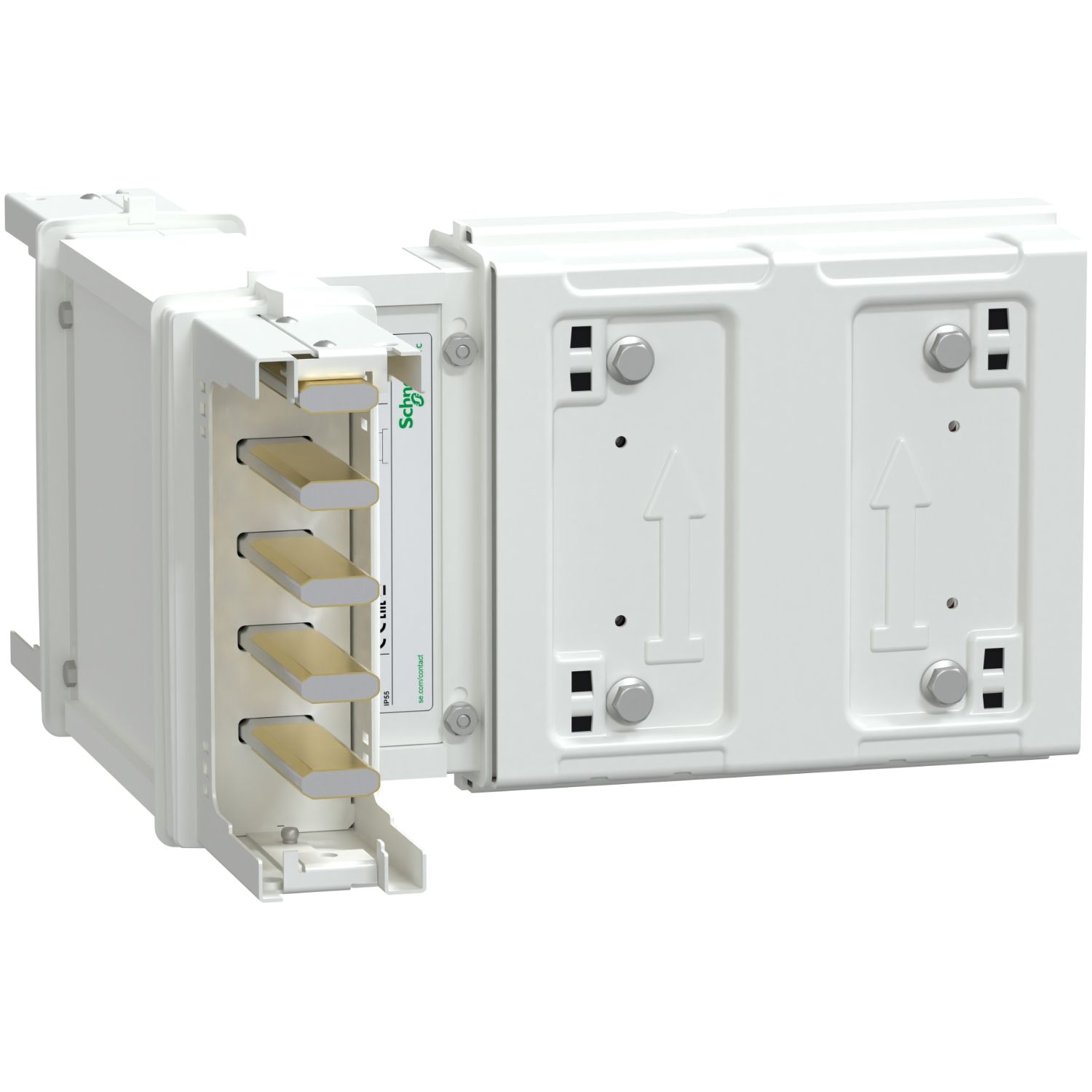

Picture of Tee, Canalis KSA400, aluminium, 400A, fixed dimensions (A/B/C 165mm), 3L+N+PE, white RAL9001
SKU:

KSA400DTC40

Tee, Canalis KSA400, aluminium, 400A, fixed dimensions (A/B/C 165mm), 3L+N+PE, white RAL9001

$3,112.56 INC GST
Available for Shipping : 15-Dec-2025
Tee, Canalis KSA400, aluminium, 400A, fixed dimensions (A/B/C 165mm), 3L+N+PE, white RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Declaration of conformity
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...690 V
Device short name KSA
Device application change direction
Colour white (RAL 9001)
[Ie] rated operational current 400 A at 35 °C
Busbar description standard
Dimension type made to measure
Busbar trunking polarity 3L + N + PE
IP degree of protection IP55 conforming to IEC 60529
Range Canalis
Material aluminium
Direction change type edgewise to perpendicular - neutral to up
Product name KS
Product or component type tee
Product compatibility Canalis KSA busbar trunking 400-400 A
Offer type advanced
Operating angle 90-90 °
Range of product Canalis
Network frequency 50/60 Hz
Complementary
Width 54 mm
Mounting position any position
Electrical connection lubricated sliding contact
Mounting mode by screws
Mounting location on trunking
Net weight 4.7 kg
Length 165-165 mm for side C, 165-165 mm for side B, 165-165 mm for side A
Standards IEC 61439-6, IEC 61439-1
Height 146-146 mm
Environment
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 22.800 cm
Package 1 Width 25.000 cm
Package 1 Length 44.700 cm
Package 1 Weight 5.542 kg
