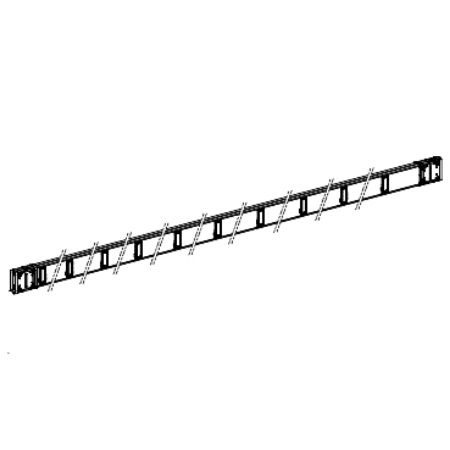

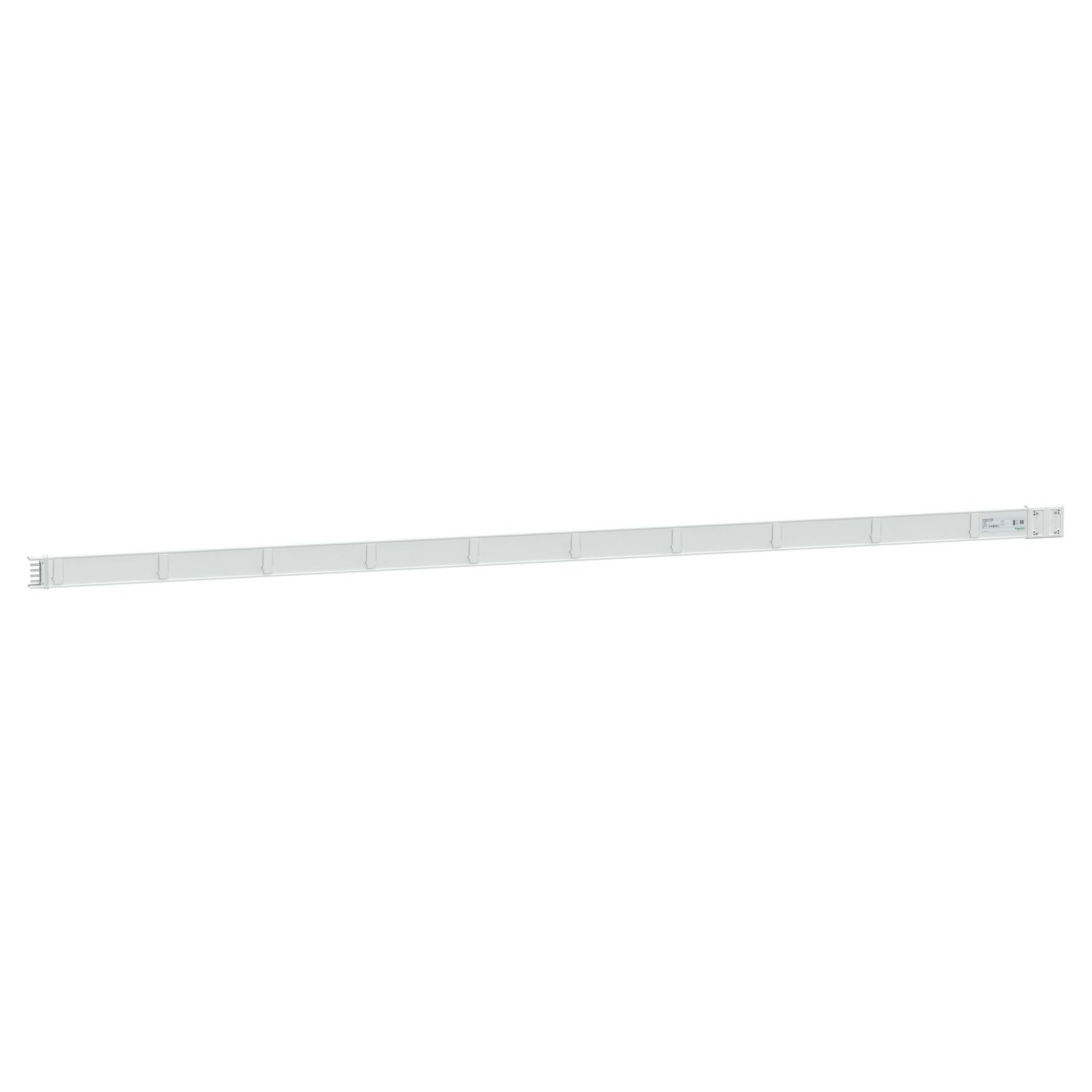

Picture of Horizontal distribution length, Canalis KSA250, aluminium, 250A, fixed length 5m, 20 outlets, 3L+N+PE, white RAL9001
SKU:

KSA250ED45020

Horizontal distribution length, Canalis KSA250, aluminium, 250A, fixed length 5m, 20 outlets, 3L+N+PE, white RAL9001

$2,251.92 INC GST
Available for Shipping : 06-Apr-2026
Horizontal distribution length, Canalis KSA250, aluminium, 250A, fixed length 5m, 20 outlets, 3L+N+PE, white RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Apr-2026
Environmental Disclosure
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
It is part of the Canalis system. It consists of a 5m 250A Distribution element equipped with 20 outlets. All run components are delivered with a jointing unit.

Products specifications

Attribute name Attribute value
Main
Length 5-5 m
Device short name KSA
Colour white (RAL 9001)
Number of tap-off outlets 20
Busbar description horizontal distribution length
Mounting mode by screws
[Ie] rated operational current 250 A at 35 °C
Dimension type fix
Busbar trunking polarity 3L + N + PE
IP degree of protection IP55 conforming to IEC 60529
Range Canalis
Material aluminium
Product or component type busbar trunking
Product compatibility Canalis KSA busbar trunking 100-250 A
Offer type classic
Complementary
[Ipk] rated peak withstand current 28 kA
Number of poles 4
[Ue] rated operational voltage 230...690 V
Width 54 mm
Mounting position horizontal
Neutral position up
Electrical connection lubricated sliding contact
Thermal stress limit 100000 kA².s
Maximum voltage drop <0.034 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.035 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.036 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.034 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight 25.2 kg
Radiated magnetic field 0.69 µT
Tap-off unit interval 500 mm
[Ui] rated insulation voltage 690 V
Linear resistance Xb 0.32 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - L 50/60 Hz, Rb1 0.91 mΩ/m 35 °C at Inc with impedance method L - PE 50/60 Hz, Rb1 0.82 mΩ/m 35 °C at Inc with impedance method L-N 50/60 Hz, Rb1 0.78 mΩ/m 35 °C at Inc with impedance method L - L 50/60 Hz, Rb0 0.78 mΩ/m 20 °C at Inc with impedance method L - PE 50/60 Hz, Rb0 0.74 mΩ/m 20 °C at Inc with impedance method L-N 50/60 Hz, Rb0 0.65 mΩ/m 20 °C at Inc with impedance method L - L 50/60 Hz, Z0 1.51 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, X0 0.7 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, R0 1.34 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, Z0 1.54 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, X0 0.86 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, R0 1.28 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz,  0.35 mΩ/m 20 °C PE 50/60 Hz, Z1 0.42 mΩ/m 35 °C at Inc L 50/60 Hz, X1 0.16 mΩ/m 35 °C at Inc L 50/60 Hz, R1 0.39 mΩ/m 35 °C at Inc L 50/60 Hz, R20 0.28 mΩ/m 20 °C L 50/60 Hz, Xb 0.42 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - PE 50/60 Hz, Xb 0.45 mΩ/m 35 °C at Inc and 50 Hz with impedance method L-N 50/60 Hz
Standards IEC 61439-6, IEC 61439-1
THDI 33-100 % 160 A, 15-33 % 200 A, 0-15 % 250 A
[Uimp] rated impulse withstand voltage 8 kV
Height 146-146 mm
Network frequency 50/60 Hz
[Icw] rated short-time withstand current 10 kA
Environment
Ambient air temperature for operation 55-55 °C (with derating factor), 35-35 °C (without derating)
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.000 cm
Package 1 Width 7.300 cm
Package 1 Length 511.300 cm
Package 1 Weight 24.000 kg
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 48.000 cm
Package 2 Width 64.000 cm
Package 2 Length 520.000 cm
Package 2 Weight 502.000 kg
