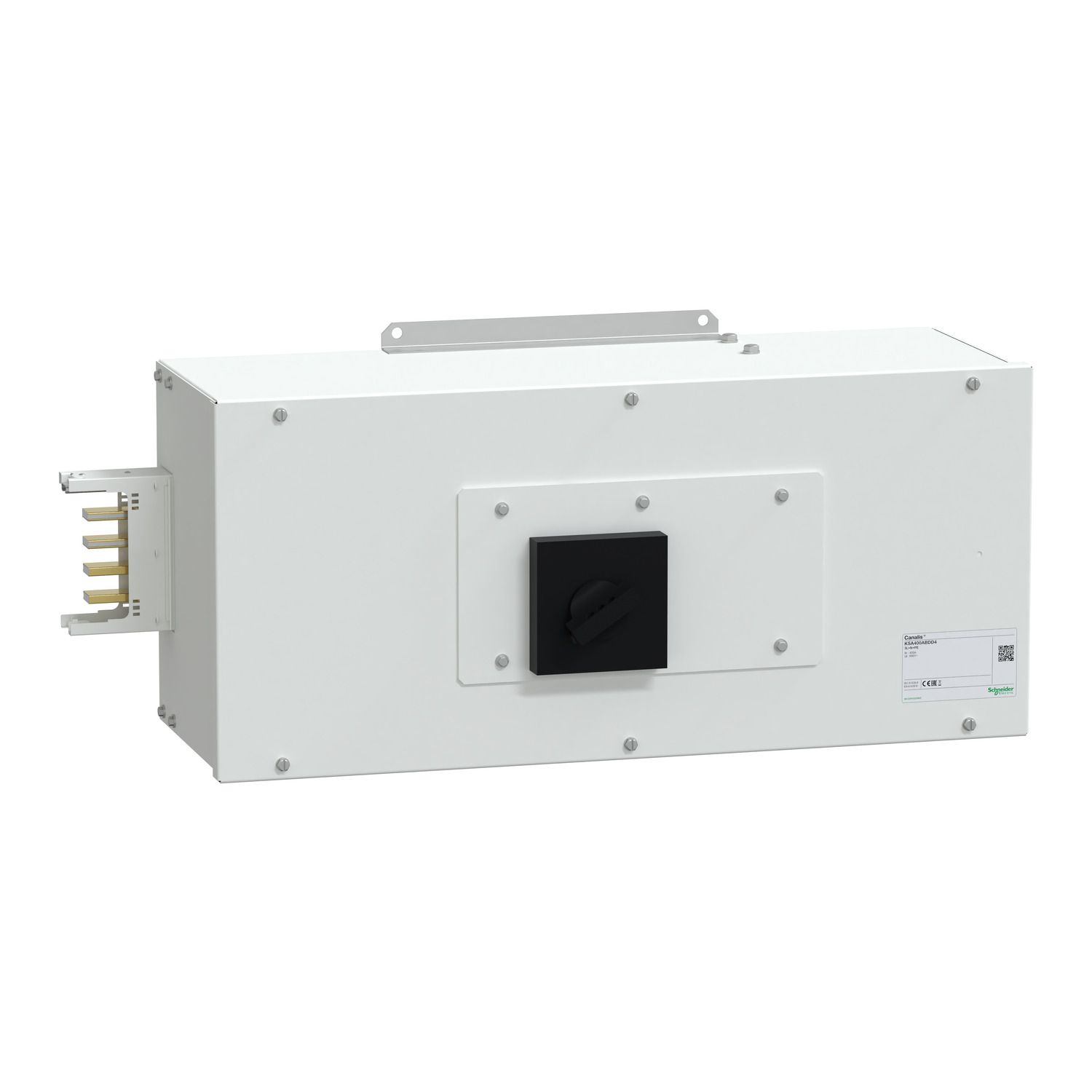

Picture of End feed unit, Canalis KSA250, aluminium, 100/160/250A, right mounting, for line protection, 3L+N+PE, white RAL9001
SKU:

KSA250ABDD4

End feed unit, Canalis KSA250, aluminium, 100/160/250A, right mounting, for line protection, 3L+N+PE, white RAL9001

$4,432.56 INC GST
Available for Shipping : 14-Apr-2026
End feed unit, Canalis KSA250, aluminium, 100/160/250A, right mounting, for line protection, 3L+N+PE, white RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Apr-2026
Declaration of conformity
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...690 V
Device short name KSA
Colour white (RAL 9001)
Protection type circuit breaker protection
[Ie] rated operational current 250 A
Busbar trunking polarity 3L + N + PE
Control type rotary handle
Range Canalis
Material aluminium
Number of circuits 1
Product name KS
Product or component type feed unit
Product compatibility Canalis KSA busbar trunking 100-250 A
Offer type rising main, advanced
Range of product Canalis
Complementary
Depth 276 mm
Width 742 mm
Body material metal
Mounting location right
Net weight 17.1 kg
Mounting support busbar
Connections - terminals bars, cable with lug
Standards IEC 61439-6, IEC 61439-1
Height 309 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 21.800 cm
Package 1 Width 35.300 cm
Package 1 Length 74.700 cm
Package 1 Weight 20.210 kg
