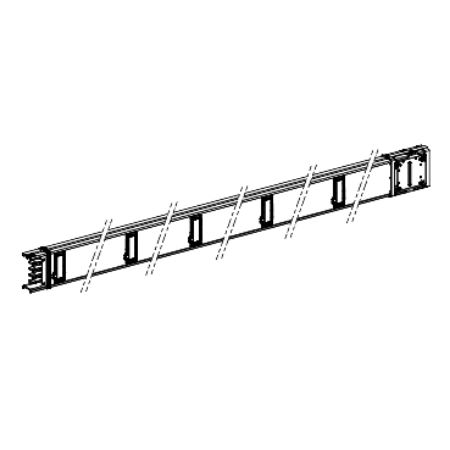

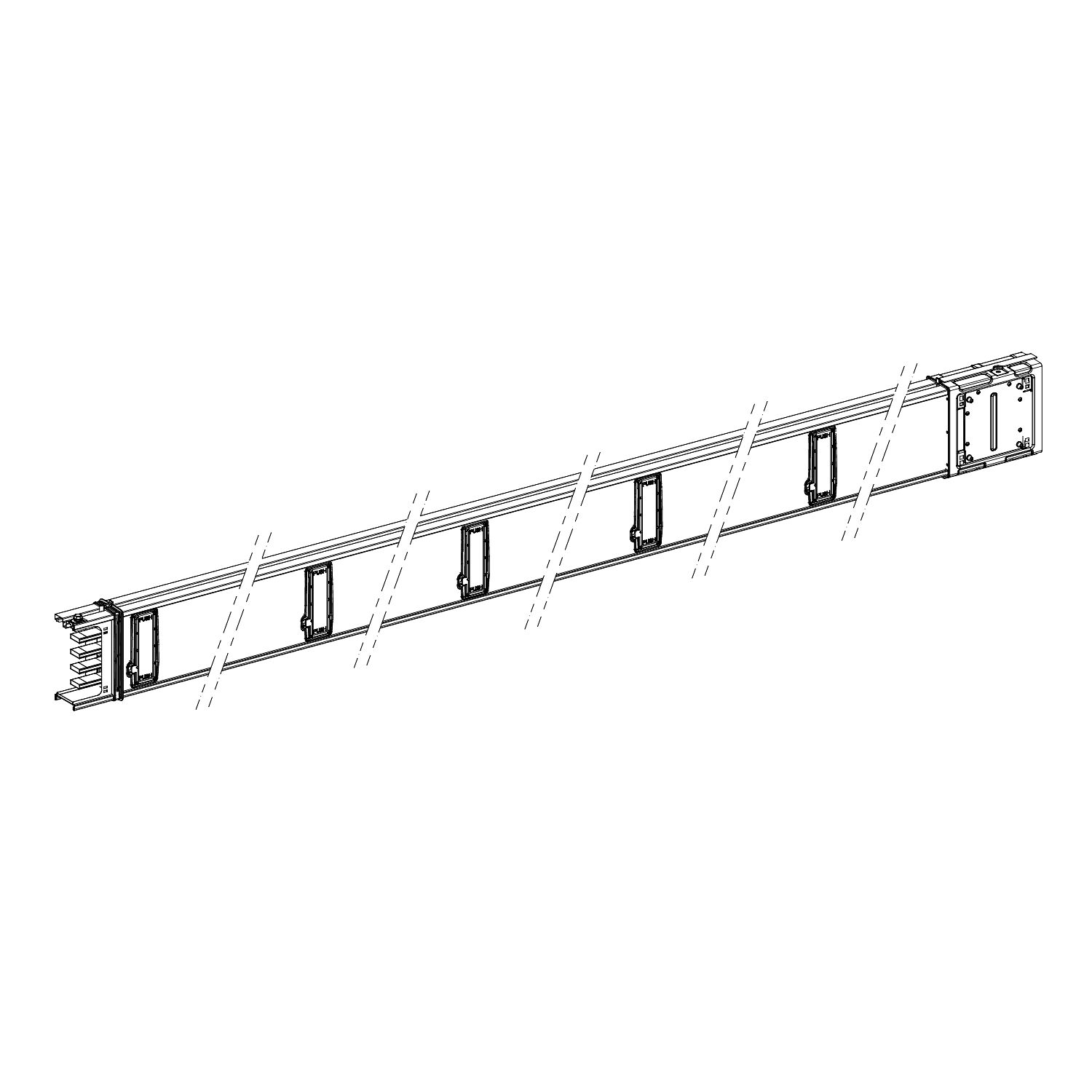

Picture of Horizontal distribution length, Canalis KSA160, aluminium, 160A, fixed length 5m, 10 outlets, 3L+N+PE, white RAL9001
SKU:

KSA160ED45010

Horizontal distribution length, Canalis KSA160, aluminium, 160A, fixed length 5m, 10 outlets, 3L+N+PE, white RAL9001

$1,430.88 INC GST
Available for Shipping : 06-Apr-2026
Horizontal distribution length, Canalis KSA160, aluminium, 160A, fixed length 5m, 10 outlets, 3L+N+PE, white RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Apr-2026
Environmental Disclosure
Instruction sheet
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
Canalis busbar trunking for KSA. It's applied to medium power distribution with lubricated sliding contact. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 160A at 35 ℃. Mounted by screws with up neutral position. Distribution length busbar whose material is aluminium and trunking polarity is 3L + N + PE. Designed with 10 tap-off outlets. It provides 0.41 µT radiated magnetic field. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Length 5-5 m
Device short name KSA
Colour white (RAL 9001)
Number of tap-off outlets 10
Busbar description horizontal distribution length
Mounting mode by screws
[Ie] rated operational current 160 A at 35 °C
Dimension type fix
Busbar trunking polarity 3L + N + PE
IP degree of protection IP55 conforming to IEC 60529
Range Canalis
Material aluminium
Product or component type busbar trunking
Product compatibility Canalis KSA busbar trunking 100-250 A
Offer type classic
Complementary
[Ipk] rated peak withstand current 22 kA
Number of poles 4
[Ue] rated operational voltage 230...690 V
Width 54 mm
Mounting position horizontal
Neutral position up
Electrical connection lubricated sliding contact
Thermal stress limit 202000 kA².s
Maximum voltage drop <0.056 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.061 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.066 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.067 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight 21.4 kg
Radiated magnetic field 0.41 µT
Tap-off unit interval 1000 mm
[Ui] rated insulation voltage 690 V
Linear resistance Rb1 1.46 mΩ/m 35 °C at Inc with impedance method L - PE 50/60 Hz, Rb1 1.57 mΩ/m 35 °C at Inc with impedance method L-N 50/60 Hz, Rb1 1.55 mΩ/m 35 °C at Inc with impedance method L - L 50/60 Hz, Rb0 1.3 mΩ/m 20 °C at Inc with impedance method L - PE 50/60 Hz, Rb0 1.21 mΩ/m 20 °C at Inc with impedance method L-N 50/60 Hz, Rb0 1.15 mΩ/m 20 °C at Inc with impedance method L - L 50/60 Hz, Z0 2.22 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, X0 0.93 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, R0 2.01 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, Z0 2.5 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, R0 2.32 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, Z1 0.79 mΩ/m 35 °C at Inc L 50/60 Hz, R1 0.77 mΩ/m 35 °C at Inc L 50/60 Hz, R20 0.55 mΩ/m 20 °C L 50/60 Hz, Xb 0.31 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - L 50/60 Hz, X0 0.95 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz,  0.42 mΩ/m 20 °C PE 50/60 Hz, X1 0.15 mΩ/m 35 °C at Inc L 50/60 Hz
Standards IEC 61439-6, IEC 61439-1
THDI 33-100 % 100 A, 15-33 % 125 A, 0-15 % 160 A
[Uimp] rated impulse withstand voltage 8 kV
Height 146-146 mm
Network frequency 50/60 Hz
[Icw] rated short-time withstand current 4.45 kA
Environment
Ambient air temperature for operation 55-55 °C (with derating factor), 35-35 °C (without derating)
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.300 cm
Package 1 Width 16.700 cm
Package 1 Length 511.000 cm
Package 1 Weight 20.000 kg
Unit Type of Package 2 2
Number of Units in Package 2 20
Package 2 Height 47.500 cm
Package 2 Width 64.000 cm
Package 2 Length 520.000 cm
Package 2 Weight 422.000 kg
