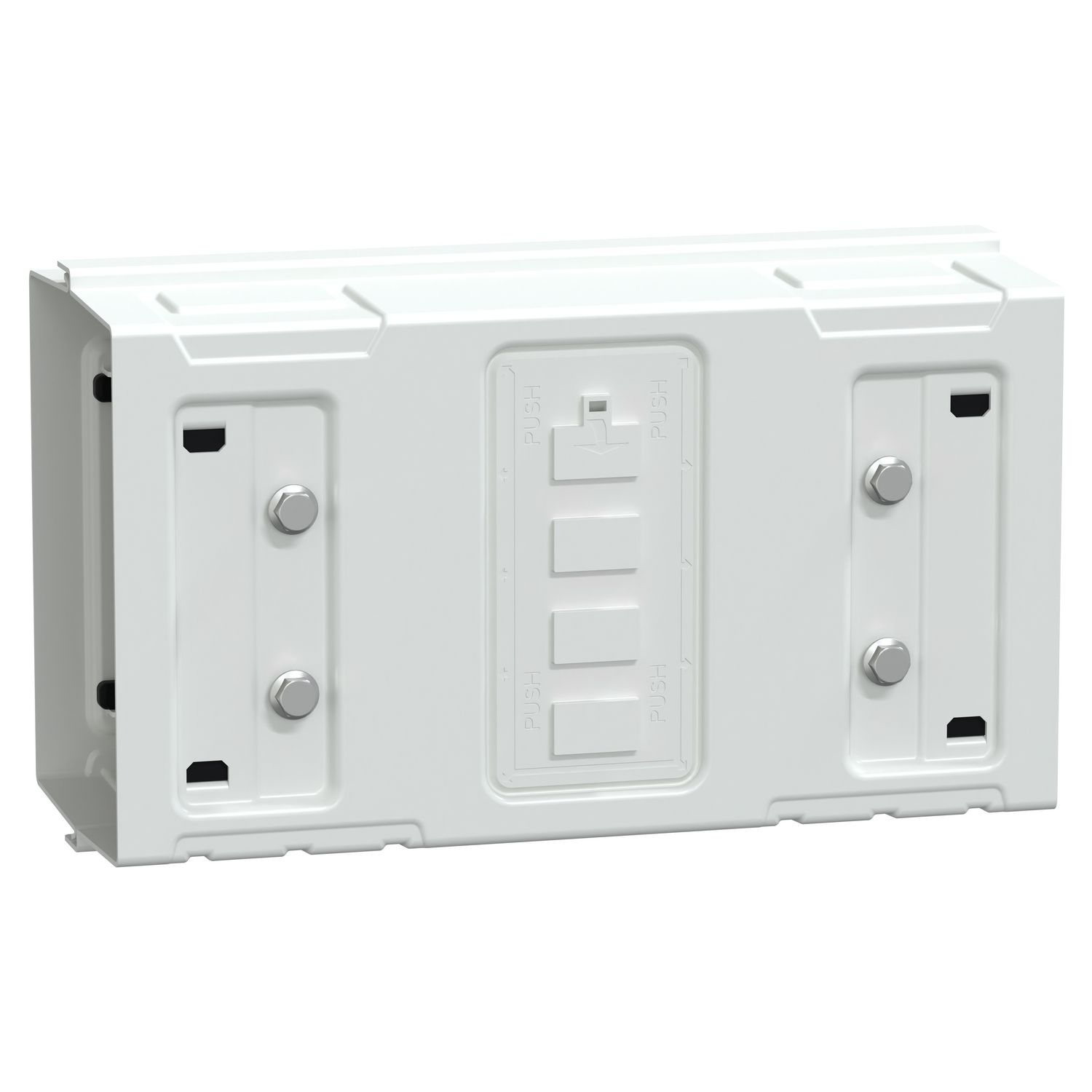

Picture of Jointing unit, Canalis KS 500A to 1000A, 3L+N+PE, 1000A, IP55, white RAL9001
SKU:

KSA1000ZJ4

Jointing unit, Canalis KS 500A to 1000A, 3L+N+PE, 1000A, IP55, white RAL9001

$1,364.88 INC GST
Available for Shipping : 26-Mar-2026
Jointing unit, Canalis KS 500A to 1000A, 3L+N+PE, 1000A, IP55, white RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 26-Mar-2026
Declaration of conformity
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
Canalis electrical and mechanical jointing for KSA. It's applied to medium power distribution. The rated operational voltage is from 230VAC to 690VAC. The rated operational current is 800A and 1000A. It belongs to spare part with white RAL 9001 surface treatment. Designed with 1 circuit allowing. It provides IP55 protection conforming to IEC 60529. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Product compatibility KS
Colour white (RAL 9001)
[Ie] rated operational current 800 A, 1000 A
Range Canalis
Product name KS
Product or component type electrical and mechanical jointing
Offer type spare part
Range of product Canalis
Complementary
[Ue] rated operational voltage 230...690 V
Device application medium power distribution
Depth 117 mm
Width 276 mm
Busbar trunking polarity 3L + N + PE
Control type without
Net weight 4.5 kg
Number of circuits 1
Height 167 mm
Environment
IP degree of protection IP55 conforming to IEC 60529
Standards IEC 60439-2, IEC 61439-6
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.0 cm
Package 1 Width 19.0 cm
Package 1 Length 28.5 cm
Package 1 Weight 4.696 kg
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 74.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 155.0 kg
