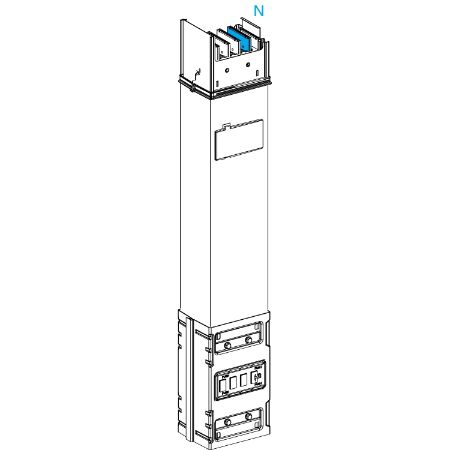

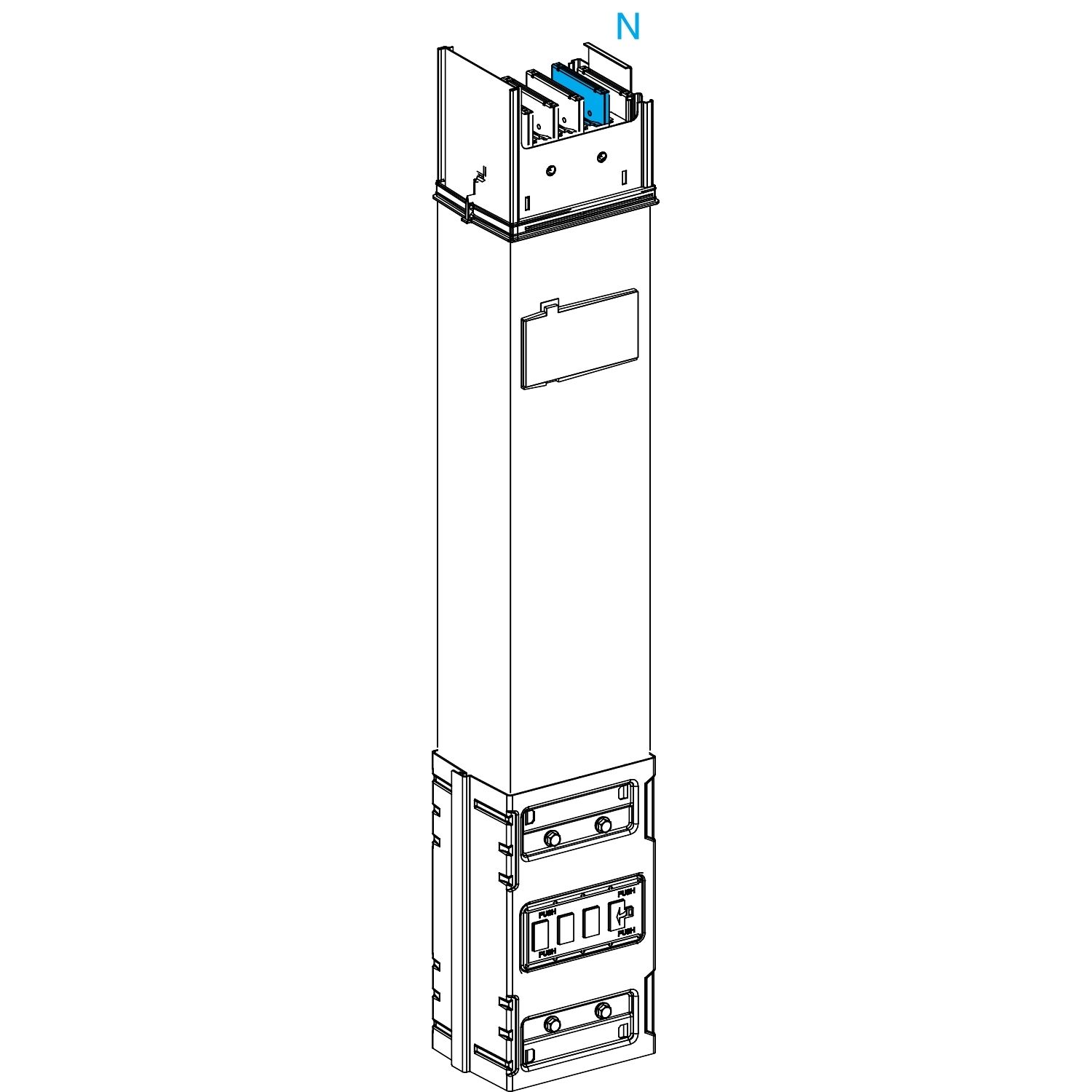

Picture of Vertical distribution length, Canalis KSA1000, aluminium, 800/1000A, fixed length 0.8m, 1 outlet, 3L+N+PE, white RAL9001
SKU:

KSA1000ED4081

Vertical distribution length, Canalis KSA1000, aluminium, 800/1000A, fixed length 0.8m, 1 outlet, 3L+N+PE, white RAL9001

$2,127.84 INC GST
Available for Shipping : 14-Apr-2026
Vertical distribution length, Canalis KSA1000, aluminium, 800/1000A, fixed length 0.8m, 1 outlet, 3L+N+PE, white RAL9001
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Apr-2026
Environmental Disclosure
Instruction sheet
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Length 0.8-0.8 m
Device short name KSA
Colour white (RAL 9001)
Number of tap-off outlets 1
Busbar description vertical distribution length
Mounting mode by screws
[Ie] rated operational current 1000 A at 35 °C
Dimension type fix
Busbar trunking polarity 3L + N + PE
IP degree of protection IP55 conforming to IEC 60529
Range Canalis
Material aluminium
Product or component type busbar trunking
Product compatibility Canalis KSA busbar trunking 500-1000 A
Offer type rising main
Complementary
[Ipk] rated peak withstand current 78.7 kA
Number of poles 4
[Ue] rated operational voltage 230...690 V
Width 113 mm
Mounting position vertical
Neutral position right
Electrical connection lubricated sliding contact
Thermal stress limit 1758000 kA².s
Maximum voltage drop <0.008 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.007 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.007 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.005 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight 16.8 kg
Radiated magnetic field 1.27 µT
[Ui] rated insulation voltage 690 V
Linear resistance Xb 0.22 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - PE 50/60 Hz, Xb 0.17 mΩ/m 35 °C at Inc and 50 Hz with impedance method L-N 50/60 Hz, Xb 0.12 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - L 50/60 Hz, Rb1 0.37 mΩ/m 35 °C at Inc with impedance method L - PE 50/60 Hz, Rb1 0.28 mΩ/m 35 °C at Inc with impedance method L-N 50/60 Hz, Rb1 0.21 mΩ/m 35 °C at Inc with impedance method L - L 50/60 Hz, Rb0 0.26 mΩ/m 20 °C at Inc with impedance method L - PE 50/60 Hz, Rb0 0.2 mΩ/m 20 °C at Inc with impedance method L-N 50/60 Hz, Rb0 0.15 mΩ/m 20 °C at Inc with impedance method L - L 50/60 Hz, Z0 0.51 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, X0 0.4 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, R0 0.32 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, Z0 0.36 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, X0 0.27 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, R0 0.23 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz,  0.06 mΩ/m 20 °C PE 50/60 Hz, Z1 0.09 mΩ/m 35 °C at Inc L 50/60 Hz, X1 0.06 mΩ/m 35 °C at Inc L 50/60 Hz, R1 0.06 mΩ/m 35 °C at Inc L 50/60 Hz, R20 0.04 mΩ/m 20 °C L 50/60 Hz
Standards IEC 61439-6, IEC 61439-1
THDI 33-100 % 630 A, 15-33 % 800 A, 0-15 % 1000 A
[Uimp] rated impulse withstand voltage 8 kV
Height 146-146 mm
Network frequency 50/60 Hz
[Icw] rated short-time withstand current 37.4 kA
Environment
Ambient air temperature for operation 55-55 °C (with derating factor), 35-35 °C (without derating)
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.500 cm
Package 1 Width 17.000 cm
Package 1 Length 103.000 cm
Package 1 Weight 19.480 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 150.000 cm
Package 2 Width 200.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 89.920 kg
