SKU:

KNT100ZJ4

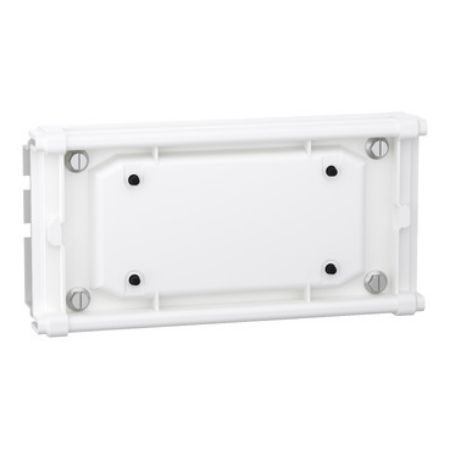

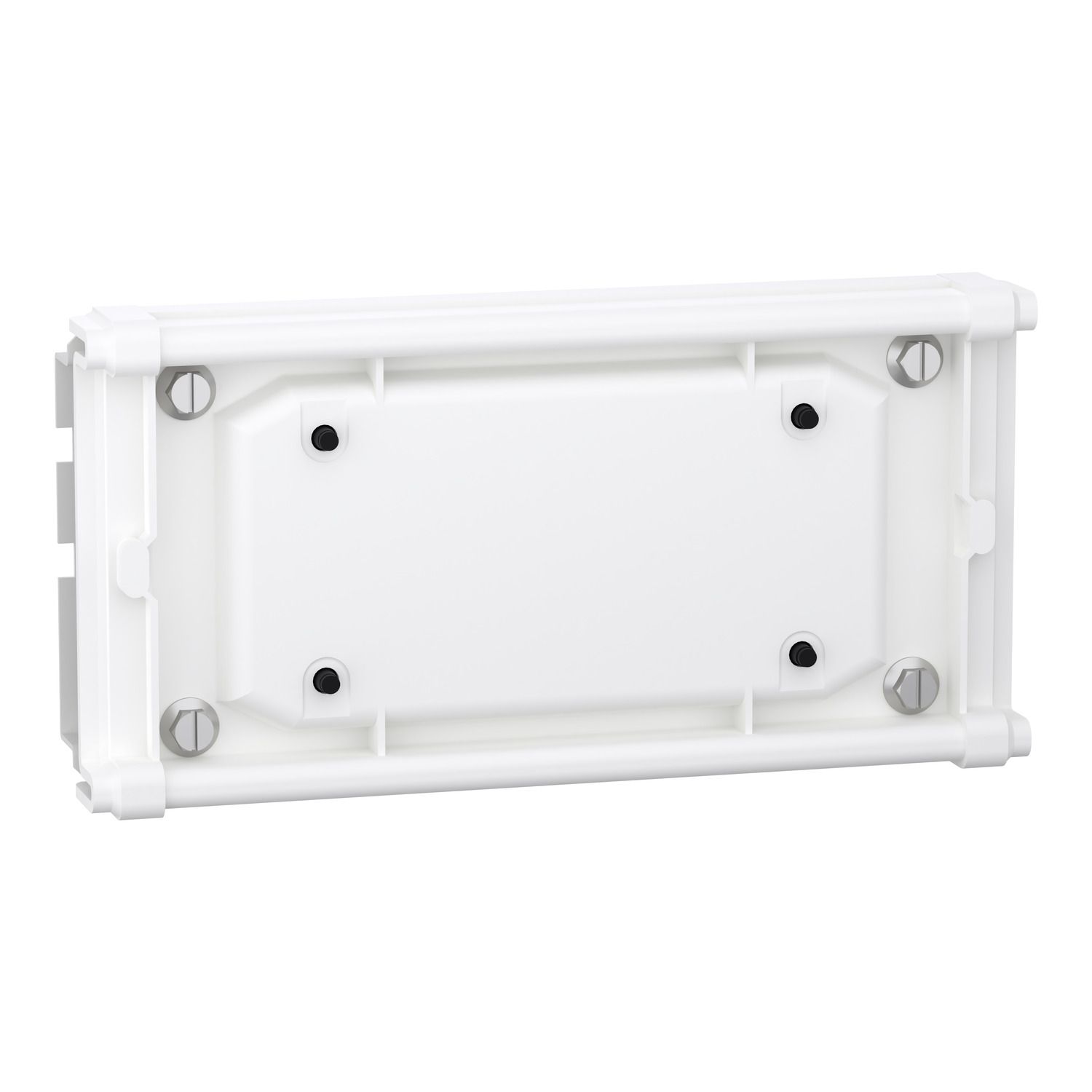

Jointing unit, Canalis KN, 100A, with built in transmission bus, spare part

$318.12 INC GST

Qty:

Available for Shipping : 30-Mar-2026

Jointing unit, Canalis KN, 100A, with built in transmission bus, spare part

Manufacturer: Schneider Electric

Delivery date: 30-Mar-2026

Instruction sheet

Environmental Disclosure

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Product compatibility	KN
Colour	white (RAL 9001)
[Ie] rated operational current	160 A, 100 A
Range	Canalis
Product name	KN
Product or component type	electrical and mechanical jointing
Offer type	spare part
Range of product	Canalis
Complementary
[Ue] rated operational voltage	230...500 V
Device application	low power distribution
Depth	38 mm
Width	200 mm
Control type	communicating
Net weight	600 g
Number of circuits	1
Height	100 mm
Environment
IP degree of protection	IP55 conforming to IEC 60529
Standards	IEC 60439-2, IEC 61439-6
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.500 cm
Package 1 Width	10.000 cm
Package 1 Length	20.000 cm
Package 1 Weight	528.900 g
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	29.000 cm
Package 2 Width	60.000 cm
Package 2 Length	80.000 cm
Package 2 Weight	13.000 kg
Unit Type of Package 3	3
Number of Units in Package 3	15
Package 3 Height	16.000 cm
Package 3 Width	31.000 cm
Package 3 Length	41.000 cm
Package 3 Weight	8.176 kg
