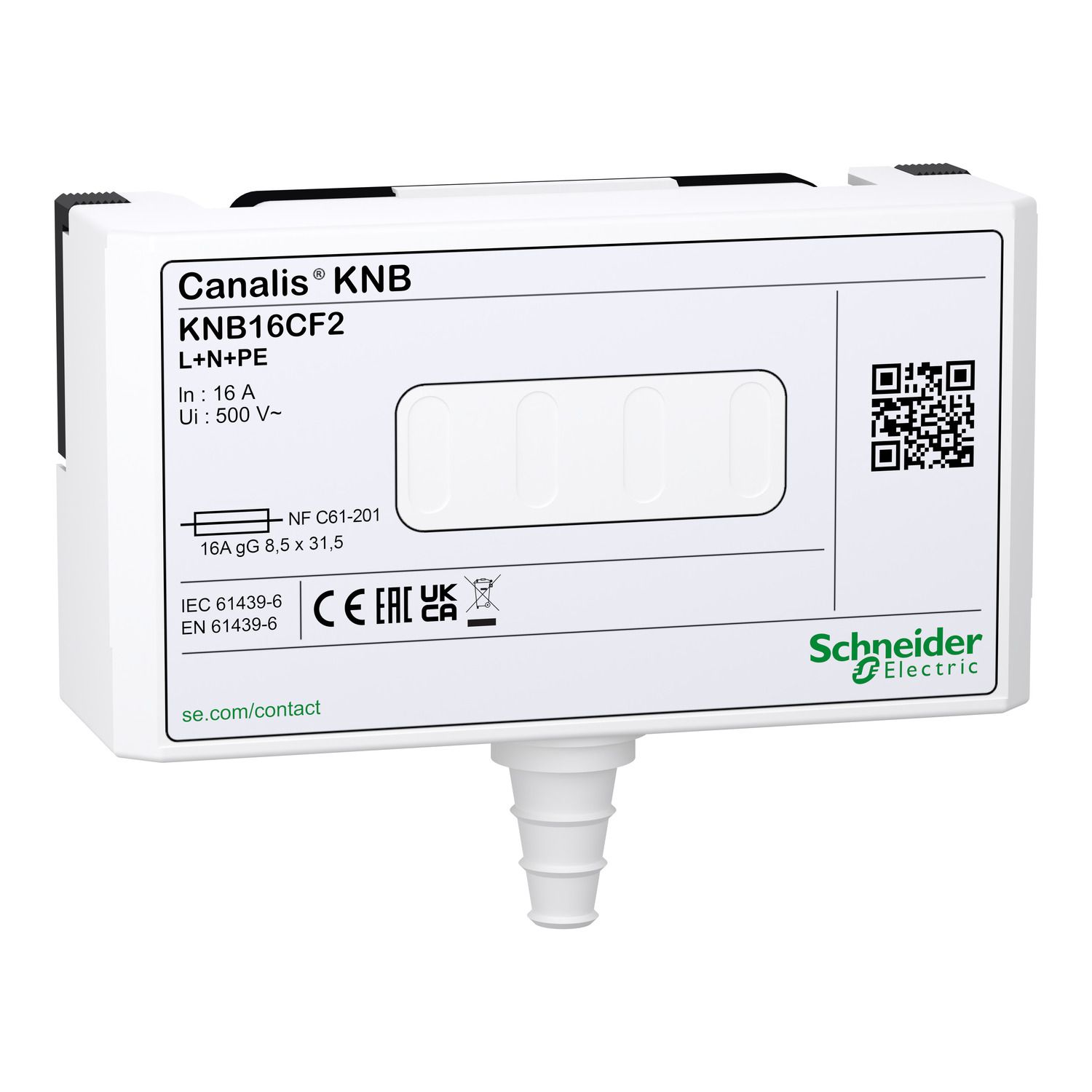

Picture of Tap off unit, Canalis KN, for NF cylindrical fuses, single phase, 16A, L+N+PE, fuses not provided, IP41
SKU:

KNB16CF2

Tap off unit, Canalis KN, for NF cylindrical fuses, single phase, 16A, L+N+PE, fuses not provided, IP41

$173.71 INC GST
Available for Shipping : 31-Mar-2026
Tap off unit, Canalis KN, for NF cylindrical fuses, single phase, 16A, L+N+PE, fuses not provided, IP41
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 31-Mar-2026
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
Canalis tap off unit for KN. It is compatibility with Canalis KN busbar trunking with plug-in outlets. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. The rated operational current is 16A at 35 ℃. It provides fuse isolator protection conforming to NF standard. Mounting by plug-in with phase selection. The tap-off unit polarity is L+N+PE, disconnection by drawing out. Door/cover could be open front side. It provides white RAL 9001 surface treatment. Cable clamp could be provided, but fuse to be ordered separately. It provides IP55 protection conforming to EN/IEC 60529. IK06 conforms to EN/IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Fuse type fuse isolator: for gG cylindrical fuse, size 8.5 x 31.5 mm - 16-16 A conforming to NF,  fuse isolator: for aM cylindrical fuse, size 8.5 x 31.5 mm - 16-16 A conforming to NF
Colour white (RAL 9001)
Tap-off unit polarity L+N+PE
Product compatibility Canalis KN busbar trunkingplug-in
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 16-16 A at 35 °C
Range compatibility Canalis KN busbar trunking
Provided equipment cable clamp,  fuse to be ordered separately
Range of product Canalis
Mounting mode plug-in with phase selection
Complementary
Device application low power distribution
[Ui] rated insulation voltage 500 V depending on protective device
Depth 50 mm
Width 72 mm
[Ue] rated operational voltage 230...500 V depending on protective device
Door opening side front
Function available fuse isolator
Electrical connection cable clamp terminal 6-6 mm² rigid, cable clamp terminal 4-4 mm² flexible
Tap-off unit disconnection mode By drawing out
Net weight 0.16 kg
Standards IEC 61439-6, IEC 61439-1
[Uimp] rated impulse withstand voltage 4.6 kV
Height 172 mm
Network frequency 50/60 Hz
Environment
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.100 cm
Package 1 Width 7.400 cm
Package 1 Length 13.500 cm
Package 1 Weight 174.000 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 44.500 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 9.100 kg
