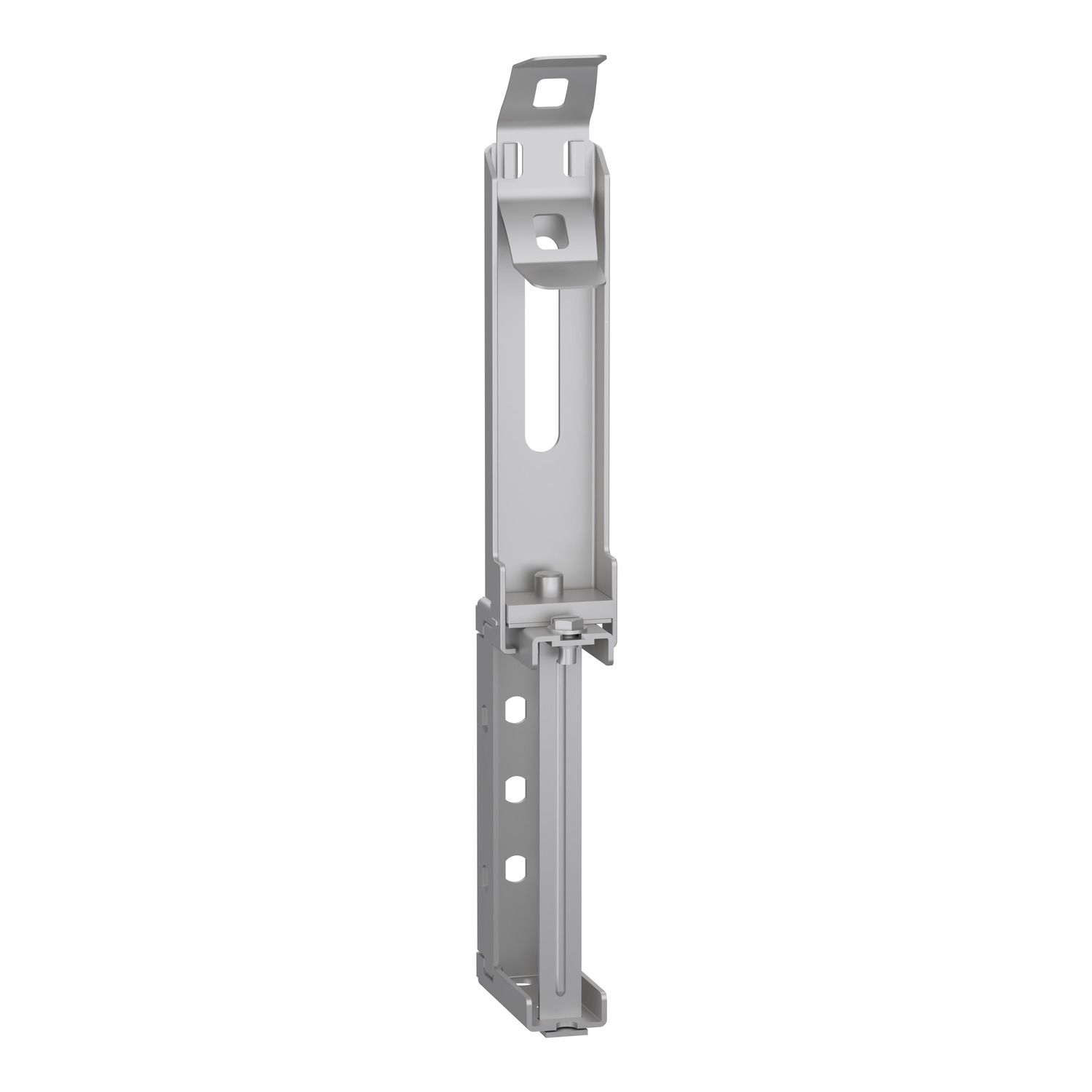

Picture of Spring fixing brackets, Canalis KN, 40A to 160A, suspended on M8 rod, maximum load 100kg
SKU:

KNB160ZFPU

Spring fixing brackets, Canalis KN, 40A to 160A, suspended on M8 rod, maximum load 100kg

$39.86 INC GST
Available for Shipping : 08-Dec-2025
Spring fixing brackets, Canalis KN, 40A to 160A, suspended on M8 rod, maximum load 100kg
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This product is an spring fixing bracket system for Canalis KN offer. It is used for attachment of the busbar trunking and to the structure of the building. It is a suspended mounting system on M8 threaded rods. The bracket is attached to the treaded rod by the spring mechanism, without nuts or bolts, and does not require any tool. The maximum load is 100kg. Sold in lots of 10 parts. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Green Premium ecolabel (RoHS, REACh, Product Environmental Profile, End of Life Instructions.).

Products specifications

Attribute name Attribute value
Main
Product compatibility KN
Quantity per set set of 10
Maximum load 100 kg
Fixing device mounting suspended on threaded rod
Range Canalis
Product name KN
Product or component type fixing bracket
Range of product Canalis
Complementary
Depth 61 mm
Width 33 mm
Net weight 260 g
Accessory / separate part category fixing accessory
Height 272 mm
Environment
Standards IEC 60439-2, IEC 61439-6
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.900 cm
Package 1 Width 3.300 cm
Package 1 Length 6.000 cm
Package 1 Weight 243.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 13.000 cm
Package 2 Width 20.000 cm
Package 2 Length 29.000 cm
Package 2 Weight 2.594 kg
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 108.760 kg

Related products

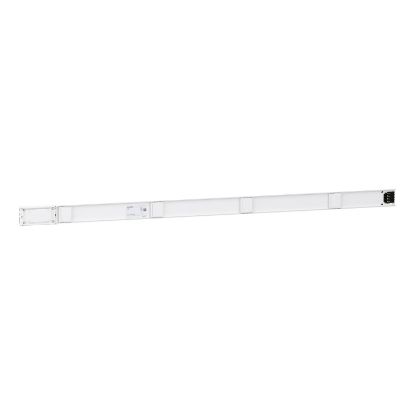

Picture of Straight distribution length, Canalis KN, additional, aluminium, 100A, 3L+N+PE, fixed length 2m, 4 outlets, RAL9001

Straight distribution length, Canalis KN, additional, aluminium, 100A, 3L+N+PE, fixed length 2m, 4 outlets, RAL9001

KNA100ED4204
$402.60 INC GST
View Detail

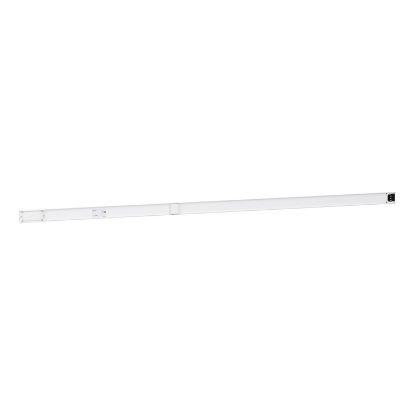

Picture of Straight distribution length, Canalis KN, additional, aluminium, 100A, 3L+N+PE, fixed length 3m, 1 outlet, RAL9001

Straight distribution length, Canalis KN, additional, aluminium, 100A, 3L+N+PE, fixed length 3m, 1 outlet, RAL9001

KNA100ED4301
$453.42 INC GST
View Detail

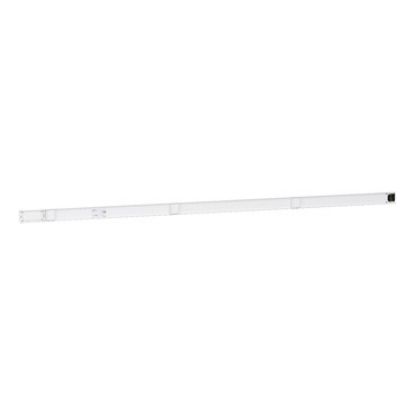

Picture of Straight distribution length, Canalis KN, standard, aluminium, 100A, 3L+N+PE, fixed length 3m, 3 outlets, RAL9001

Straight distribution length, Canalis KN, standard, aluminium, 100A, 3L+N+PE, fixed length 3m, 3 outlets, RAL9001

KNA100ED4303
$475.07 INC GST
View Detail
Picture of Straight distribution length, Canalis KN, standard, aluminium, 100A, 3L+N+PE, fixed length 3m, 6 outlets, RAL9001

Straight distribution length, Canalis KN, standard, aluminium, 100A, 3L+N+PE, fixed length 3m, 6 outlets, RAL9001

KNA100ED4306
$609.84 INC GST
View Detail
Picture of Straight distribution length, Canalis KN, additional, aluminium, 160A, 3L+N+PE, fixed length 2m, 4 outlets, RAL9001

Straight distribution length, Canalis KN, additional, aluminium, 160A, 3L+N+PE, fixed length 2m, 4 outlets, RAL9001

KNA160ED4204
$589.38 INC GST
View Detail

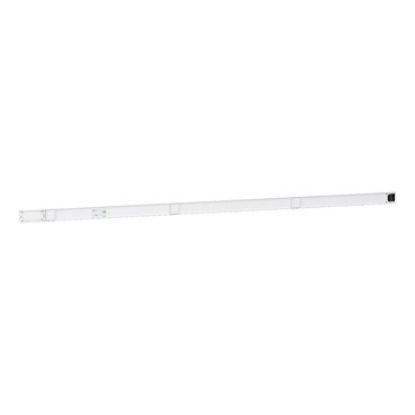

Picture of Straight distribution length, Canalis KN, standard, aluminium, 160A, 3L+N+PE, fixed length 3m, 3 outlets, RAL9001

Straight distribution length, Canalis KN, standard, aluminium, 160A, 3L+N+PE, fixed length 3m, 3 outlets, RAL9001

KNA160ED4303
$731.28 INC GST
View Detail

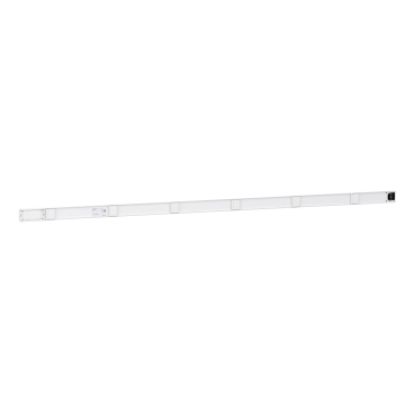

Picture of Straight distribution length, Canalis KN, standard, aluminium, 160A, 3L+N+PE, fixed length 3m, 6 outlets, RAL9001
